7-10

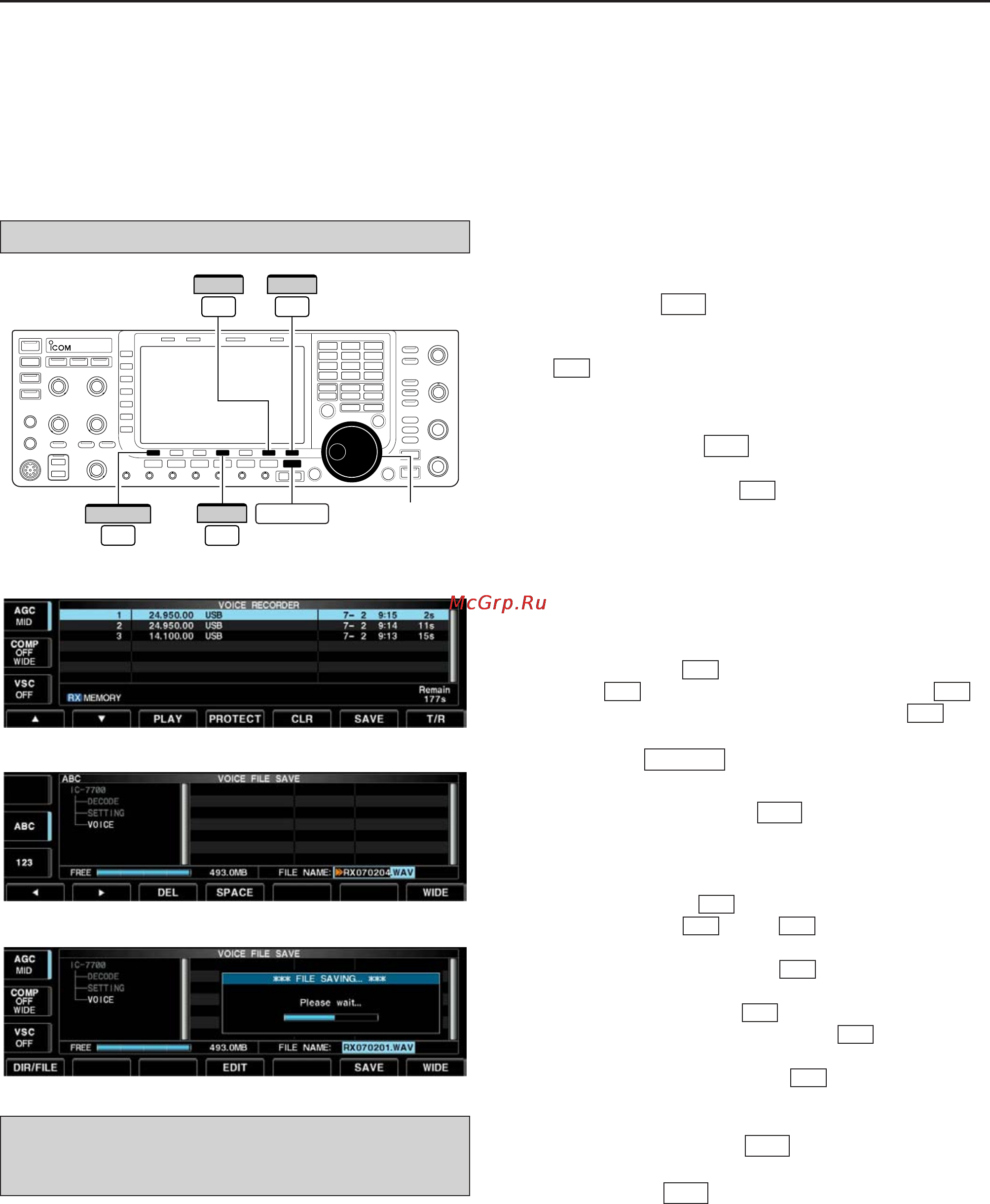

■ Saving a voice message into the USB-Memory
DD
Saving the received audio memory
The recorded RX memory contents can be saved into
the USB-Memory.
q During voice recorder RX memory screen display,
push [SAVE] to select voice file save screen.
• Previously selected screen, TX or RX memory, is dis-
played. If the TX message (T1–T4) appears, push [T/R]
to select RX message.
w Change the following conditions if desired.
• File name:
z Push [EDIT] to select file name edit con-
dition.
• Push [DIR/FILE] several times to select the
file name, if necessary.
x Push [ABC] (MF6)
, [123] (MF7) or [Symbol]
(MF7) to select the character group, then ro-
tate the main dial to select the character.
• [ABC] (MF6) : Ato Z (capital letters); [123] (MF7): 0
to 9 (numerals); [Symbol]
(MF7): ! # $ % & ‘ ` ^ – (
) { } _
~
@ can be selected.
• Push [Ω] to move the cursor left, push [≈]
to move the cursor right, push [DEL] to
delete a character and push [SPACE] to in-
sert a space.
c Push to set the file name.
•Saving location
z Push [DIR/FILE] to select tree view
screen.
x Select the desired directory or folder in the
USB-Memory.
• Push [Ω≈] to select the upper directory.
• Push [Y] or [Z] to select folder in the
same directory.
• Push and hold [Ω≈] for 1 sec. to select a
folder in the directory.
• Push [REN/DEL] to rename the folder.
• Push and hold [REN/DEL] for 1 sec. to
delete the folder.
• Push and hold [MAKE] for 1 sec. to making
a new folder. (Edit the name with the same man-
ner as the “• File name” above.)
c Push [DIR/FILE] twice to select the file
name.
e Push [SAVE] .
• After the saving is completed, return to voice recorder
RX memory screen automatically.
DD
Saving the TX memory
The TX memory contents can also be saved into the
USB-Memory. However, the contents are saved with
the message list, set mode conditions, etc. at the same
time. See page 12-22 for details.
F-6
F-1
F-6
F-5
F-5
F-4
F-3F-2
F-4
F-1
EXIT/SET
F-4
F-3F-2
F-1
F-1
F-4
F-7
F-6
Main dial
DIR/FILE
EXIT/SET
F-1
F-7
WIDE
F-6
SAVE
F-4
EDIT
7
VOICE RECORDER FUNCTIONS
•Voice recorder RX memory screen
•Voice file save screen— file name edit
• While saving
The USB-Memory is not supplied by Icom.
When a PC keyboard is connected to [USB] connec-
tor on the front panel, the file name can also be
edited from the keyboard.
