10-3

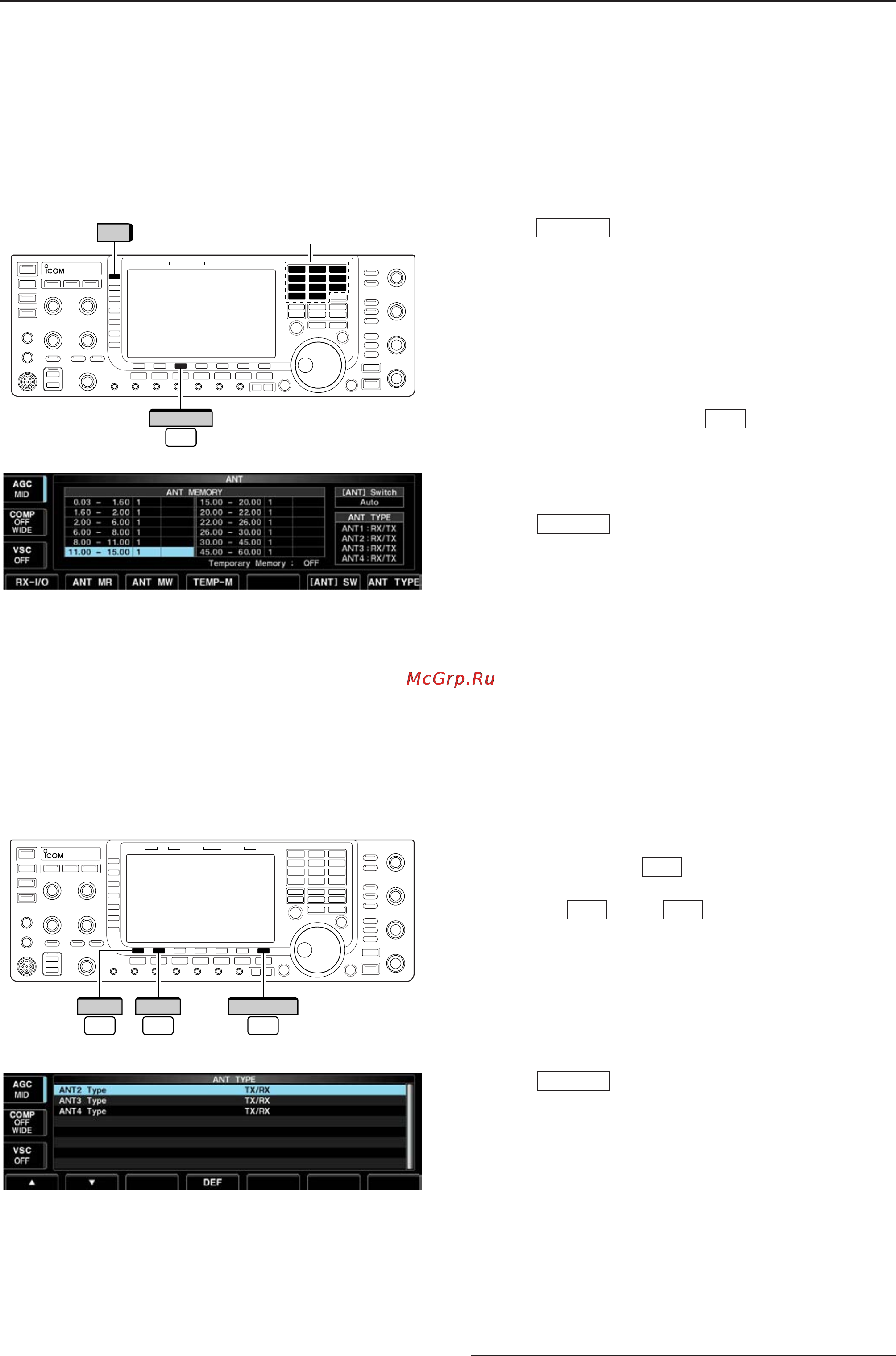

■ Antenna memory settings
This function stores the antenna connector number for
each frequency band.
q Push several times to close multi-function
screen, if necessary.
w Push and hold [ANT]
(MF1) for 1 sec. to select an-
tenna set screen.
e Select the desired frequency band with a band key.
r Push [ANT] (MF1) several times to select the desired
antenna number that you want to set for the se-
lected frequency band.
•“★” appears.
t Push and hold [ANT MW] for 1 sec. to store
the antenna selection into the antenna memory.
•“★” disappears.
y Repeat the steps e to t to store the antenna se-
lection for another frequency bands, if desired.
u Push to exit antenna set screen.
DD
Antenna type selection
When no antenna is connected to [ANT2], [ANT3],
and/or [ANT4], these antenna connectors can be de-
activated — deleting the antenna number from the
available selections. This prevents the transceiver from
accidentally transmitting into an unused antenna con-
nector. In addition, a receive-only antenna can be
specified for [ANT4].
q Select the antenna set screen as described above.
w Push [ANT TYPE] to select antenna type set
screen.
e Push [Y] or [Z] to select the desired an-
tenna.
r Rotate the main dial to select the desired antenna
condition from TX/RX, RX (ANT4 only) and OFF.
• TX/RX : Select when an antenna is connected.
• OFF : Select when no antenna is connected.
•RX: Select when a receive only antenna is
connected.
(available for the [ANT4] only)
t Push to exit antenna type set screen.
✔
For your information
The “OFF” antennas cannot be selected with [ANT]
(MF1) switch operation, or with the antenna memory
setting.
When “RX” is selected for [ANT4], “1/R,” “2/R” and
“3/R” selections will be added for the selection for both
[ANT] (MF1) switch operation and the antenna memory
setting. In these selections, the antenna connected to
[ANT1], [ANT2] and/or [ANT3] will be used for trans-
mission and the antenna connected to [ANT4] will be
used for reception.
