15-4

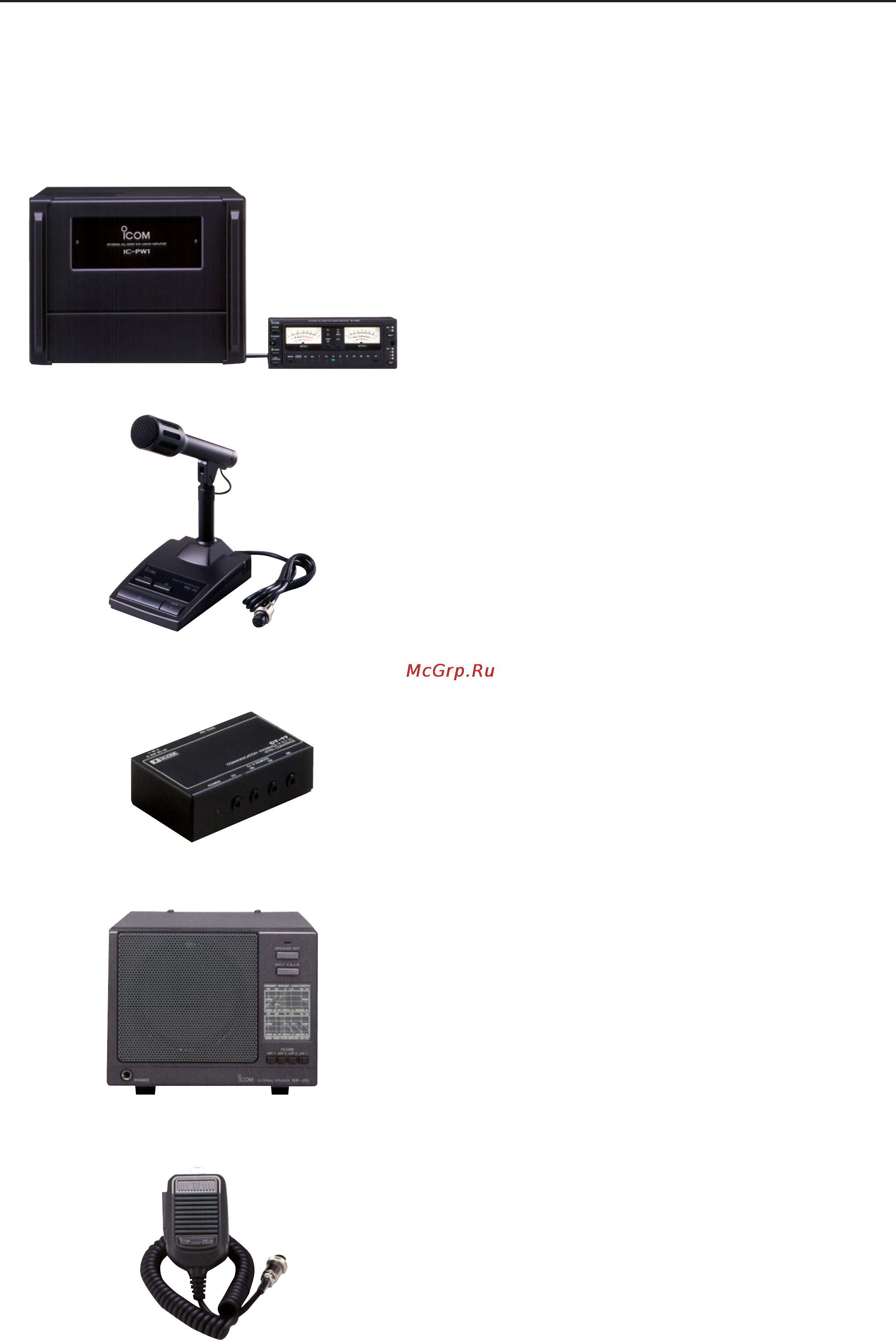

■ Options
• IC-PW1/EURO HF
/50
MH
z
ALL BAND
1k
W LINEAR AMPLIFIER
Full-duty-cycle 1 kW linear amplifier including an auto-
matic antenna tuner. Has automatic tuning and band
selection capability when used with an Icom trans-
ceiver. Full break-in (QSK) operation. The
amplifier/power supply unit and the remote control unit
can be separately installed.
• SM-20 DESKTOP MICROPHONE
Unidirectional, electret microphone for base station
operation. Includes [UP]/[DOWN] switches, low (bass)
cut switch and mic gain control.
• CT-17 CI-V LEVEL CONVERTER
This unit converts signal levels from RS-232C data to
the serial CI-V data. This can be used for remote
transceiver control using PC. You can change fre-
quencies, operating mode, memory channels, etc.
(software is not included)
• SP-20 EXTERNAL SPEAKER
4 audio filters; headphone jack; can connect to 2
transceivers.
• Input impedance : 8 Ω
• Max. input power : 5 W
• HM-36 HAND MICROPHONE
Hand microphone equipped with [UP]/[DOWN] switch-
es.
15
SPECIFICATIONS AND OPTIONS
