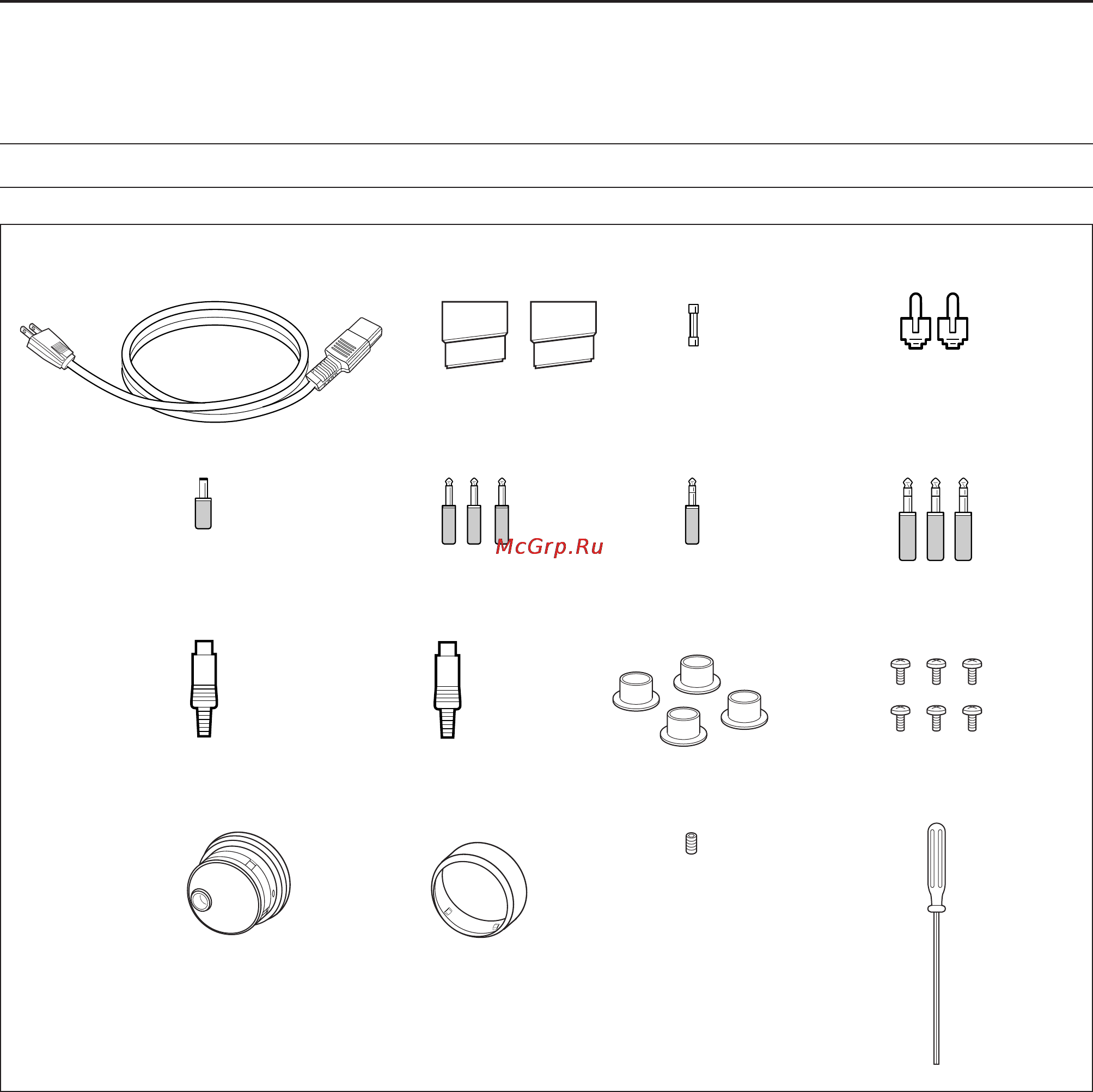

Icom IC-7700 [4/216] Supplied accessories
![Icom IC-7700 [4/216] Supplied accessories](/views2/1074139/page4/bg4.png)
q AC power cable* ………………………………… 1
w Feet …………………………………………… 1 pair
e Spare fuse (FGB 2 A) …………………………… 1
r RCA plugs ………………………………………… 2
t DC plug …………………………………………… 1
y 2-conductor
1
⁄8″ plugs …………………………… 3
u 3-conductor
1
⁄8″ plugs …………………………… 2
i 3-conductor
1
⁄4″ plugs …………………………… 3
o ACC plugs (7-pin) ………………………………… 1
!0 ACC plugs (8-pin) ………………………………… 1
!1 Antenna connector caps ………………………… 4
!2 Side screws (without rack mounting handle)
†
…6
!3 Main dial
‡
…………………………………………… 1
!4 Rubber cover for Main dial
‡
……………………… 1
!5 Main dial screw
‡
…………………………………… 1
!6 Hexagonal wrench
‡
………………………………… 1
*May differ from that shown according to version.
†
These screws are used when removing rack mounting han-
dles. See p.2-3 for rack mounting handle detachment de-
tails.
‡
See p.2-2 for main dial attachment details.
iii
SUPPLIED ACCESSORIES
q
!0 !1 !2
!3 !4 !5 !56
yui
o
ewr
t
