9-4

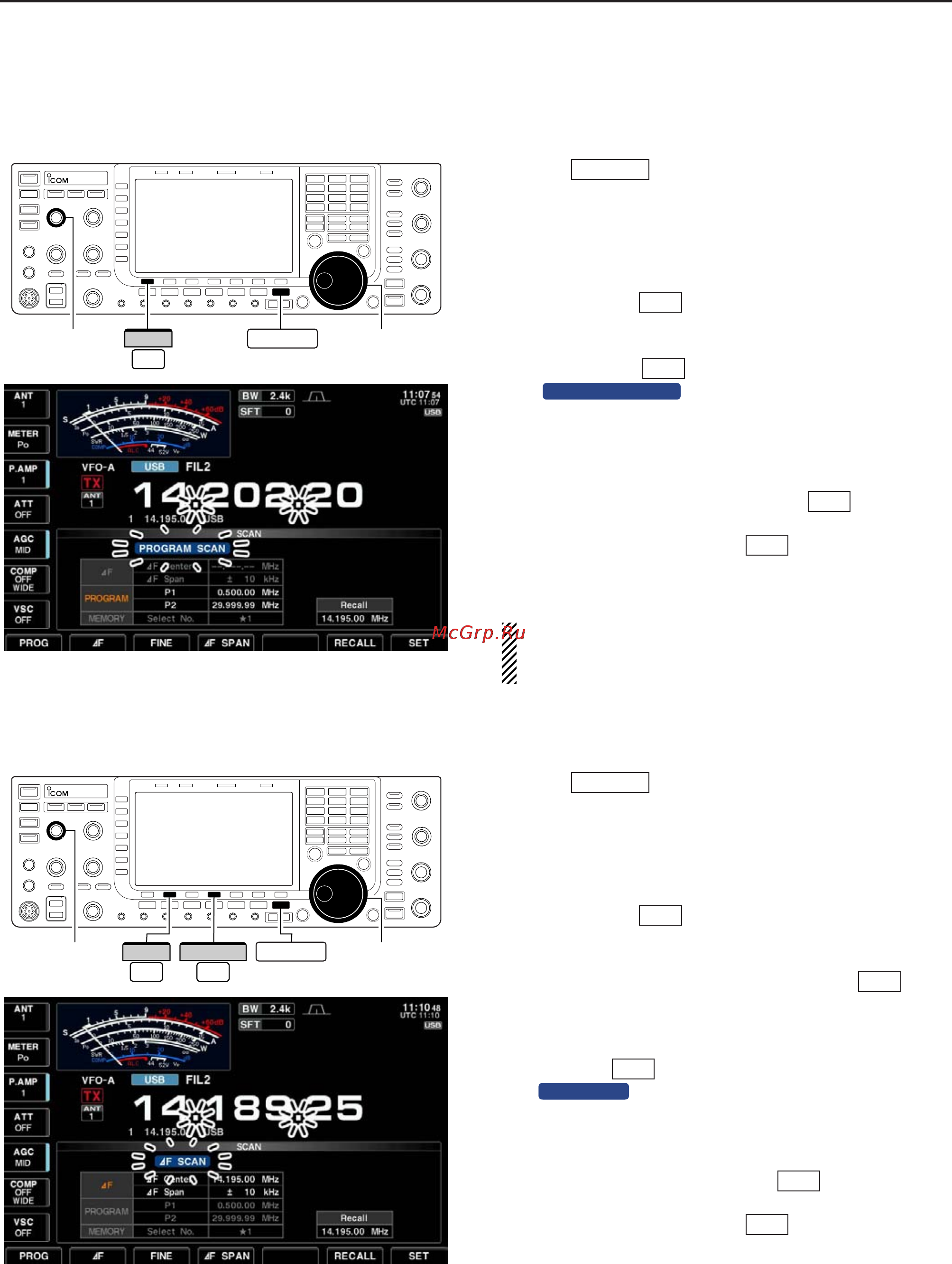

■ Programmed scan operation
q Push several times to close a multi-func-
tion screen, if necessary.
w Select VFO mode.
e Select the desired operating mode.
• The operating mode can also be changed while scan-
ning.
r Push [SCAN] to select the scan screen.
t Set [SQL] open or closed.
• See page 9-2 for squelch condition.
y Push [PROG] to start the programmed scan.
•“ ” and decimal points blink while
scanning.
u When the scan detects a signal, scan stops, pauses
or ignores it depending on the resume setting and
the squelch status.
i To cancel the scan, push [PROG] .
• Rotating the main dial also cancels the scan.
o Push and hold [RECALL] for 1 sec. to recall
the frequency that is set before starting the scan, if
desired.
If the same frequencies are programmed into the
scan edge memory channel P1 and P2, pro-
grammed scan will not start.
■
∂∂
F scan operation
q Push several times to close a multi-func-
tion screen, if necessary.
w Select VFO mode or a memory channel.
e Select the desired operating mode.
• The operating mode can also be changed while scan-
ning.
r Push [SCAN] to select the scan screen.
t Set the main band’s [SQL] open or closed.
• See page 9-2 for squelch condition.
y Set the ∂F span by pushing [∂F SPAN] .
•±5kHz, ±10 kHz, ±20 kHz, ±50 kHz, ±100 kHz,
±500 kHz and ±1000 kHz are selectable.
u Set center frequency of the ∂F span.
i Push [∂F] to start the ∂F scan.
•“ ” and decimal points blink while scanning.
o When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume set-
ting and the squelch status.
!0 To cancel the scan, push [∂F] .
• Rotating the main dial also cancels the scan.
!1 Push and hold [RECALL] for 1 sec. to recall
the frequency that was set before starting the scan.
