4-18
DD

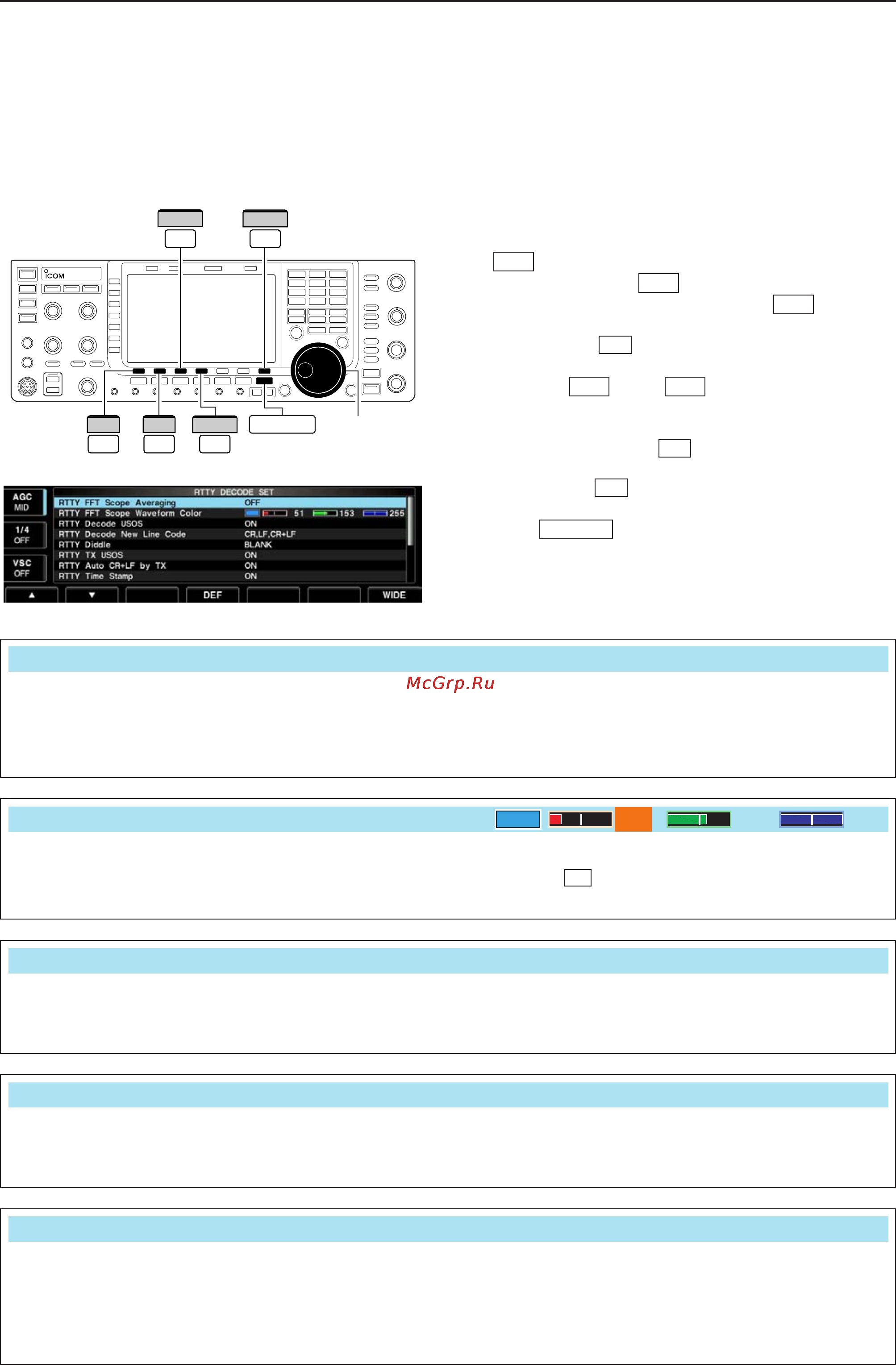

RTTY decode set mode
This set mode is used to set the decode USOS func-
tion, time stamp setting, etc.
• Setting contents
q During RTTY mode operation, push [DECODE]
to select RTTY decode screen.
w Push [<MENU1>] to select the second RTTY
decode menu, then push [SET] to select
RTTY decode set mode.
• Push [WIDE] to toggle the screen size from normal
and wide.
e Push [Y] or [Z] to select the desired set
item.
r Set the desired condition using the main dial.
• Push and hold [DEF] for 1 sec. to select a default
condition or value.
• Push [Ω≈] to select the set contents for some
items.
t Push to exit from set mode.
EXIT/SET
F-3
F-4
F-2F-1
F-7
F-6
F-1
F-3
F-3 F-7
WIDE
Ω ≈
Main dial
EXIT/SET
DEF
F-1
∫
F-2
√
F-4
4
RECEIVE AND TRANSMIT
• RTTY decode set mode screen
Turn the capability of letter code decoding after re-
ceiving a “space” (USOS; UnShift On Space function)
ON and OFF.
•ON: Decode as letter code.
• OFF : Decode as character code.
Selects the new line code of the internal RTTY de-
coder.
CR: Carriage Return, LF: Line Feed
• CR,LF,CR+LF : Makes new line with any codes.
• CR+LF : Makes new line with CR+LF code
only.
RTTY Decode USOS
ON
RTTY Decode New Line Code
CR,LF,CR+LF
Selects the diddle condition. • BLANK : Transmits blank code during no code
transmission.
•LTRS : Transmits letter code during no code
transmission.
• OFF : Turns the diddle function OFF.
RTTY Diddle
BLANK
Select the FFT scope waveform averaging function
from 2 to 4 and OFF. (default: OFF)
Recommendation!
If you use the FFT scope waveform for tuning, use of
the default or smaller averaging setting is recom-
mended.
RTTY FFT Scope Averaging
OFF
Set the color for the FFT scope waveform.
• The color is set in RGB format.
• The set color is indicated in the box beside the RGB scale.
• Push [Ω≈] to select R (Red), G (Green) and B (Blue),
and then rotate the main dial to set the ratio from 0 to 255.
F-3
RTTY FFT Scope Waveform Color
51 153 255
