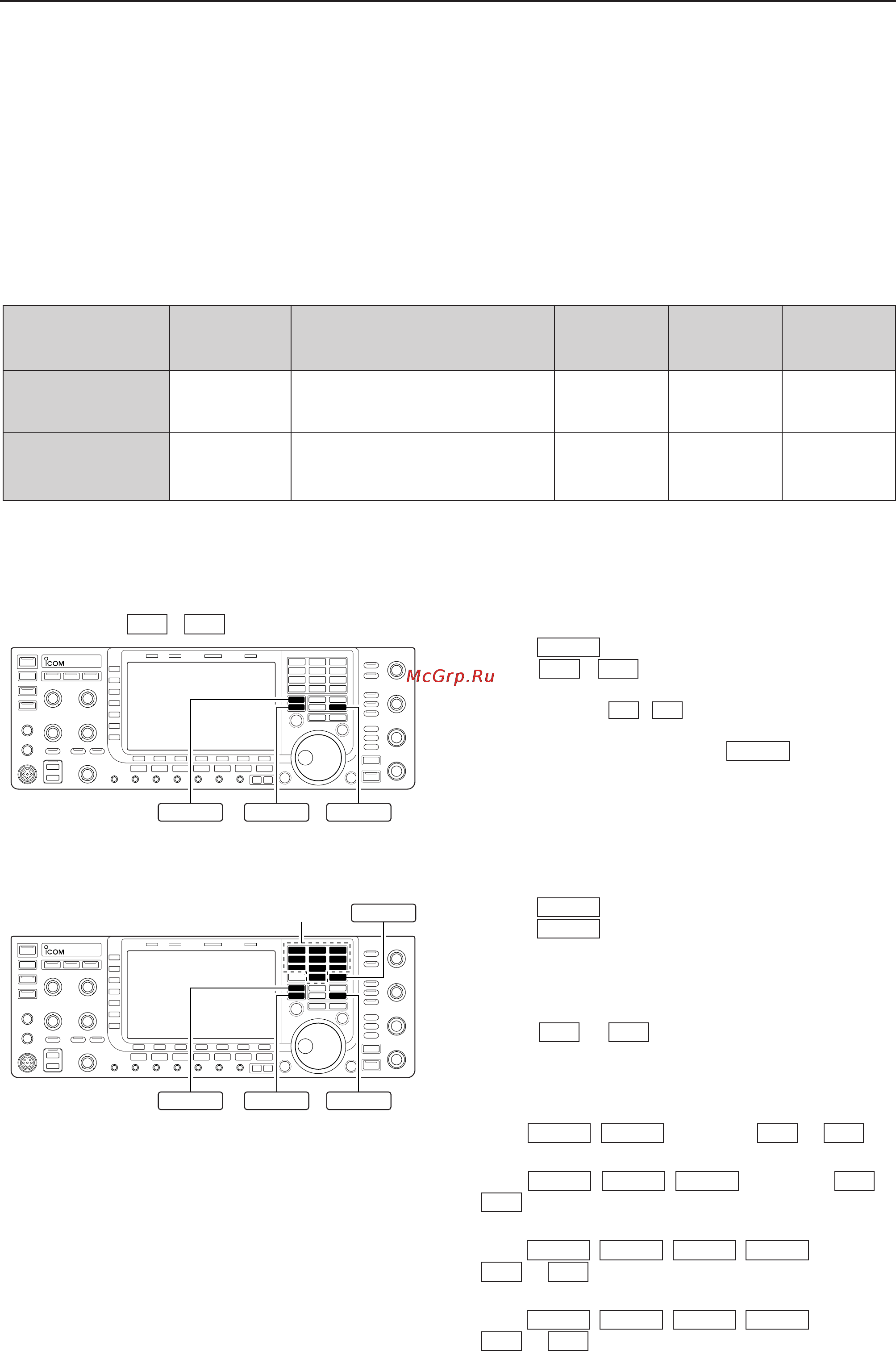

8-2
■ Memory channels
The transceiver has 101 memory channels. Memory
mode is very useful for quickly changing to often-used
frequencies.
All 101 memory channels are tuneable which means
the programmed frequency can be tuned temporarily
with the main dial, etc. in memory mode.
■ Memory channel selection
DD
Using the / keys
q Push to select memory mode.
w Push / several times to select the de-
sired memory channel.
• Push and hold / for continuous selection.
• [UP] and [DN] on the microphone can also be used.
e To return to VFO mode, push again.
DD
Using the keypad
q Push to select memory mode.
w Push .
e Push the desired memory channel number using the
keypad.
• Enter 100 or 101 to select scan edge channel P1 or P2,
respectively.
r Push or to select the desired memory
channel.
[EXAMPLE]
To select the memory channel 3;
- Push , , then push or .
To select the memory channel 12;
- Push , , , then push or
.
To select the scan edge channel P1;
- Push , , , , then push
or .
To select the scan edge channel P2;
- Push , , , , then push
or .
√
∫
1.8
1
50
0
1.8
1
F-INP
ENT
√
∫
50
0
50
0
1.8
1
F-INP
ENT
√
∫
3.5
2
1.8
1
F-INP
ENT
√
∫
7
3
F-INP
ENT
√
∫
F-INP
ENT
V/M
V/M
√
∫
√
∫
V/M
√
∫
V/M
Y Z
Keypad
F-IMP
ENT
V/M
Y Z
8
MEMORY OPERATION
MEMORY
MEMORY
TRANSFER OVER-
CHANNEL
CHANNEL CAPABILITY
TO VFO WRITING
CLEAR
NUMBER
Regular memory
1–99 Yes Yes Yes
channels
Scan edge
memory P1, P2 Yes Yes No
channels
Independent transmit and
receive frequencies and modes
in each memory channel.
One frequency and one mode in
each memory channel as scan
edges for programmed scan.
