12-22
12
SET MODE

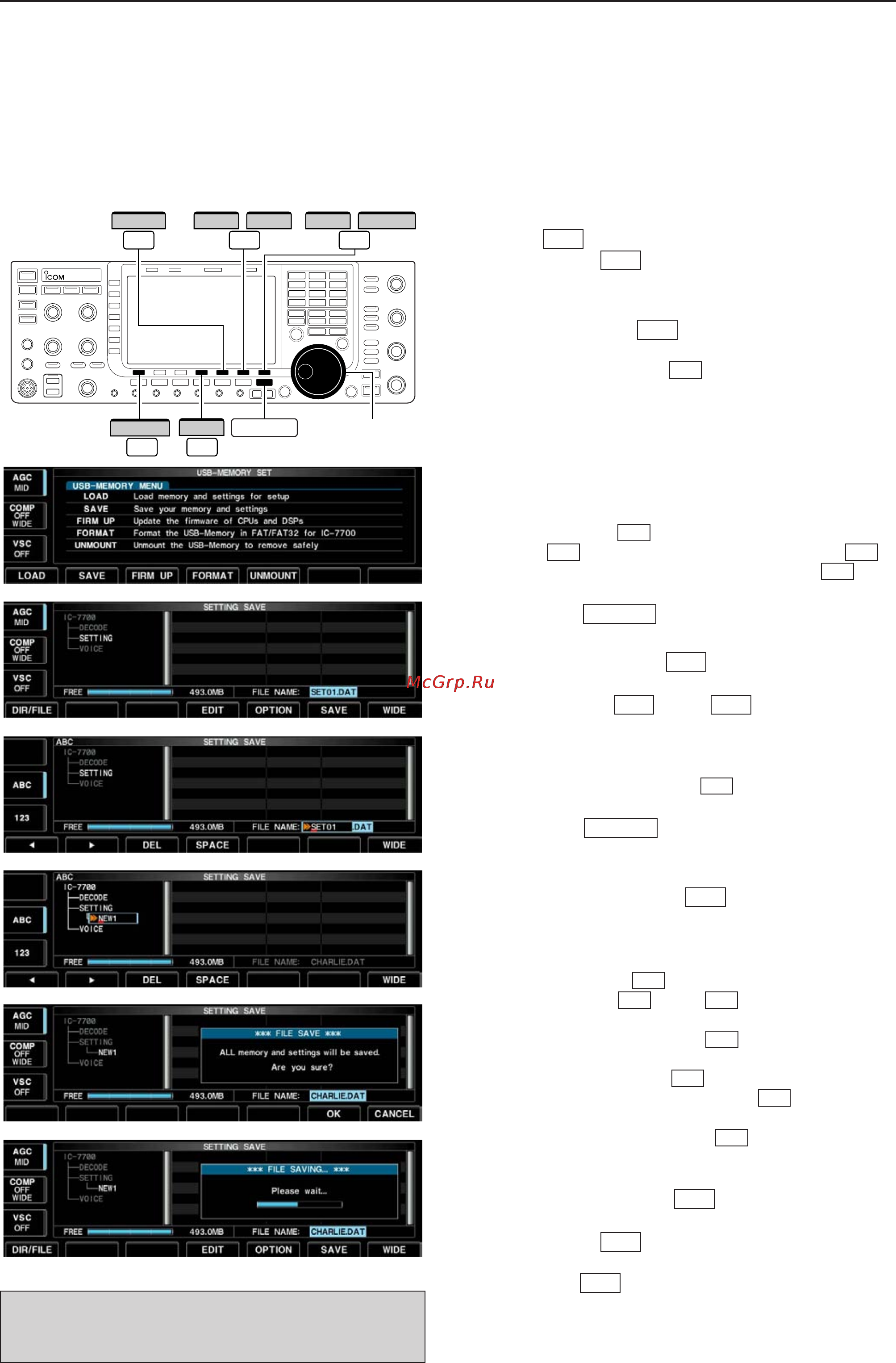

■ File saving
Memory channel contents, set mode settings, etc. can
be saved into the USB-Memory for backup.
q
During set mode menu screen indication, push
[USB] to select USB-Memory set menu screen.
w Push [SAVE] to select setting save screen.
e Change the following conditions if desired.
• File name:
z Push [EDIT] to select file name edit con-
dition.
• Push [DIR/FILE] several times to select the
file name, if necessary.
x Push [ABC] (MF6), [123] (MF7) or [Symbol]
(MF7) to select the character group, then ro-
tate the main dial to select the character.
• [ABC]
(MF6): A to Z (capital letters); [123]
(MF7): 0
to 9 (numerals); [Symbol]
(MF7): ! # $ % & ‘ ` ^ – (
) { } _ ~ @ can be selected.
• Push [Ω] to move the cursor left, push [≈]
to move the cursor right, push [DEL] to
delete a character and push [SPACE] to in-
sert a space.
c Push to set the file name.
• Save option
z Push [OPTION] to enter save option set
mode.
x Push [Y] or [Z] to select the item,
then rotate the main dial to select the desired
setting. (see p. 12-20 for details)
•“Text” is the default setting.
• Push and hold [DEF] for 1 sec. to select the
default setting.
c Push to return to the previous indi-
cation.
•Saving location
z Push [DIR/FILE] to select tree view
screen.
x Select the desired directory or folder in the
USB-Memory.
• Push [Ω≈] to select the upper directory.
• Push [Y] or [Z] to select folder in the
same directory.
• Push and hold [Ω≈] for 1 sec. to select a
folder in the directory.
• Push [REN/DEL] to rename the folder.
• Push and hold [REN/DEL] for 1 sec. to
delete the folder.
• Push and hold [MAKE] for 1 sec. to making
a new folder. (Edit the name with the same man-
ner as the “• File name” above.)
c Push [DIR/FILE] twice to select the file
name.
r Push [SAVE] .
• Confirmation screen appears.
t Push [OK] to save.
• After saving is completed, return to USB-Memory set
menu automatically.
F-6
F-6
F-1
F-6
F-5
F-5
F-4
F-3F-2
F-4
F-1
EXIT/SET
F-4
F-2F-1
F-5
EXIT/SET
F-4
F-3F-2
F-1
F-1
F-4
F-2
F-7
Main dial
DIR/FILE
EXIT/SET
F-1
F-7
WIDE CANCEL
F-5
OPTION
F-6
SAVE OK
F-4
EDIT
//
When a PC keyboard is connected to [USB] connec-
tor on the front panel, the file name can also be
edited from the keyboard.
