7-4

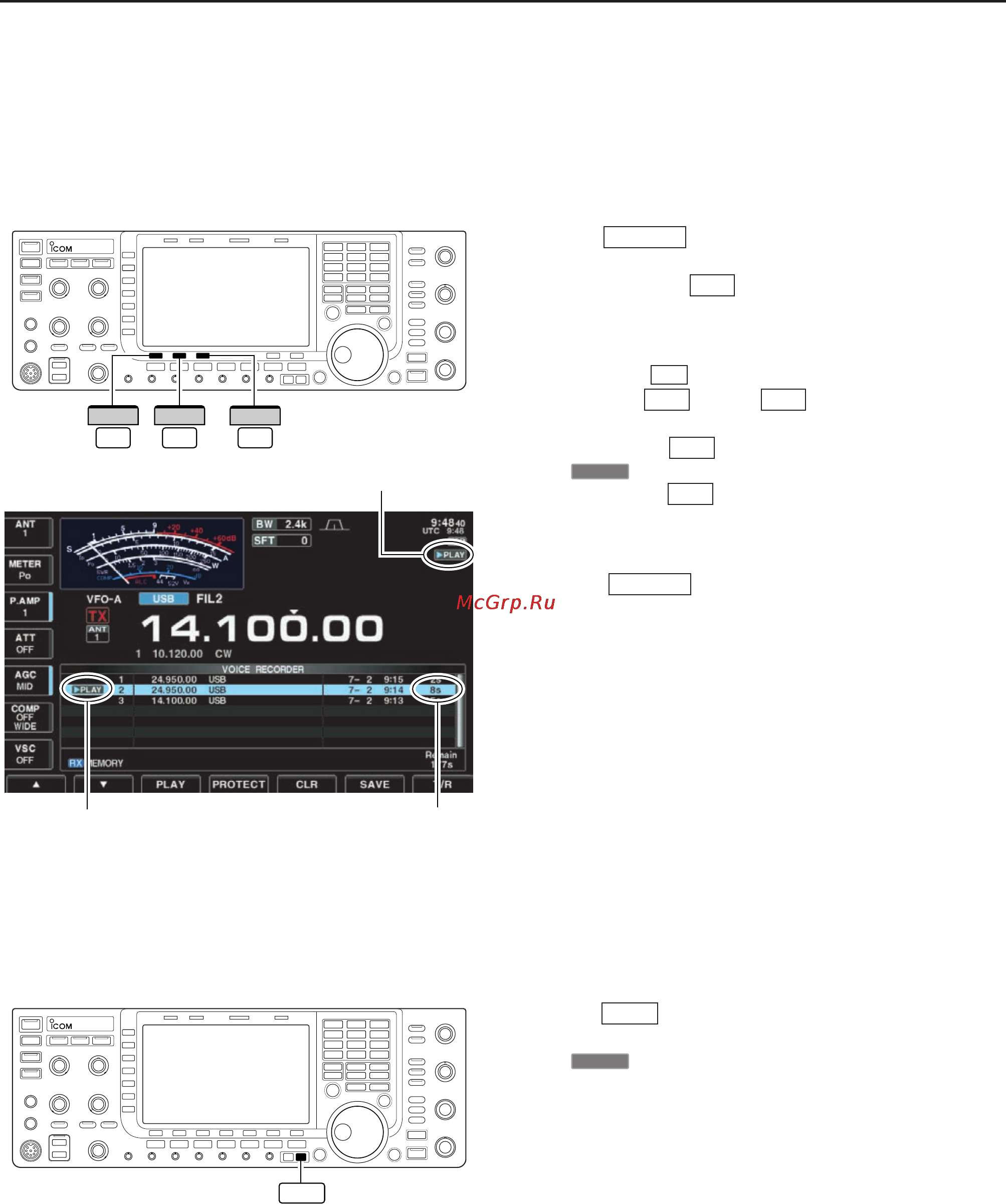

■ Playing the recorded audio
DD
Basic playing
q Push several times to close a multi-func-
tion screen, if necessary.
w Push [VOICE] to call up the voice recorder
screen.
• Previously selected screen, TX or RX memory, is dis-
played. If the TX memory message (T1–T4) appears,
push [T/R] to select RX memory message.
e Push [Y] or [Z] to select the desired
voice memory to playback.
r Push [PLAY] to start playback.
•“ ” indicators appear and the timer counts down.
t Push [PLAY] again to stop playback if desired.
• Playback is terminated automatically when all of the
recorded contents in the message are played, or after
30 sec.
y Push twice to exit the voice recorder
screen.
DD
One-touch playing
The previously recorded audio in message 1 can be
played back without selecting voice recorder screen.
➥ Push momentarily to play back the last 5 sec.
of the previously recorded audio.
•“ ” indicator appears.
• Playback is terminated automatically when all of the
recorded contents in the message are played, or after
5 sec.
• The playback time period can be set in voice set mode.
(p. 7-9)
≈PLAY
PLAY
EXIT/SET
F-3
≈PLAY
F-3
F-2F-1
F-7
F-2
EXIT/SET
F-3
PLAY
F-1
∫
F-2
√
Appears
Appears
Counts down
PLAY
7
VOICE RECORDER FUNCTIONS
