4-26
DD

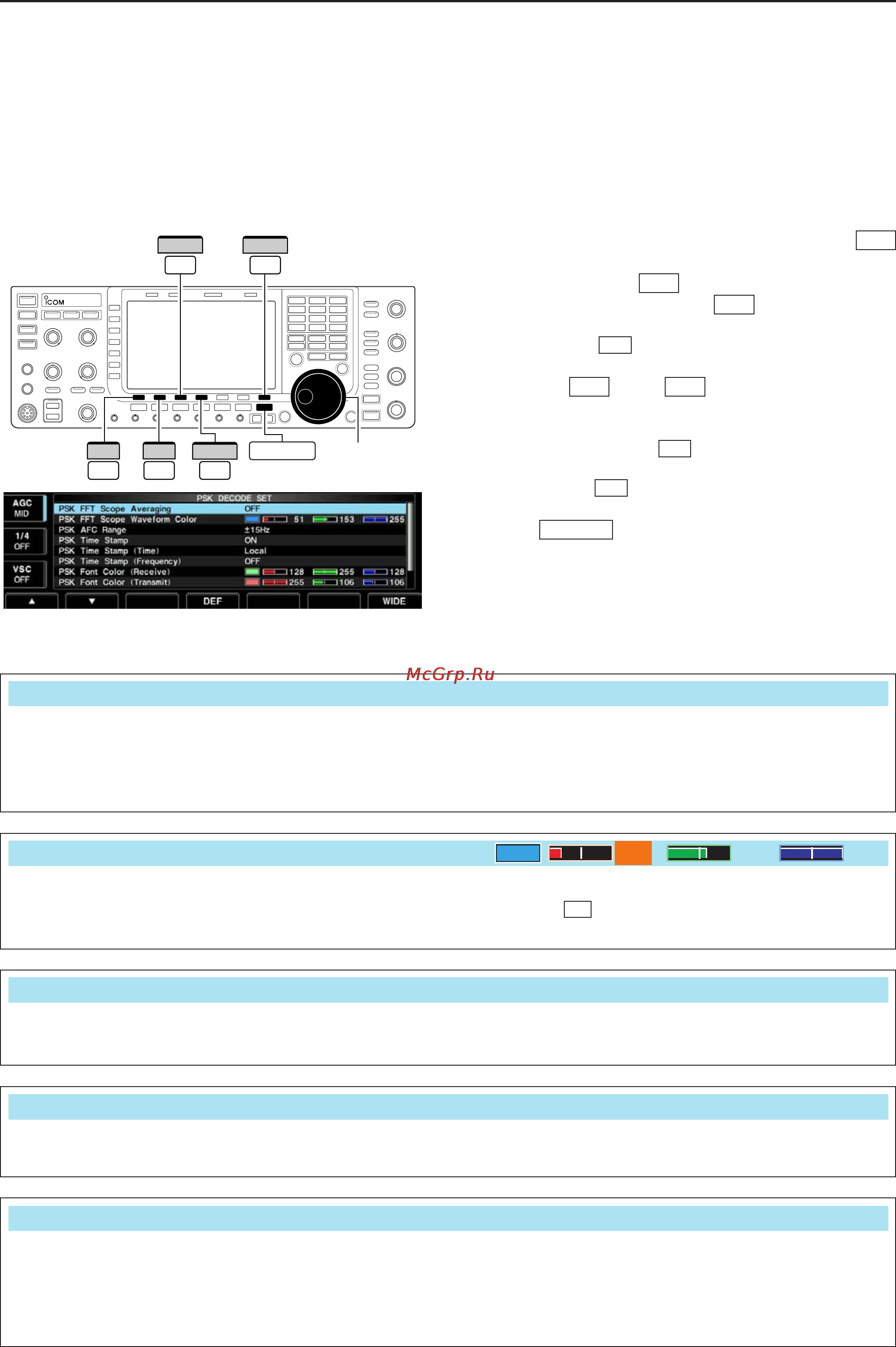

PSK decode set mode
This set mode is used to set the decode USOS func-
tion, time stamp setting, etc.
• Setting contents
q During PSK mode operation, push [DECODE]
to select PSK decode screen.
w Push [<MENU1>] to select PSK decode sec-
ond menu, then push [SET] to select PSK de-
code set mode.
• Push [WIDE] to toggle the screen size from normal
and wide.
e Push [Y] or [Z] to select the desired set
item.
r Set the desired condition using the main dial.
• Push and hold [DEF] for 1 sec. to select a default
condition or value.
• Push [Ω≈] to select the set contents for some
items.
t Push to exit from set mode.
EXIT/SET
F-3
F-4
F-2F-1
F-7
F-6
F-1
F-3
F-3 F-7
WIDE
Ω ≈
Main dial
EXIT/SET
DEF
F-1
∫
F-2
√
F-4
4
RECEIVE AND TRANSMIT
Turn the time stamp (date, transmission or reception
time) display ON and OFF.
•ON: Displays the time stamp.
• OFF : No time stamp display.
PSK Time Stamp
ON
Selects the clock display for time stamp usage.
NOTE: The time won’t be displayed when “OFF” is
selected in “PSK Time Stamp” as above.
• Local : Selects the time that set in “Time (Now).”
• UTC* : Selects the time that set in “CLOCK2.”
*The name of choice may differ according to
“CLOCK2 Name” setting (p. 11-2). “UTC” is the
default name of CLOCK2.
PSK Time Stamp (Time)
Local
Select the FFT scope waveform averaging function
from 2 to 4 and OFF. (default: OFF)
Recommendation!
If you use the FFT scope waveform for tuning, using
the default or smaller averaging setting is recom-
mended.
PSK FFT Scope Averaging
OFF
Set the color for the FFT scope waveform.
• The color is set in RGB format.
• The set color is indicated in the box beside the RGB scale.
• Push [Ω≈] to select R (Red), G (Green) and B (Blue),
and then rotate the main dial to set the ratio from 0 to 255.
F-3
PSK FFT Scope Waveform Color
51 153 255
Select the AFC (Automatic Frequency Control) func-
tion operating range from ±15 Hz (default) and ±8 Hz.
NOTE: The AFC function may not tune the signal
properly when a weak PSK signal is received.
PSK AFC Range
±15Hz
