5-4
DD

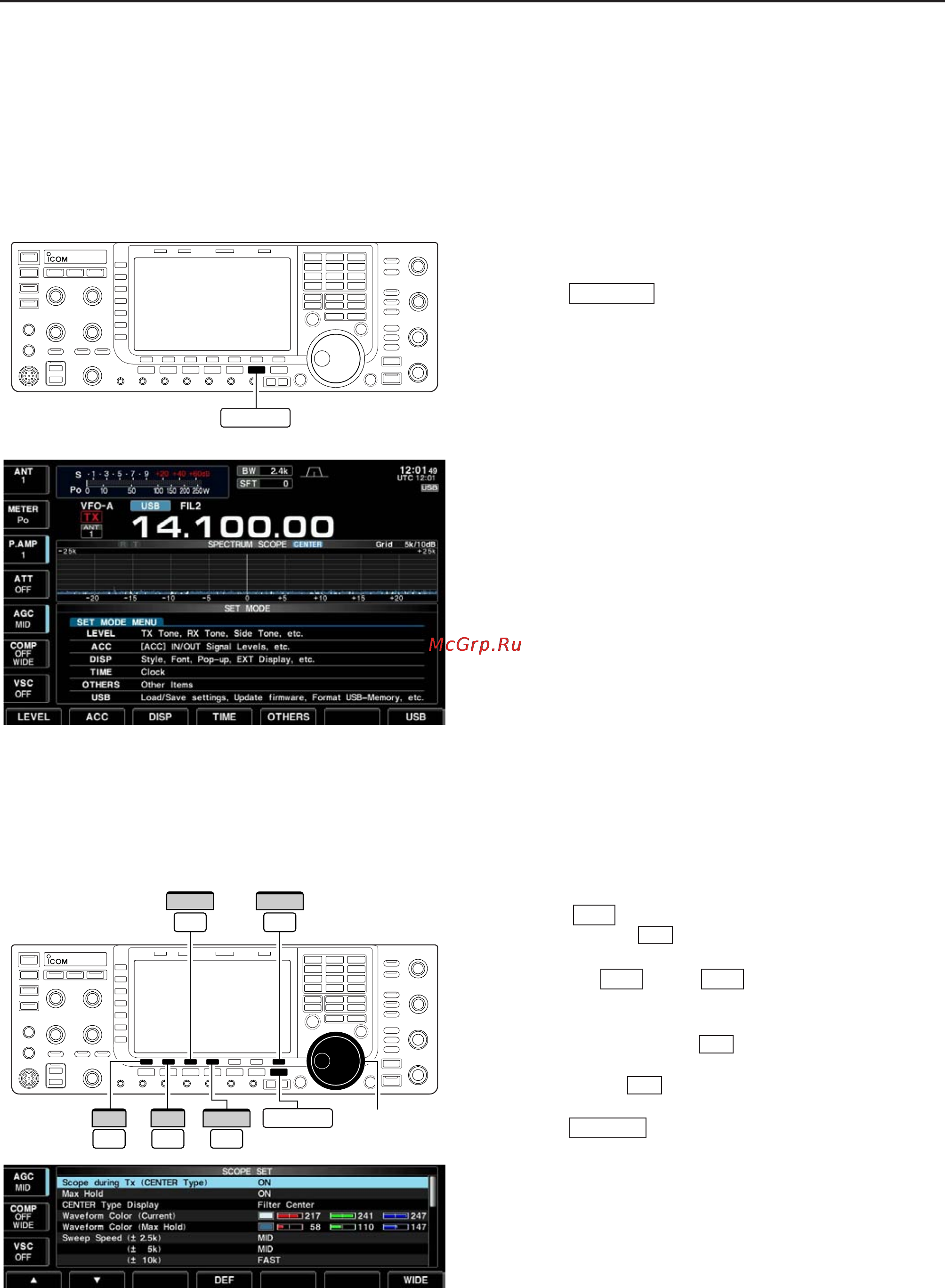

Mini scope screen indication
The mini scope screen can be displayed with another
screen display, such as set mode menu, decode
screen, memory list screen, etc. simultaneously.
q Set the scope mode (center or fixed), marker, at-
tenuator, span, etc. in advance. (pgs. 5-2, 5-3)
w Push to toggle the mini scope indication
ON and OFF.
• The S/RF meter type during mini scope indication can
be selected in display set mode (Meter Type (Wide
Screen) item). (p. 12-10)
DD
Scope set mode
This set mode is used to set the waveform color,
sweeping speed, scope range for fixed mode, etc.
q During spectrum scope display ON, push
[SET] to select scope set mode screen.
• Push [WIDE] to toggle the screen size between
normal and wide.
w Push [Y] or [Z] to select the desired set
item.
e Set the desired condition using the main dial.
• Push and hold [DEF] for 1 sec. to select the de-
fault condition or value.
• Push [Ω≈] to select the set contents for some
items.
r Push to exit from set mode.
EXIT/SET
F-3
F-4
F-2F-1
F-7
F-7
M.SCOPE
F-3 F-7
WIDE
Ω ≈
Main dial
EXIT/SET
DEF
F-1
∫
F-2
√
F-4
M.SCOPE
5
FUNCTIONS FOR RECEIVE
