7-9

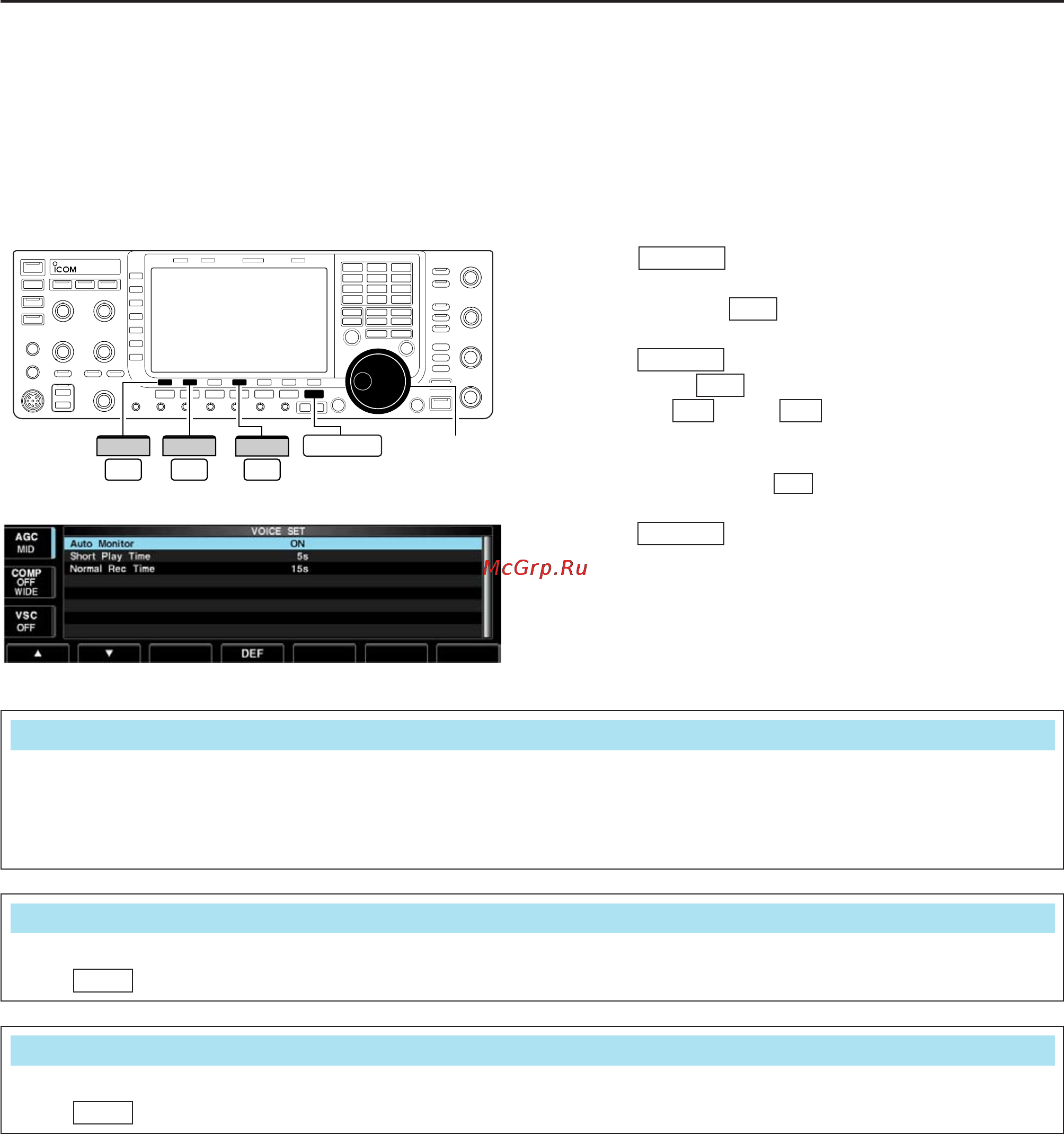

■ Voice set mode
Sets the automatic monitor function, short play and
normal recording times for voice recorder.
q Push several times to close a multi-func-
tion screen, if necessary.
w Push [VOICE] to call up the voice recorder
screen.
e Push to select voice recorder menu.
r Push [SET] to select voice set mode screen.
t Push [Y] or [Z] to select the desired item.
y Rotate the main dial to set the desired condition or
value.
• Push and hold [DEF] for 1 sec. to select the default
condition or value.
u Push to exit the voice set mode screen.
EXIT/SET
F-4
F-2F-1
F-7
EXIT/SET
F-2
EXIT/SET
Main dial
F-4
DEF
F-1
∫
F-2
√
EXIT/SET
7
VOICE RECORDER FUNCTIONS
Turn on the automatic monitor function for recorded
audio contents transmission.
•ON: Monitors transmit audio automatically when
sending a recorded audio.
• OFF : Monitors transmit audio only when the mon-
itor function is in use.
Auto Monitor
ON
Set the desired time period for one-touch playback
(when is pushed momentarily).
•3 to 10 sec. in 1 sec. steps can be set.
(default: 5 sec.)
PLAY
Short Play Time
5s
Set the desired time period for one-touch recording
(when is pushed momentarily).
•5 to 15 sec. in 1 sec. steps can be set.
(default: 15 sec.)
REC
Normal Rec Time
15s
