7-6

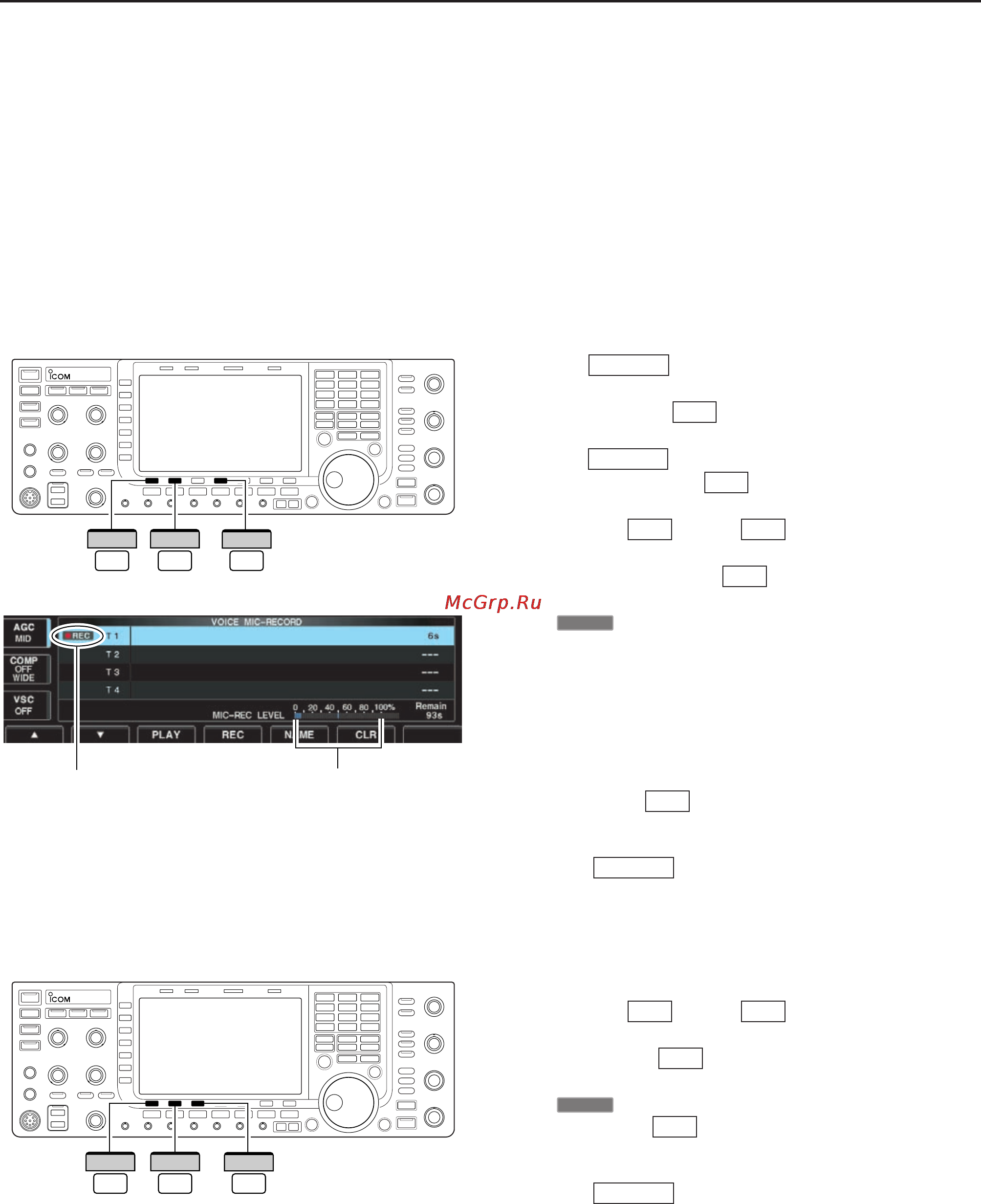

■ Recording a message for transmit
To transmit a message using the voice recorder, record
the desired message in advance as described below.
The IC-7700 has digital voice memories for transmis-
sion, up to 4 messages and a total message length of
up to 99 sec. can be recorded.
DD
Recording
q Push several times to close a multi-func-
tion screen, if necessary.
w Push [VOICE] to call up the voice recorder
screen.
e Push to select voice recorder menu.
r Push [MIC REC] to select the voice mic.
record screen.
t Push [Y]or[Z] to select the desired
message.
y Push and hold [REC] for 1 sec. to start record-
ing.
•“ ” indicator appears.
• Speak into the microphone without pushing [PTT].
• Previously recorded contents are cleared.
• Audio output from the internal speaker is automatically
muted.
u While speaking into the microphone with your nor-
mal voice level, adjust the [MIC] control so that the
[MIC-REC LEVEL] indicator reads within 100%.
i Push [REC] momentarily to stop recording.
• The recording is terminated automatically when the re-
maining time becomes 0 sec.
o Push twice to exit the voice recorder
screen.
DD
Confirming a message for transmit
q Perform the steps q to r as “D Recording” above.
w Push [Y]or[Z] to select the desired
message.
e Push [PLAY] to playback the recorded con-
tents.
•“ ” indicator appears.
r Push [PLAY] again to stop playback.
• Playback is terminated automatically when all of the
recorded contents in the message are played.
t Push twice to exit the voice recorder
screen.
EXIT/SET
F-3
≈PLAY
F-3
F-2F-1
EXIT/SET
F-4
●REC
F-4
F-2F-1
F-2
EXIT/SET
F-2
EXIT/SET
F-4
REC
F-1
∫
F-2
√
Appears Adjust [MIC] control so that this
indicator reads within 100%.
F-3
PLAY
F-1
∫
F-2
√
7
VOICE RECORDER FUNCTIONS
