7-5

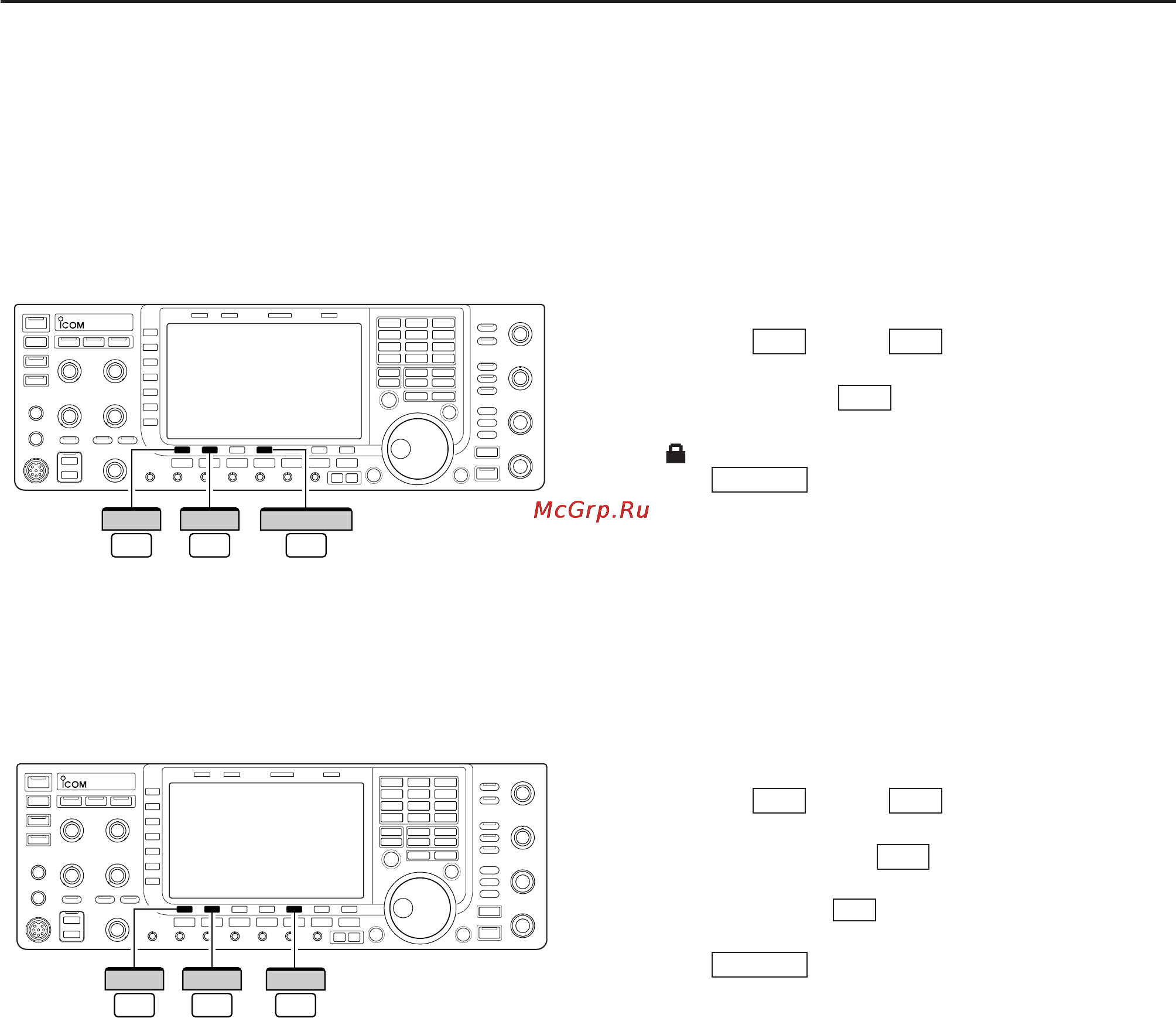

■ Protect the recorded contents
The protect function is available to protect the recorded
contents from accidental erasure, such as over-writing,
etc.
q Call up the voice recorder screen, RX memory.
w Push [Y] or [Z] to select the desired
voice message.
e Push [PROTECT] to turn the protect function
ON and OFF.
•“ ” indicator appears when the contents is protected.
r Push twice to exit the voice recorder
screen.
■ Erasing the recorded contents
The recorded contents can be erased independently
by message.
q Call up the voice recorder screen, RX memory.
w Push [Y] or [Z] to select the desired
voice message to be erased.
e Push and hold [CLR] for 1 sec. to erase the
contents.
• Push [PROTECT] to release the protection in ad-
vance if necessary.
r Push twice to exit the voice recorder
screen.
EXIT/SET
F-4
F-5
F-2F-1
EXIT/SET
F-4
F-2F-1
F-4
PROTECT
F-1
∫
F-2
√
F-5
CLR
F-1
∫
F-2
√
7
VOICE RECORDER FUNCTIONS
