8-6
8
MEMORY OPERATION
■ Memory names
All memory channels (including scan edges) can be
tagged with alphanumeric names of up to 10 charac-
ters each.
Capital letters, small letters, numerals, some symbols
(! # $ % & ¥ ? " ’ ` ^ + – ✱ / . , : ; = < > ( ) [ ] { } | _
~
@)
and spaces can be used.
DD

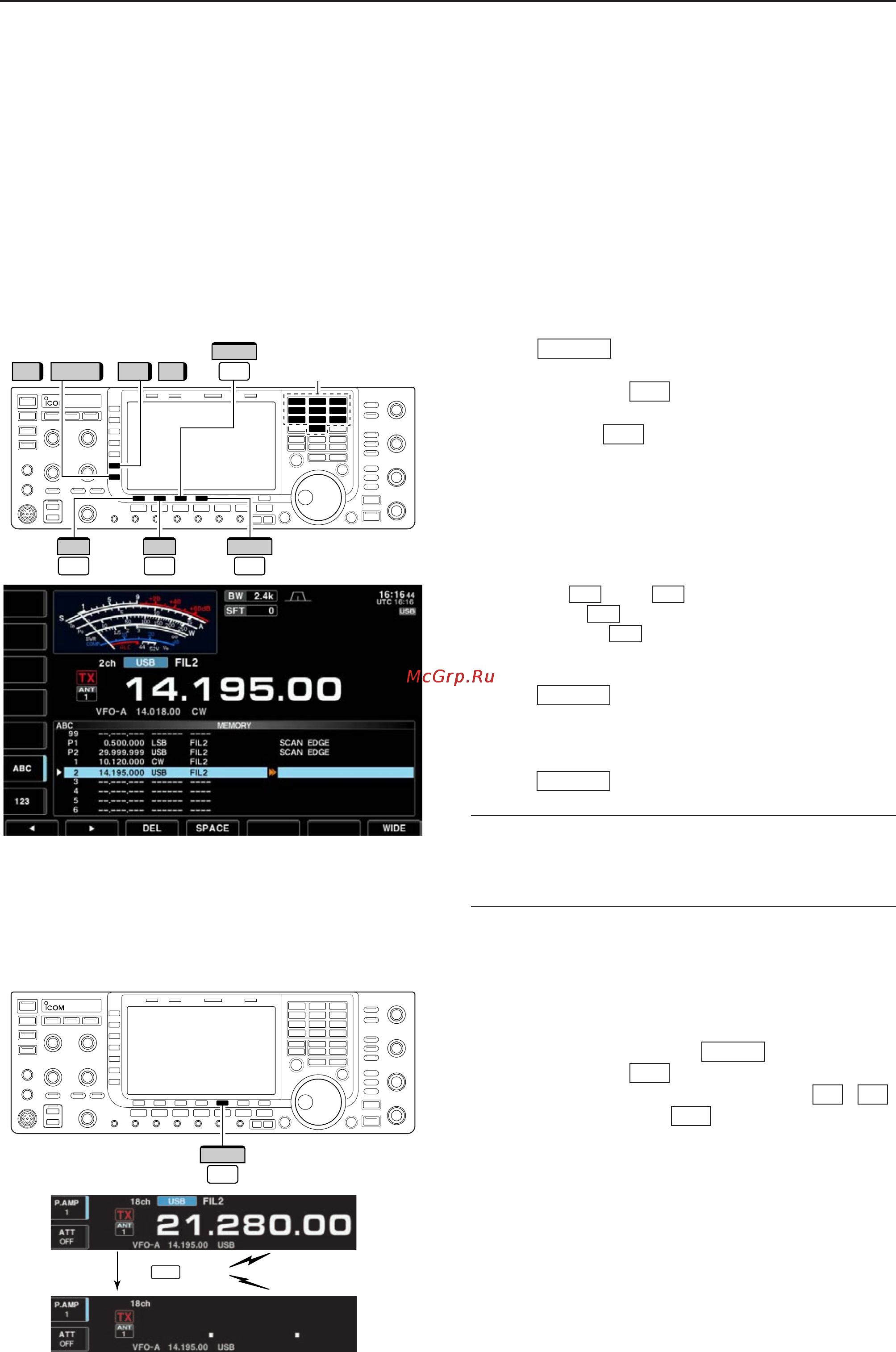

Editing (programming) memory names
q Push several times to close a multi-func-
tion screen, if necessary.
w Push [MEMORY] to select memory list screen.
e Select the desired memory channel.
r Push [NAME] to edit memory channel name.
•Acursor appears and blinks.
• Memory channel names of blank channels cannot be
edited.
t Input the desired character by rotating the main dial
or by pushing the keypad for number input.
• Push [ABC] or [abc] to toggle capital and small letters.
• Push [123] or [Symbol] to toggle numerals and symbols.
• Push [Ω] or [≈] for cursor movement.
• Push [DEL] to delete the selected character.
• Push [SPACE] to input a space.
• Pushing the transceiver’s keypad, [0]–[9], can also enter
numerals.
y Push to input and set the name.
• The cursor disappears.
u Repeat steps e to y to program another memory
channel’s name, if desired.
i Push to exit memory list screen.
✔
For your convenience
When a PC keyboard is connected to [USB] connec-
tor on the front panel, the memory name can also be
edited from the keyboard.
■ Memory clearing
Any unused memory channels can be cleared. The
cleared memory channels become blank channels.
q Select memory mode with .
w Push [MEMORY] to select memory list screen.
e Select the desired memory channel with / .
r Push and hold [CLR] for 1 sec. to clear the
contents.
• The programmed frequency and operating mode disap-
pear.
t To clear other memory channels, repeat steps e
and r.
F-5
√
∫
F-4
V/M
EXIT/SET
EXIT/SET
F-4
F-3
F-2F-1
F-4
F-4
EXIT/SET
Push for 1 sec.
Beep
Beep
Beep
(CLR)
F-5
F-5
CLR
Keypad
//
F-3
DEL
123 Symbol ABC abc
F-1
Ω
F-2
≈
F-4
SPACE
