11-2

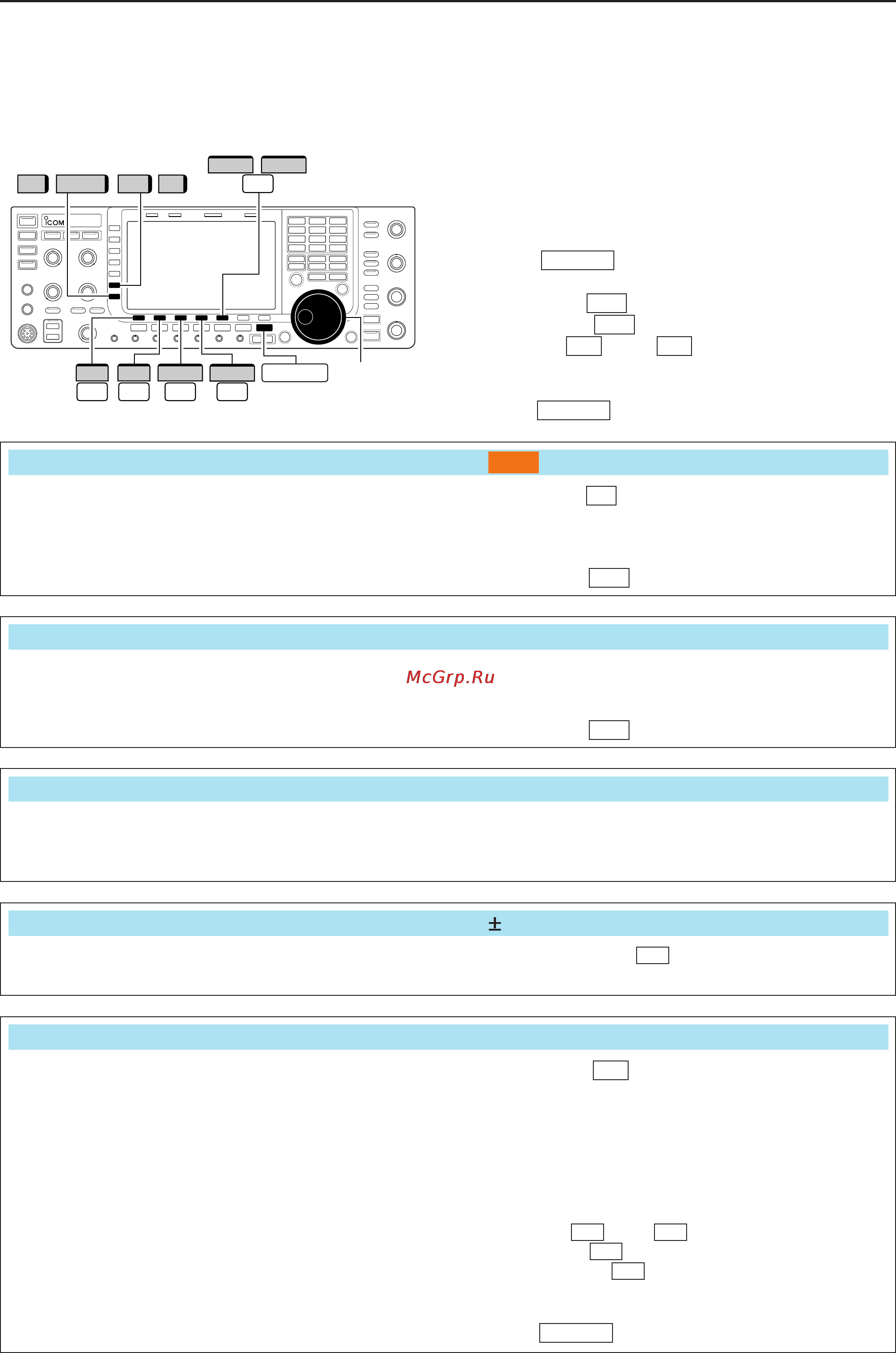

■ Time set mode
The IC-7700 has a built-in calendar and 24-hour clock
(accuracy ±75 sec. per month) with daily power
ON/OFF timer functions. Before operating these timer
functions, set the current date and time.
q Push to close multi-function screen, if
necessary.
w Push [SET] to select set mode menu screen.
e Push [TIME] to select time set mode.
r Push [Y] or [Z] to select the desired item.
t Rotate the main dial to set or select the desired
value or condition.
y Push to exit time set mode.
EXIT/SET
F-2F-1
F-4
F-7
EXIT/SET
Main dial
EXIT/SET
//
/
F-3
Ω ≈
F-5
EDIT SET
123 Symbol ABC abc
F-1
Ω
F-2
≈
F-4
DEF
11
CLOCK AND TIMERS
Sets the date.
z Push [Ω≈] to select between the year and the
month/day, then rotate the main dial to select them.
• The date setting and “DATE-set Push [SET]” indication
blink.
x Push [SET] to set the date.
F-5
F-3
Date
2000
–
1
–
1 ( Sat )
Sets the local time.
z Rotate the main dial to set the local time.
• The time setting and “TIME-set Push [SET]” indication
blink.
x Push [SET] to set the time.
F-5
Time (Now)
1:23
Turns the CLOCK2 indicator ON and OFF.
CLOCK2 is convenient to indicate UTC or other coun-
try’s local time, etc.
• ON : The CLOCK2 indicator is displayed below the
local time indication.
• OFF : The CLOCK2 indicator does not display.
CLOCK2 Function
ON
Sets the desired off-set time period for CLOCK2 dis-
play within –24:00 to +24:00 in 5 min. steps.
• Push and hold [DEF] for 1 sec. to select the default
value.
F-4
CLOCK2 Offset
0:00
Sets the desired 3-character name for CLOCK2.
Capital letters, small letters, numerals, some symbols
(! # $ % & ¥ ? " ’ ` ^ + – ✱ / . , : ; = < > ( ) [ ] { } | _
~
@)
and spaces can be used.
z Push [EDIT] to select the name edit condition.
• The cursor under the 1st character blinks.
x Push [ABC], [abc], [123] or [Symbol] to select the
character group, then rotate the main dial to select
the character.
• Push [ABC] or [abc] to toggle capital and small letters.
• Push [123] or [Symbol] to toggle numerals and sym-
bols.
• Push [Ω] or [≈] for cursor movement.
• Push [DEL] to delete the selected character.
• Push [SPACE] to input a space.
• Pushing the transceiver’s keypad, [0]–[9], can also
enter numerals.
c Push to set the name.
EXIT/SET
F-4
F-3
F-2F-1
F-5
CLOCK2 Name
UTC
