5-3
DD

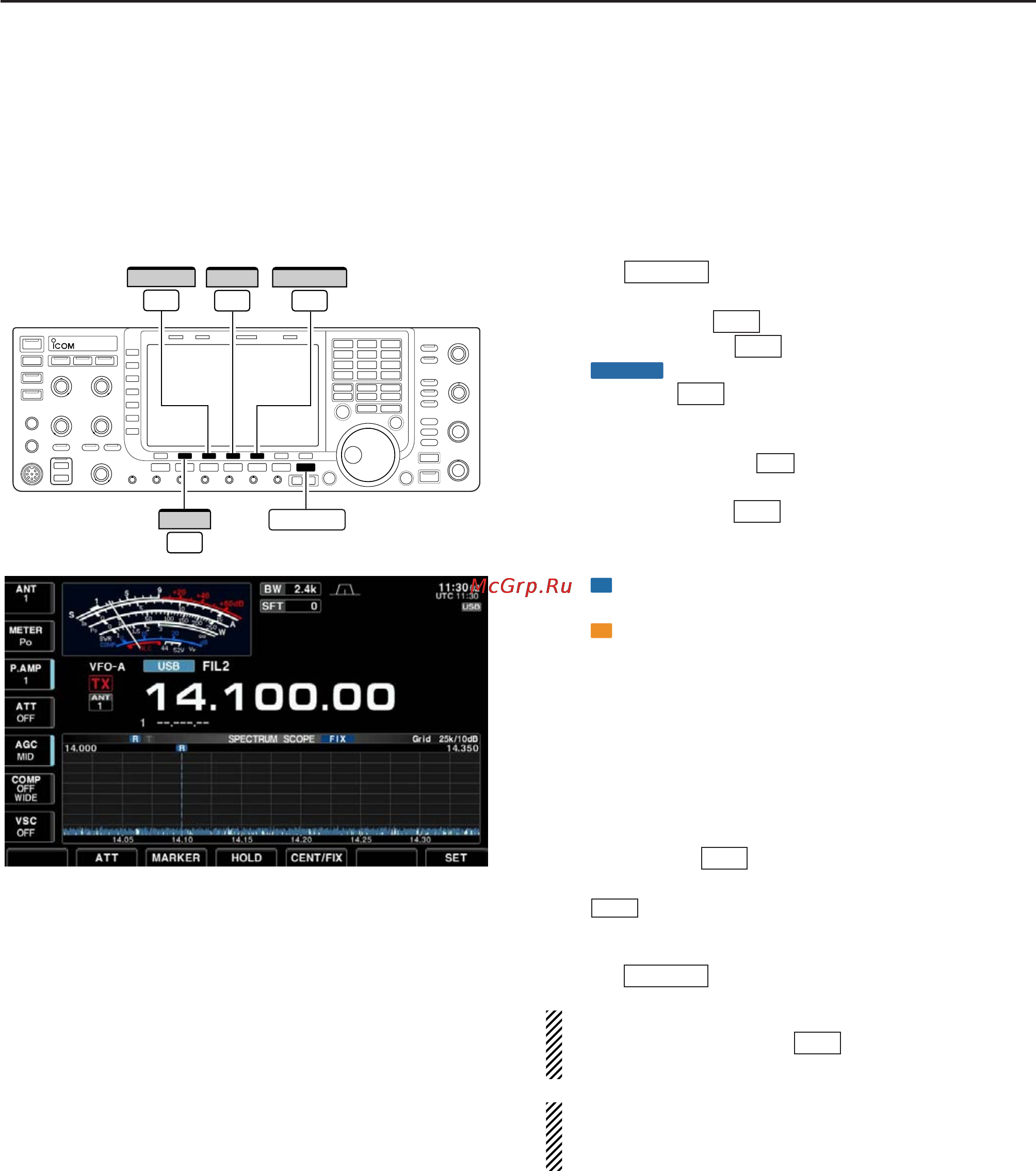

Fixed mode
Displays signals within the specified frequency range.
Conditions on the selected frequency band can be ob-
served at a glance when using this mode.
q Push several times to close a multi-func-
tion screen, if necessary.
w Push [SCOPE] to select the scope screen.
e Push [CENT/FIX] to select the fixed mode.
•“ ” is displayed when fixed mode is selected.
r Push [ATT] several times to activate an atten-
uator or turn the attenuator OFF.
• 10, 20 and 30 dB attenuators are available.
• Push and hold [ATT] for 1 sec. to turn OFF the at-
tenuator.
t Push [MARKER] several times to select the
marker for transmit frequency or turn the marker
OFF.
•“ ” displays the marker at the receive frequency. (al-
ways displayed)
•“ ” displays the marker at the transmit frequency.
• “<<” or “>>” appears when the marker is out of range.
• The spectrum scope shows the transmit signal while
transmitting. This can be deactivated in scope set mode.
(p. 5-5)
• The spectrum scope shows the peak level hold function.
Peak levels are displayed in the background of the cur-
rent spectrum in a different color until the receive fre-
quency changes. This can be deactivated and the wave-
form color can be set in scope set mode. (p. 5-5)
y Push [HOLD] to freeze the current spectrum
waveform.
•“ ” appears while the function is in use.
• The peak hold function can be deactivated in scope set
mode.
u Push to exit the scope screen.
NOTE: If a strong signal is received, a ghost signal
may appear. Push [ATT] several times to acti-
vate the spectrum scope attenuator in this case.
The scope bandwidth can be specified for each fre-
quency band independently in scope set mode.
(pgs. 5-6 to 5-8)
