9-5

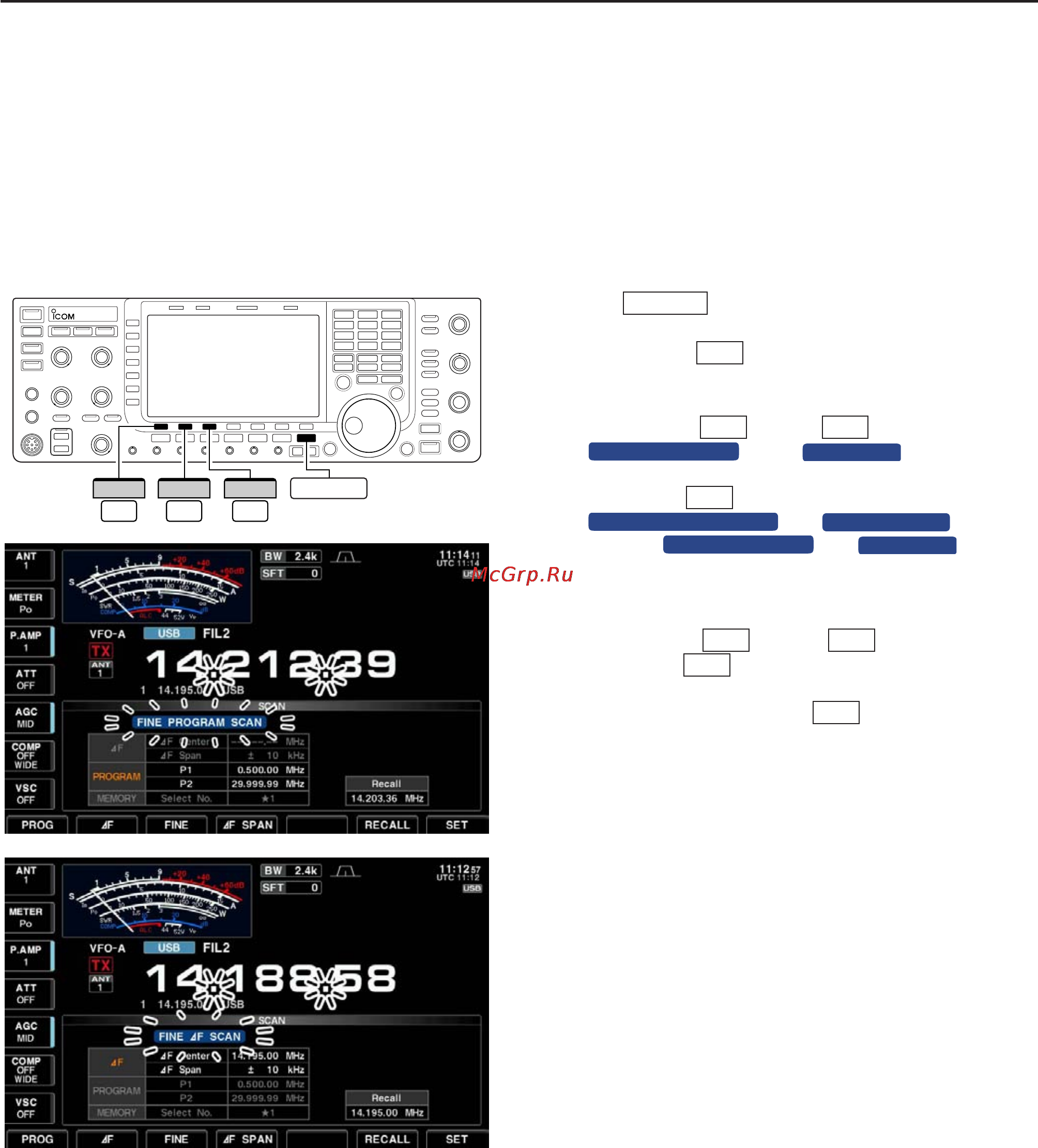

■ Fine programmed scan/Fine ∂F scan
In fine scan (programmed or ∂F), the scan speed de-
creases when the squelch opens, but the transceiver
keeps scanning. The scanning tuning step shifts from
50 Hz to 10 Hz when the squelch opens.
q Push several times to close a multi-func-
tion screen, if necessary.
w Push [SCAN] to select the scan screen.
e Set for programmed scan or ∂F scan as described
on previous page.
r Push [PROG] or [∂F] to start a scan.
•“ ” or “ ” and decimal
points blink while scanning.
t Push [FINE] to start a fine scan.
•“ ” or “ ” blinks in-
stead of “ ” or “ ,” respec-
tively.
y When the scan detects a signal, the scan speed de-
creases but scan does not stop.
u Push [PROG] or [∂F] to stop the scan;
push [FINE] to cancel the fine scan.
• Rotating the main dial also cancels the scan.
i Push and hold [RECALL] for 1 sec. to recall
the frequency that is set before starting the scan, if
desired.
F-6
F-3
F-2F-1
:F SCAN
PROGRAM SCAN
FINE :F SCAN
FINE PROGRAM SCAN
F-3
:F SCAN
PROGRAM SCAN
F-2F-1
F-5
EXIT/SET
F-2
∂F
F-3
FINE
F-1
PROG
EXIT/SET
9
SCANS
