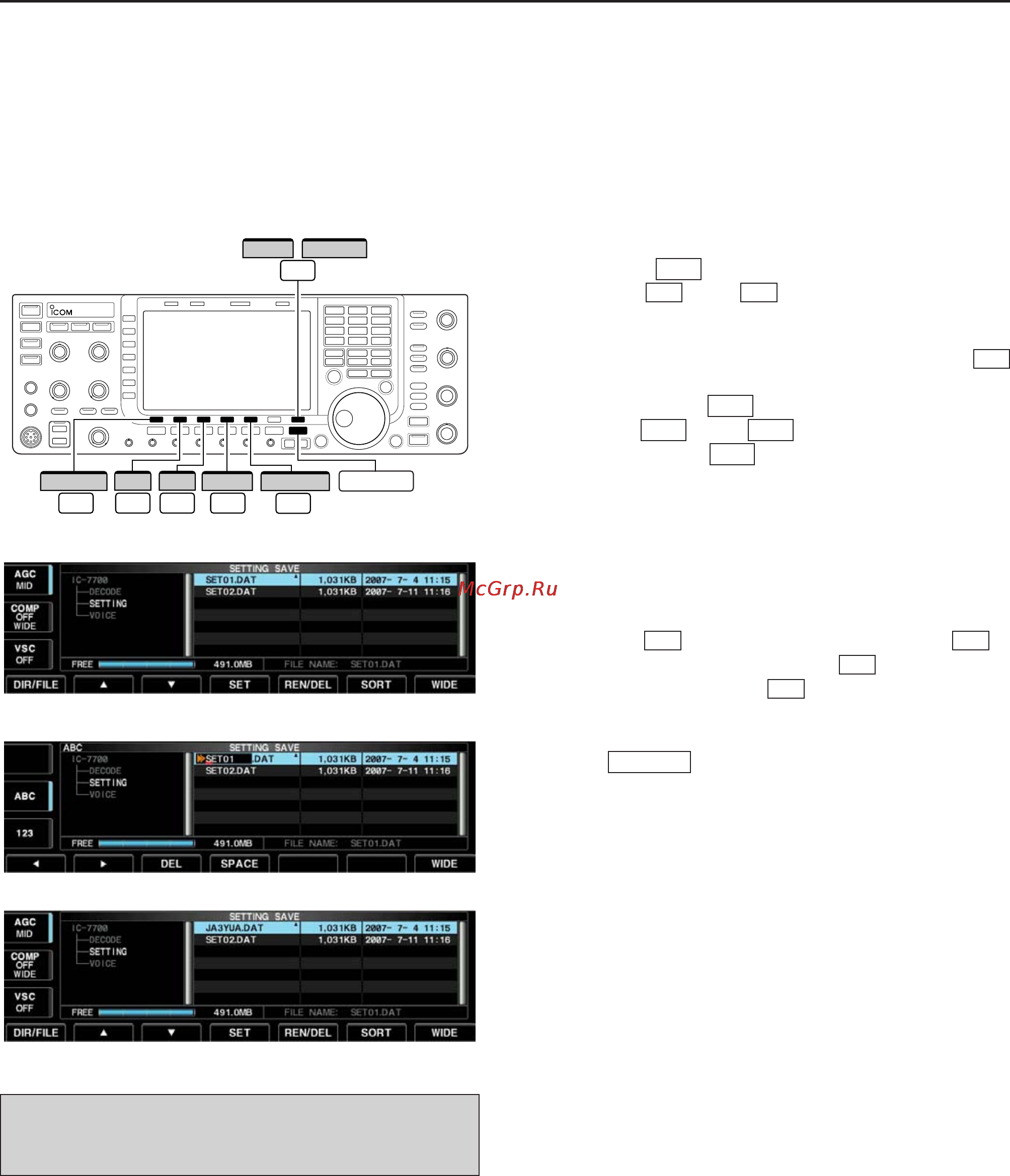

■ Changing a file name
The file name, saved in the USB-Memory, can be re-
named from the transceiver as desired.
q During setting save screen display, push
[DIR/FILE] to select tree view screen.
• Push [Y] or [Z] to select the desired folder.
• “DECODE,” “SETTING” and “VOICE” folders are avail-
able as the default.
• After the folder is selected, push and hold [Ω≈]
for 1 sec. to display content folder(s), if available.
w Push [DIR/FILE] to select file list screen.
e Push [Y] or [Z] to select the desired file.
r Push [REN/DEL] momentarily to select the file
name edit condition.
t Push [ABC] (MF6), [123] (MF7) or [Symbol] (MF7) to
select the character group, then rotate the main dial
to select the character.
• [ABC]
(MF6): A to Z (capital letters); [123]
(MF7): 0 to 9
(numerals); [Symbol]
(MF7): ! # $ % & ‘ ` ^ – ( ) { } _ ~ @
can be selected.
• Push [Ω] to move the cursor left, push [≈] to
move the cursor right, push [DEL] to delete a char-
acter and push [SPACE] to insert a space.
• Pushing the transceiver’s keypad, [0]–[9], can also enter
numerals.
y Push to set the file name.
EXIT/SET
F-4
F-3
F-2F-1
F-5
F-3F-2
F-1
F-4
F-3F-2
F-1
DIR/FILE
F-1
F-7
WIDE CANCEL
REN/DEL
F-5
F-4
Ω ≈
/
F-2
∫
F-3
√
EXIT/SET
12-24
12
SET MODE
When a PC keyboard is connected to [USB] connec-
tor on the front panel, the file name can also be
edited from the keyboard.
