4-24
DD

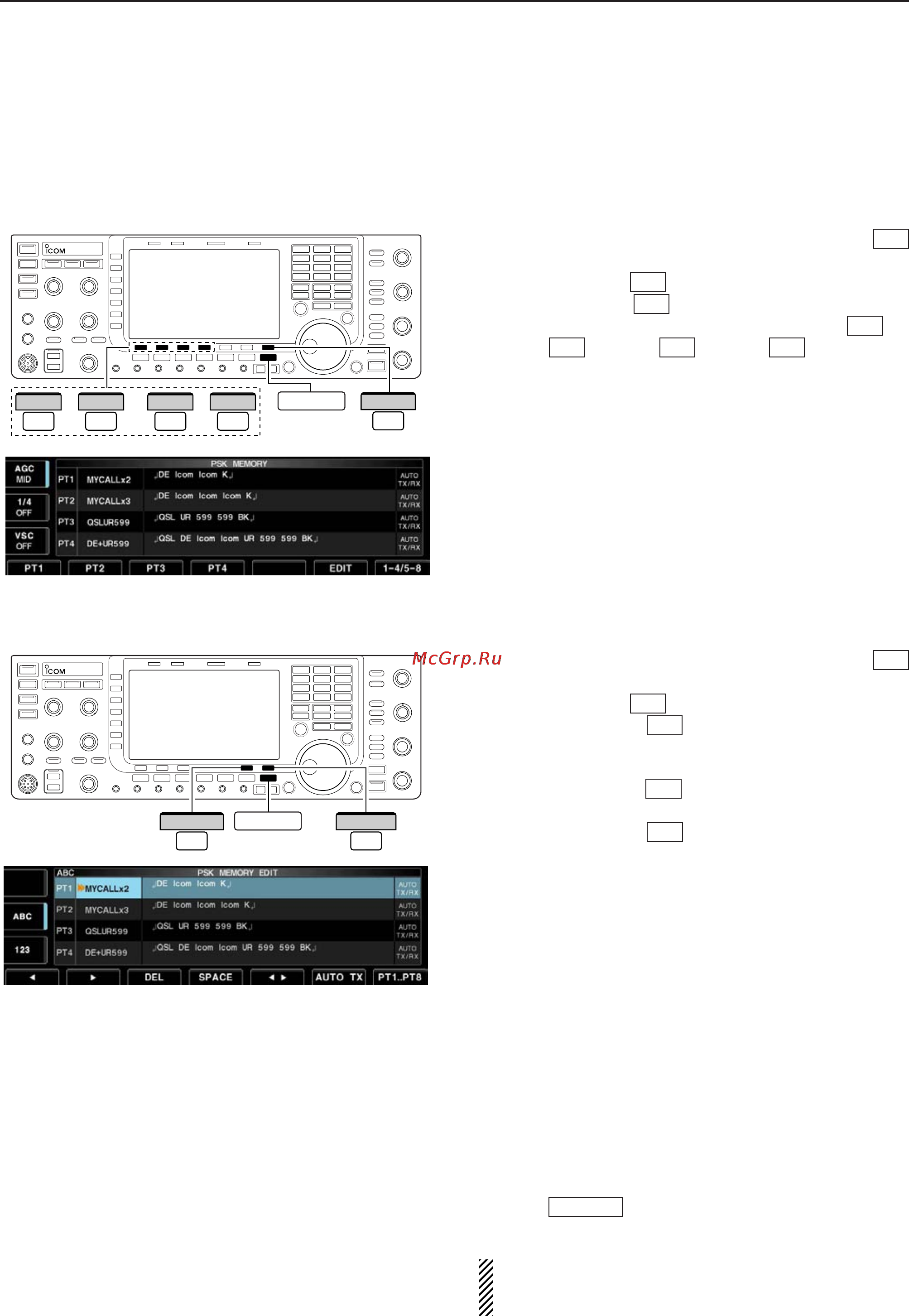

PSK memory transmission
Pre-set characters can be sent using the PSK memo-
ry. Contents of the memory are set using the edit
menu.
q During PSK mode operation, push [DECODE]
to select PSK decode screen.
w Push [TX MEM] to select PSK memory screen.
e Push [1–4/5–8] to select memory bank then
push one of the function keys ([PT1] to
[PT4] or [PT5] to [PT8] ).
• When no keyboard is connected, the selected memory
contents will be transmitted immediately.
• When a keyboard is connected, the memory contents
will be transmitted immediately when function key is
pushed, or transmitted after [F12] on the connected key-
board is pressed, depending on auto transmission/re-
ception setting (see below).
• The transmission date, time, reception date and/or time
may be displayed in RX contents screen, depending on
setting.
DD
Automatic transmission/reception setting
q During PSK mode operation, push [DECODE]
to select PSK decode screen.
w Push [TX MEM] to select PSK memory screen,
then push [EDIT] to select PSK memory edit
screen.
• PSK memory contents of Channel 1 (PT1) is selected.
e Push [PT1..PT8] several times to select the
desired PSK memory.
r Push [AUTO TX] several times to select the
desired condition, as follows.
• AUTO TX/RX : Automatically transmits the se-
lected memory and returns to re-
ceive after the transmission.
• AUTO TX : Automatically transmits the se-
lected memory. To return to re-
ceive, press [F12] on the key-
board.
• AUTO RX : Press [F12] on the keyboard to
transmit the selected memory. Au-
tomatically returns to receive after
the transmission.
• No indication : Press [F12] on the keyboard to
transmit the selected memory and
press [F12] again to return to re-
ceive.
t Push to return to exit from PSK memory
edit condition.
NOTE: The transceiver always functions in the
“AUTO TX/RX” setting when no keyboard is con-
nected.
