8-5
8
MEMORY OPERATION

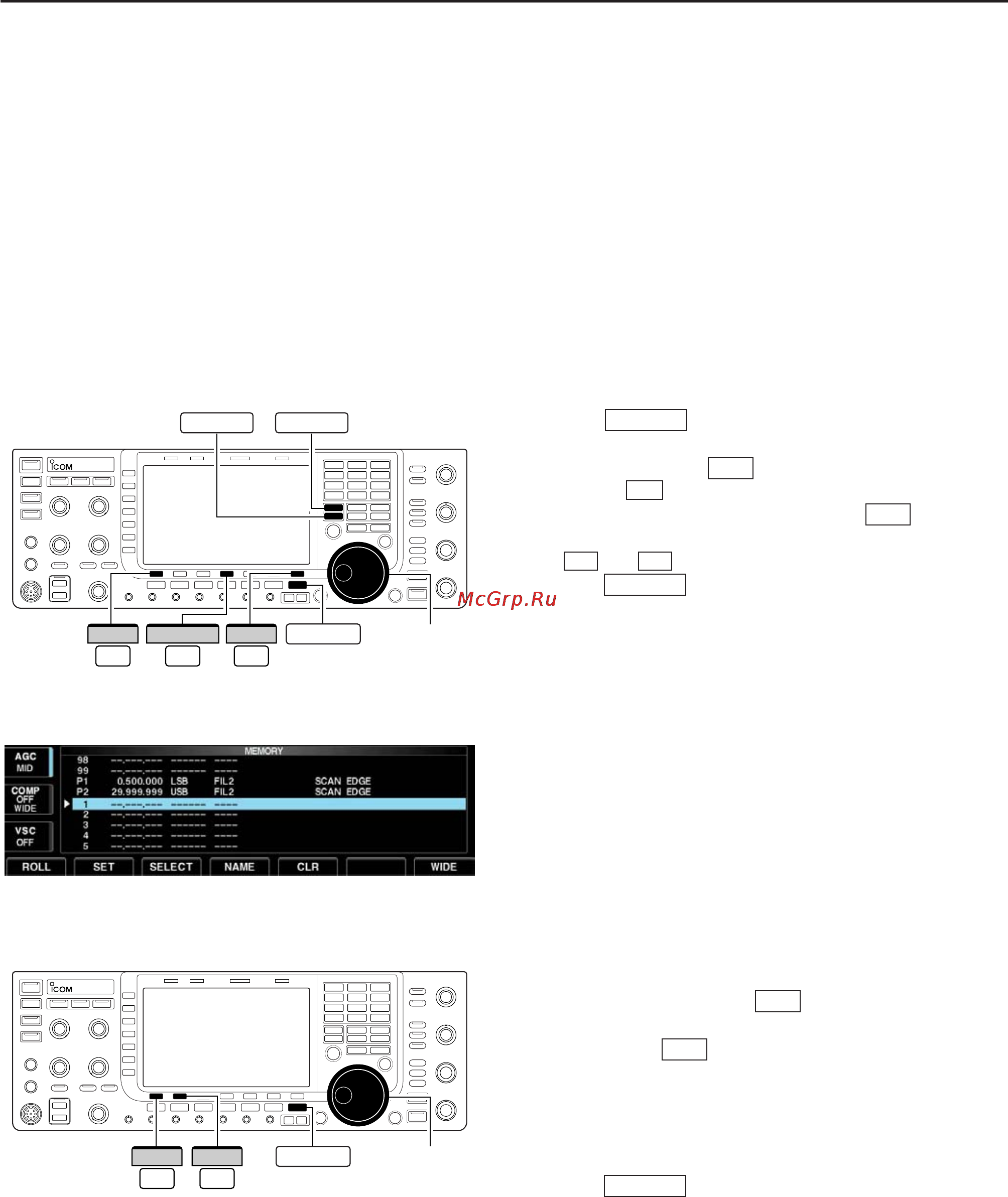

■ Memory list screen
The memory list screen simultaneously shows 9 mem-
ory channels and their programmed contents. 15 mem-
ory channels can be displayed in the wide memory list
screen.
You can select a desired memory channel from the
memory list screen.
DD
Selecting a memory channel using the memory list screen
q Push several times to close a multi-func-
tion screen, if necessary.
w Push [MEMORY] to select memory list screen.
•[WIDE] switches the standard and wide screens.
e While pushing and holding [ROLL] , rotate the
main dial to select the desired memory channel.
• and can also be used.
r Push to exit memory list screen.
• Memory list screen
DD
Confirming programmed memory channels
q Select memory list screen as described above.
w While pushing [ROLL] , rotate the main dial to
scroll the screen.
e Push [SET] to select the highlighted memory
channel, if desired.
•“≈” appears beside the selected memory channel num-
ber in the memory list screen and the selected memory
channel contents are displayed below the frequency
readout.
r Push to exit memory list screen.
EXIT/SET
F-2
F-1
EXIT/SET
√
∫
F-1
F-7
F-4
EXIT/SET
Main dial
F-2
SET
F-1
ROLL
EXIT/SET
Main dial
Z Y
F-7
WIDE
F-1
ROLL
F-4
MEMORY
EXIT/SET
