9-8

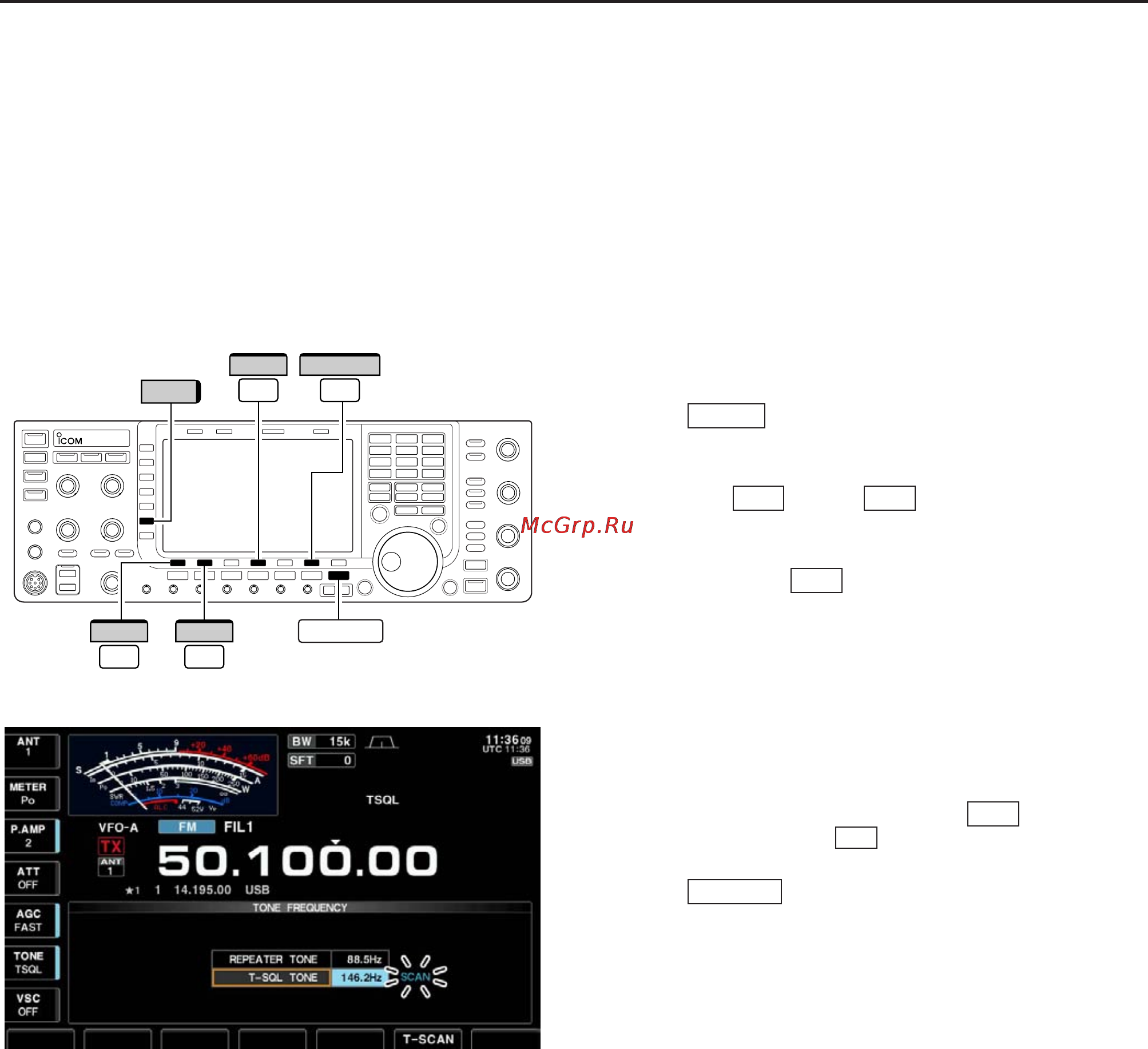

■ Tone scan
The transceiver can detect subaudible tones in a re-
ceived signal. By monitoring a signal that is being
transmitted on a repeater input frequency, you can de-
termine the tone frequency required to access the re-
peater.
q Set the desired frequency or memory channel to be
checked for a tone frequency.
w Push several times to select FM mode.
e Push and hold [TONE]
(MF6)
for 1 sec. to enter tone
frequency screen.
r Push [Y] or [Z] to check the repeater
tone frequency or tone squelch frequency, respec-
tively.
t Push [T-SCAN] to start the tone scan.
• “SCAN” blinks while scanning.
y When a matching tone frequency is detected, the
tone scan pauses.
• The tone frequency is set temporarily on a memory
channel. Program the memory channel to store the tone
frequency permanently.
• The decoded tone frequency is used for the repeater
tone frequency or tone squelch frequency.
u To stop the scan, push [T-SCAN] .
• Push and hold [DEF] for 1 sec. to select the default
frequency.
i Push to exit tone frequency screen.
EXIT/SET
F-4
F-6
F-6
F-2F-1
AM/FM
EXIT/SET
F-1
∫
F-2
√
F-4 F-6
T-SCAN
DEF
TONE
9
SCANS
