Si-71A Troubleshooting by Remote Controller Display / LED Display
Troubleshooting 105
6.7 Failure of Capacity Setting
Remote Controller
Display
$-
$-$-
$-
Applicable Models
FH(Y)C, FH(Y), FUY, FAY
Method of
Malfunction
Detection
Capacity is determined according to resistance of the capacity setting adaptor and the memory inside the
IC memory on the indoor unit PC board, and whether the value is normal or abnormal is determined.
Malfunction
Decision
Conditions
Operation and:
(1)When the capacity code is not contained in the PC board’s memory, and the capacity setting adaptor is
not connected.
(2)When a capacity that doesn’t exist for that unit is set.
Supposed Causes
„
Failure of capacity setting adaptor connection
„
Failure of indoor unit PC board
Troubleshooting
Note:
Capacity is factory set in the data IC on the PC board. A capacity setting adaptor that matches the capacity
of the unit is required in the following case.
If the indoor PC board installed at the factory is for some reason changed at the installation site, the
capacity will not be contained in the replacement PC board.
If you connect a capacity setting adaptor to a PC board in which the capacity is memorized, the capacity
setting for the PC board will become the capacity setting of the adaptor. (Priority of capacity setting
adaptor)

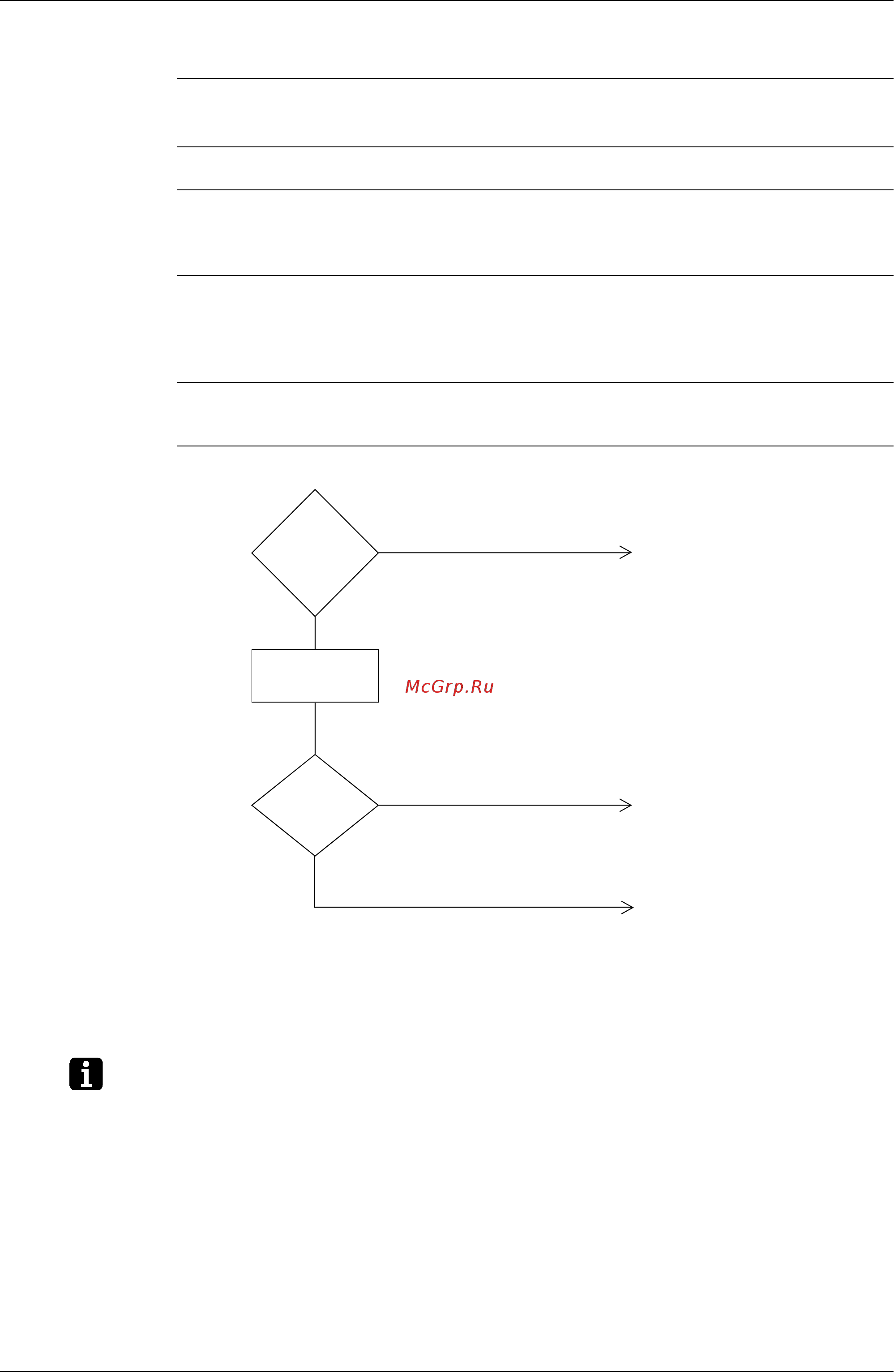

Turn the power
supply off once and
back on.
Is AJ
displayed on the
remote controller?
YES
YES
Plug a capacitor setting adaptor
that matches the capacity of the
unit into X23A. (See note)
Indoor unit PC board
replacement
Could be outside cause (noise,
etc.) other than malfunction.
Is
the
capacity
setting adaptor
plugged into X23A
of the indoor
unit PC
board?
NO
(SF009)
