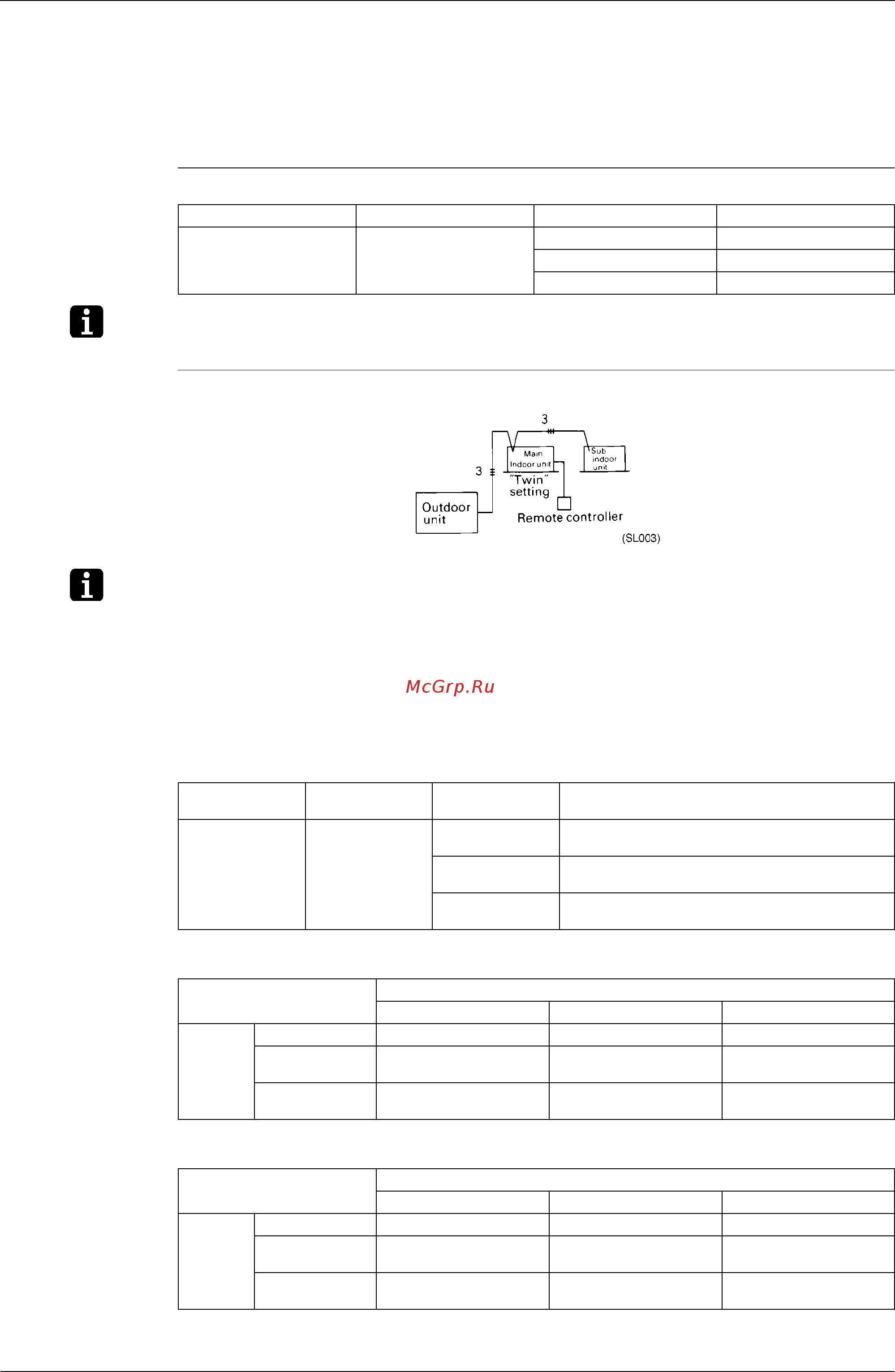

Daikin FHYB45FV1 [35/244] Detailed explanation of setting modes
![Daikin FHK45FJV1 [35/244] Detailed explanation of setting modes](/views2/1764299/page35/bg23.png)
Method of Field Set (Reset after Maintenance Inspection/Repair) Si-71A
24 Explanation of Field Set
1.5 Detailed Explanation of Setting Modes
1.5.1 No. of Connected Twin System Indoor Units
If using as twin system, switch the second code No. according to the number of units connected as given in
the table below. The second code No. is factory set to “01” (No. of connected units = 1).
Setting Table
Note:
Triple is only for R(Y)140K series.
Example
Note:
1. If set incorrectly, a connection mistake malfunction (remote controller display UA) will result. (3 minutes
after turning the power ON is required for detection.)
2. If different models are used in combination, designate the unit that is equipped with the most functions
as the main unit.
1.5.2 Ceiling Type Setting Switch for Air Flow Adjustment
Make the following setting according to the ceiling height. The setting position No. is set to “01” at the
factory.
„
In the Case of FHY and FAY
„
In the Case of FUY
„
In the Case of FHYC (35 to 71 class)
Mode No. First Code No. Second Code No. Setting
11(21) 0 01 Pair (1)
02 Twin (2)
03 Triple (3) Note
Mode No. Setting Switch
No.
Setting Position
No.
Setting
13(23) 0 01 Ceiling-suspended type: Lower than 2.7 m Wall-
mounted type: Standard
02 Ceiling-suspended type: Approx. 2.7 to 3.5 m Wall-
mounted type: Slight increase
03 Ceiling-suspended type: Not used Wall-mounted
type: Normal increase
No. of Air Outlets Used
4-way Outlets 3-way Outlets 2-way Outlets
Ceiling
Height
Standard (N) Lower than 2.7 m Lower than 3.0 m Lower than 3.5 m
High Ceiling
c#
(H)
Lower than 3.0 m Lower than 3.5 m Lower than 3.8 m
Higher Ceiling
d#
(S)
Lower than 3.5 m Lower than 3.8 m —
No. of Air Outlets Used
4-way Outlets 3-way Outlets 2-way Outlets
Ceiling
Height
Standard (N) Lower than 2.7 m Lower than 3.0 m Lower than 3.5 m
High Ceiling
c
(H)
Lower than 3.0 m Lower than 3.3 m Lower than 3.8 m
Higher Ceiling
d#
(S)
Lower than 3.5 m Lower than 3.5 m —
