For FHY71F Si-71A
142 Removal Procedure
2. For FHY71F

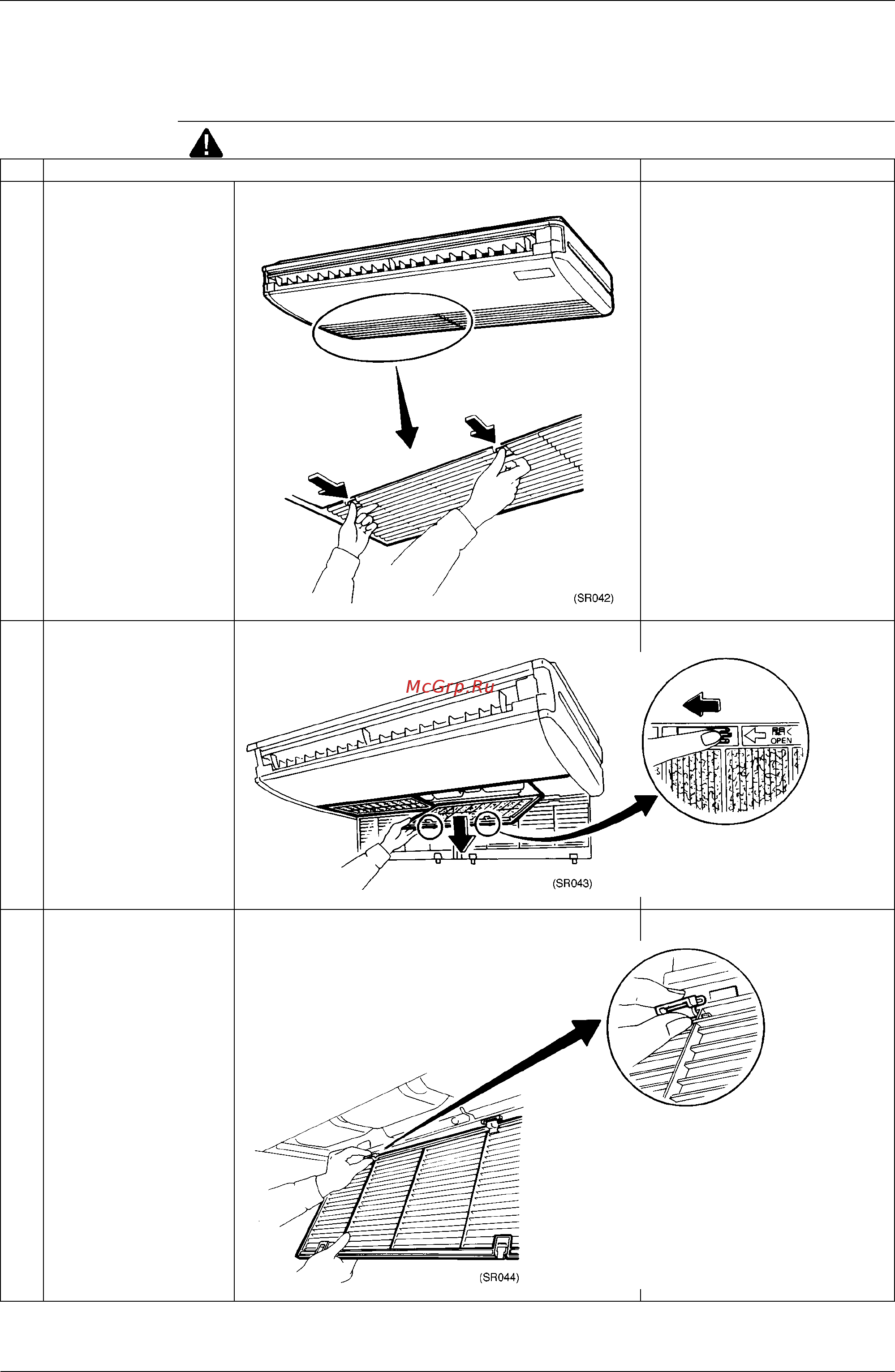

2.1 Removal of Air Filter and Suction Grille
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
1 The air filter is mounted
behind the suction grille.
2 Push the 2 tabs and open
the suction grilles.
3 Push the air filter installation
panel from 2 places in the
direction of the arrow, and
pull the air filter out toward
yourself.
4 Grip the air filter installation
filter installation tabs and
remove the air filter.
5 Remove the suction grille.
