Daikin FHYB45FV1 [180/244] Removal of drain pan
![Daikin FHYB45FV1 [180/244] Removal of drain pan](/views2/1764299/page180/bgb4.png)
Si-71A For FAY71F (A)
Removal Procedure 169

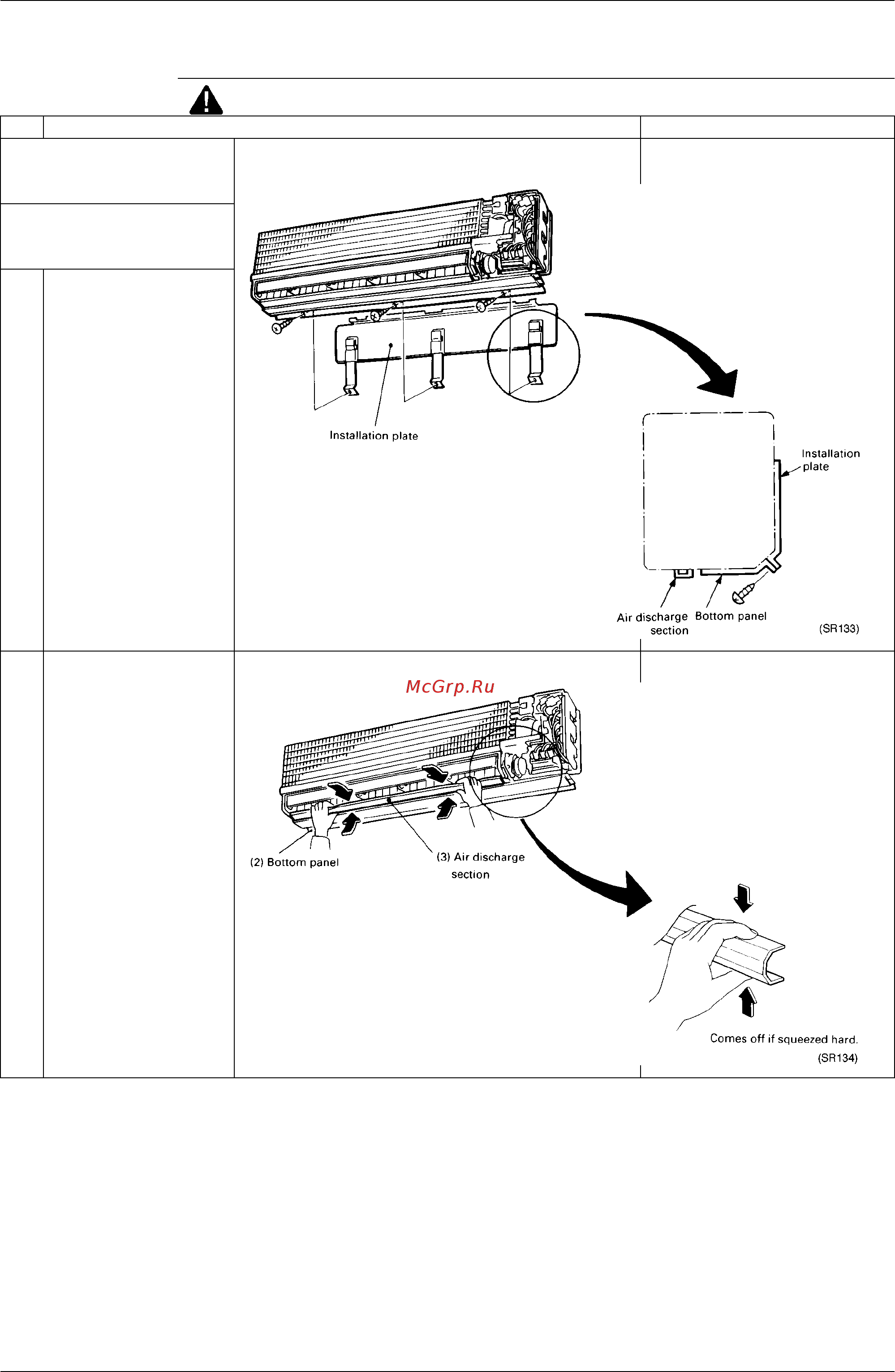

4.7 Removal of Drain Pan
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
∗
If removing the drain pan: Carry
out pump down, disconnect the
transmission piping and wiring, and
remove the main unit.
The bottom panel is fastened to the
unit installation plate by 3 screws.
∗
Remove side panels, operation
display cover and front cover
according to their removal
procedures.
1 Remove the bottom panel.
2 Remove the air discharge
section.
