Si-71A For FUY71/100/125FJ
Removal Procedure 157
3.4 Removal of Fan Motor
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Poins

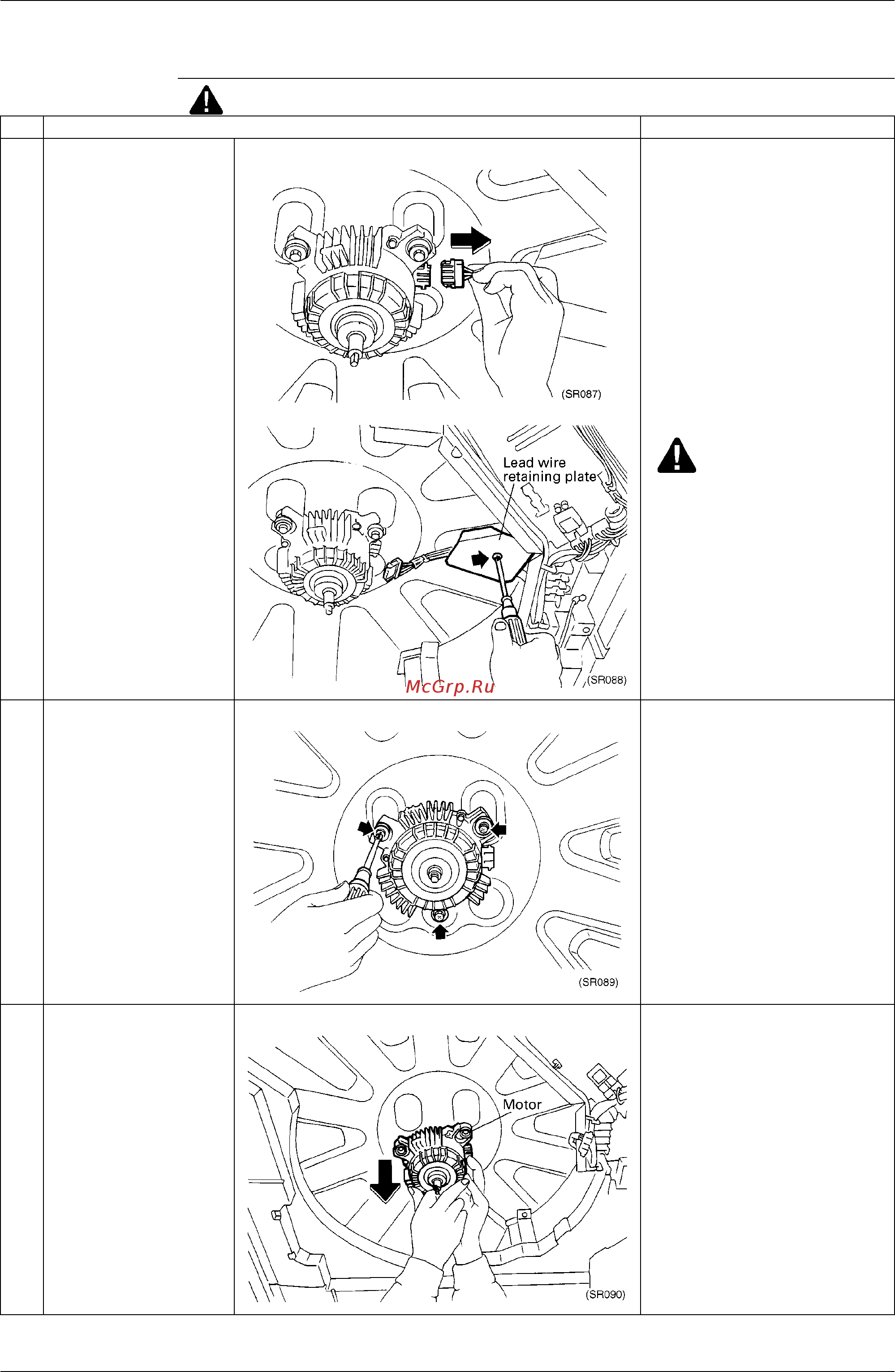

1. Removing fan motor
a. Disconnect connector
b. Remove lead wire
retaining plate
Caution
∗
Fan motor can be removed without
removing the lead wire retaining plate.
However, when washing the heat
exchanger, this plate should be
removed and protect the lead wires.
2. Remove screws for
mounting fan motor.
∗
FUY71FJV1 :
Three screws
∗
FUY100/125FJV1 :
Four screws
3. Remove motor by pulling
down.
