Troubleshooting by Remote Controller Display / LED Display Si-71A
118 Troubleshooting
6.20 Reverse Phase
Remote Controller
Display
84
8484
84
Outdoor Unit LED
Display
A(H1P)
ñ
1(H2P)
ó
2(H3P)
ò
Applicable Models
R(Y)
„
3-phase equipment only
Method of
Malfunction
Detection
Reverse phase detection circuit detects the phase of each phase and determines whether it is normal or
reverse phase.
Supposed Causes
„
Failure of power supply wiring connection
„
Power supply wiring is broken or disconnected.
„
Failure of outdoor unit PC board

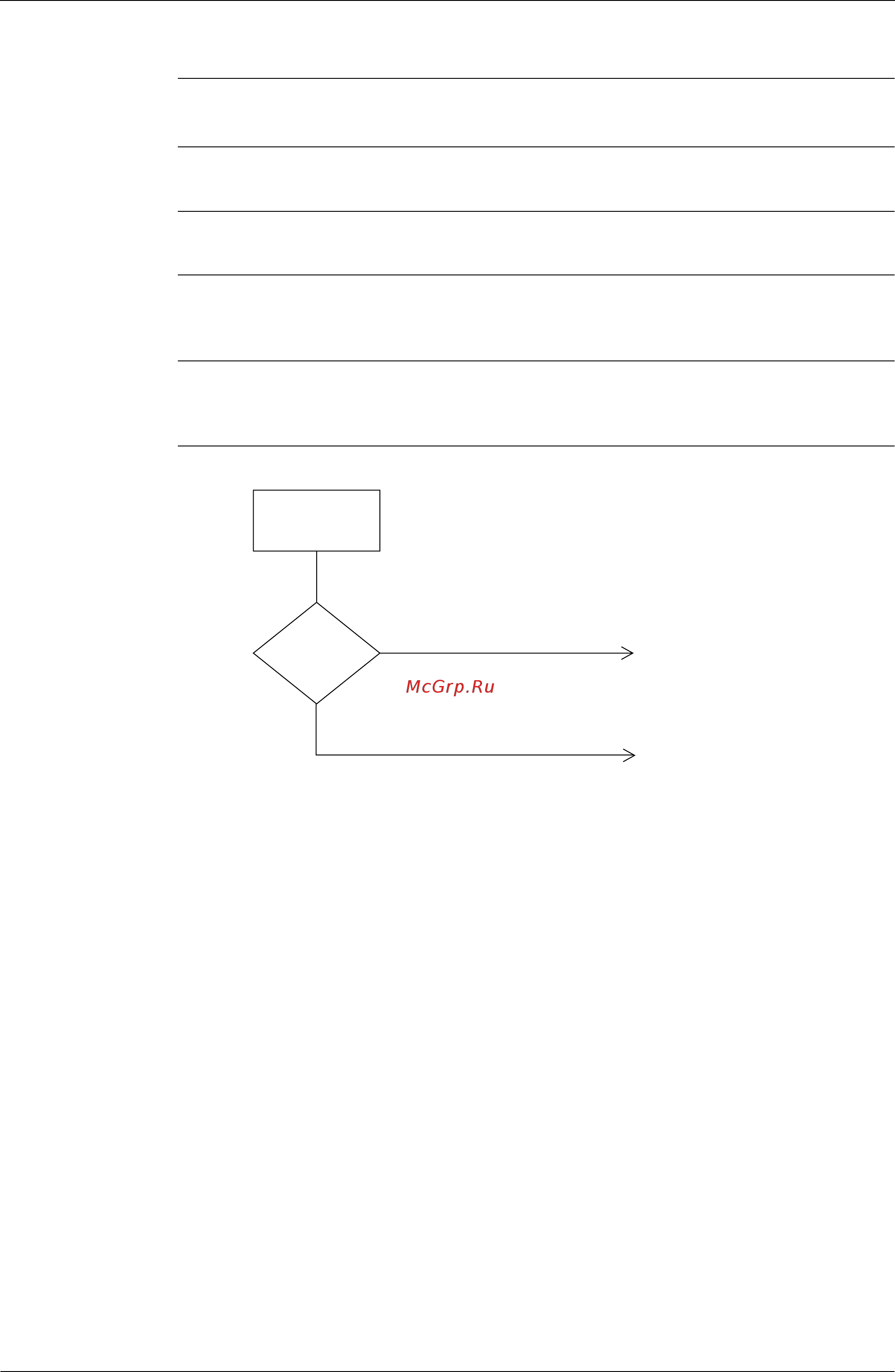

Troubleshooting
Turn the power
supply off once and
then back on.
Is U1
displayed on the
remote controller?
YES
Could be outside cause (noise,
etc.) other than malfunction.
Outdoor unit PC board
replacement
(SF022)
NO
