Si-71A For FHY71F
Removal Procedure 145

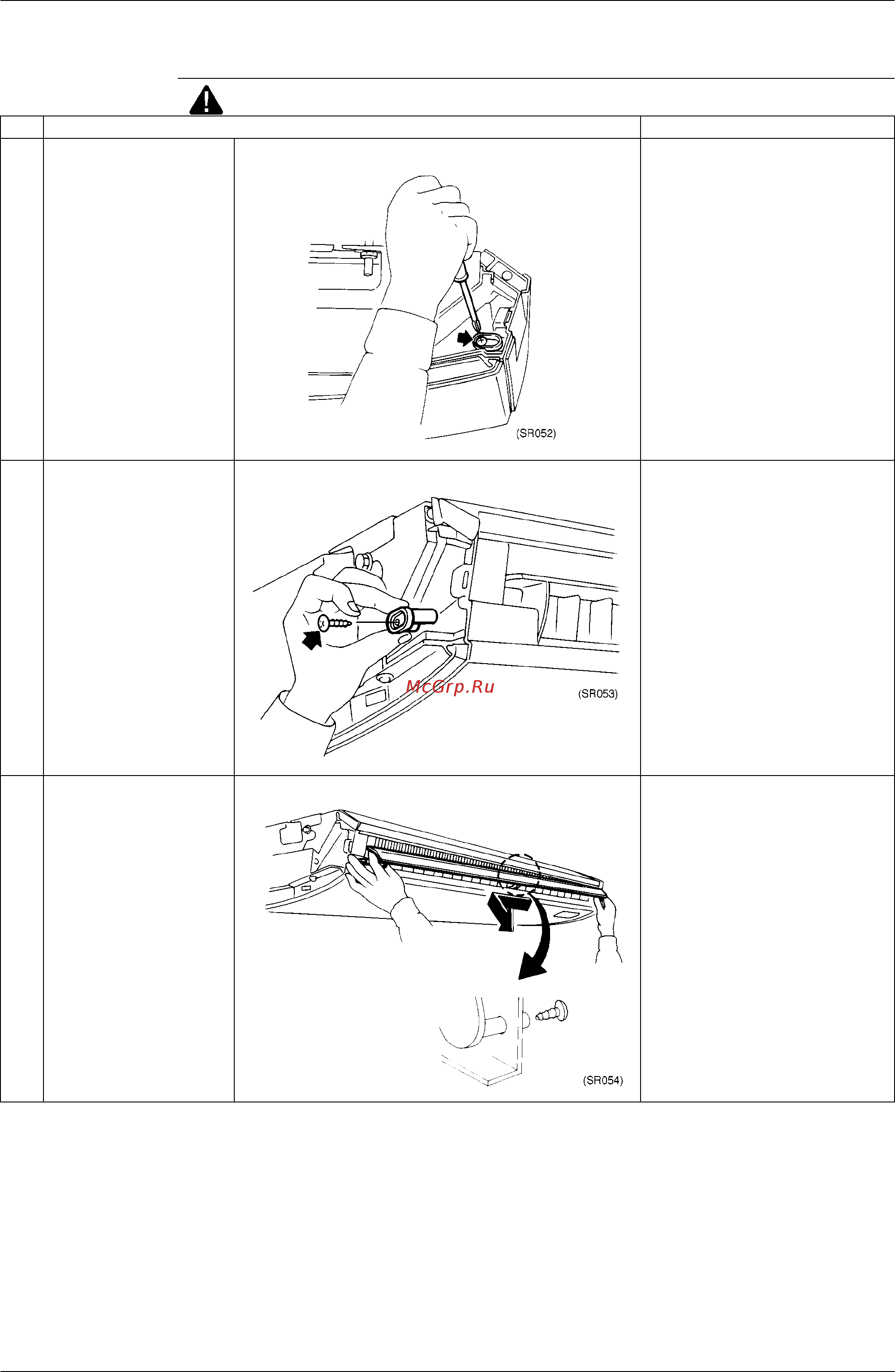

2.3 Removal of Horizontal Blade
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
1 Remove the left side panel
according to the procedure
for removing the fan bearing.
2 Remove the screw of the
horizontal blade fastener.
3 Slide the horizontal blade to
the left with both hands, pull
it out forward, and remove.
(For unit with set screws on
the central shaft, perform
this operation after removing
the screws.)
