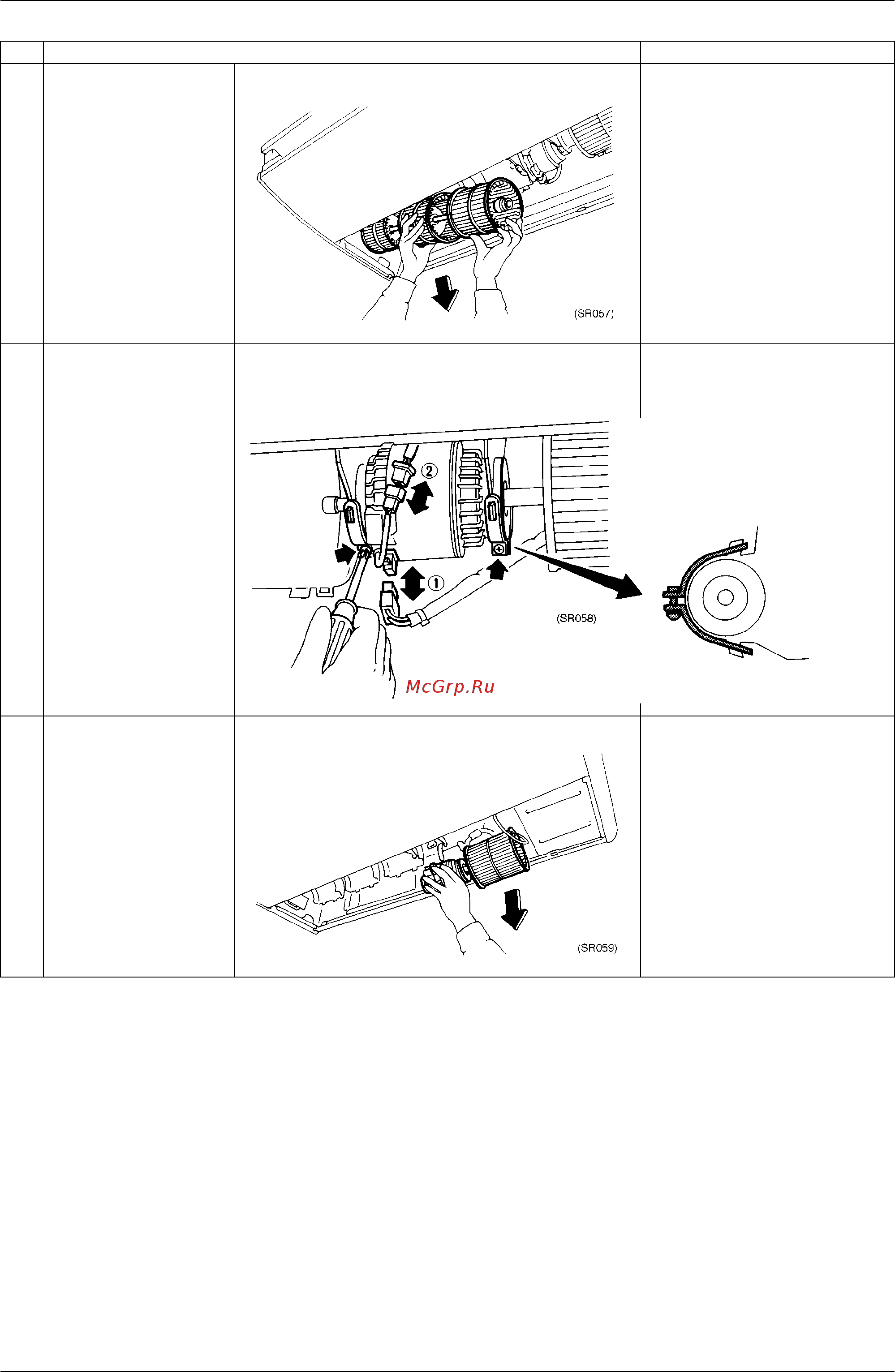

Si-71A For FHY71F
Removal Procedure 147
3 Slide the intermediate
bearing to the right and
remove the fan rotor ass’y.
4 Disconnect the 2 fan motor
connecting connectors.
2 connectors
Connector (1) handles high voltage
(220-240 V), so be sure to turn of the
power supply before disconnecting.
5 Remove the 2 fan motor
fasteners.
6 Remove the fan motor.
Step Procedure Points
