Si-71A For FUY71/100/125FJ
Removal Procedure 159

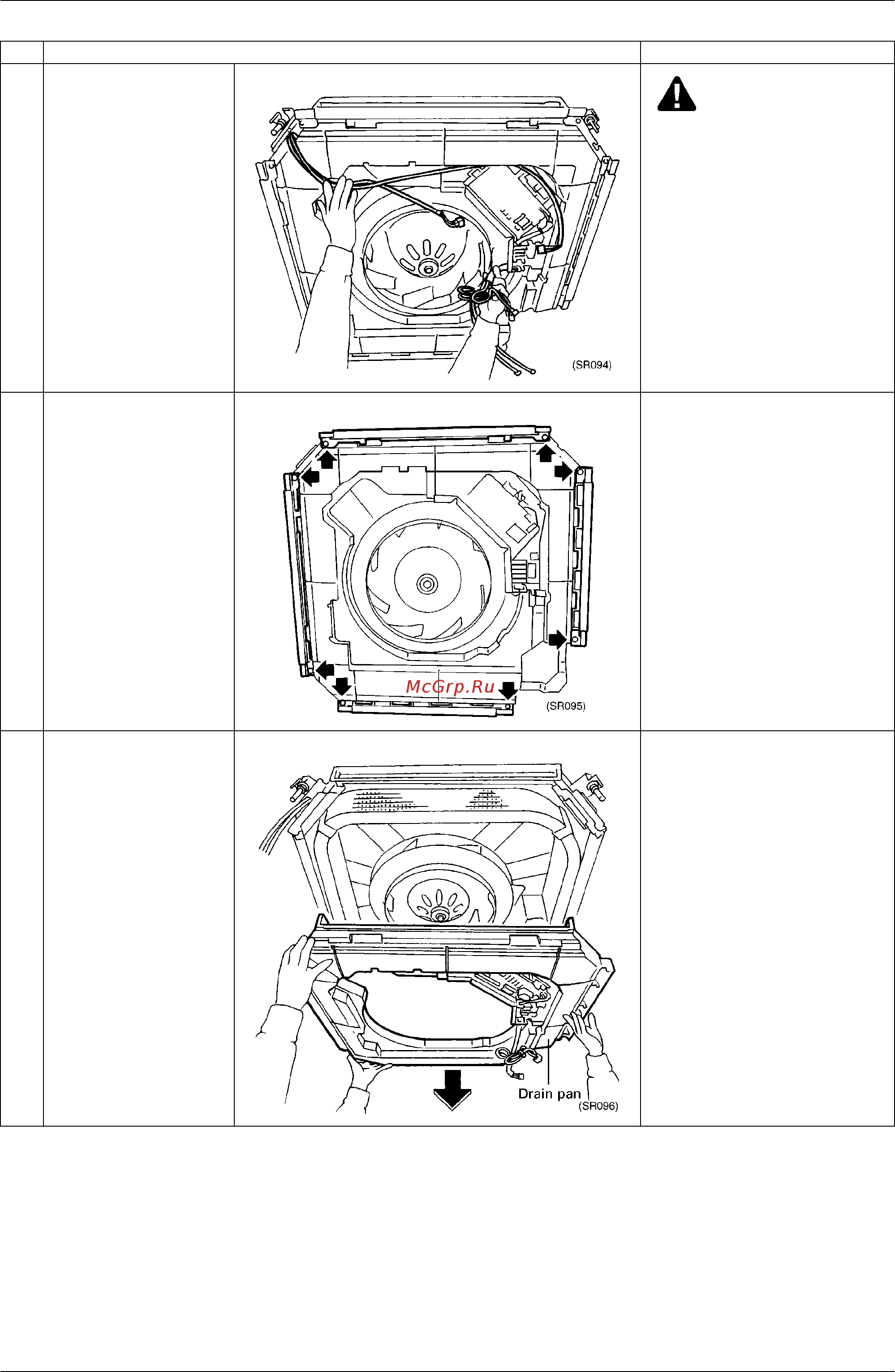

4. Arrange wire harness to
avoid interference with next
process.
Caution
∗
This work should be done by two
personnel.
∗
If drain water remain in the pan, it may
drop and stain on the floor.
Make sure to check if no drain water
remain in the pan, or cover the floor
with vinyl sheet before disassembling
work.
5. To dismount drain pan
blocking plate, remove each
two mounting screws
located at four corners.
6. Remove drain pan by pulling
it down.
Step Procedure Points
