Si-71A For FUY71/100/125FJ
Removal Procedure 155
3.3 Removal of Fan
Procedure
Warning Be sure to turn off all power supplies before disassembling work.

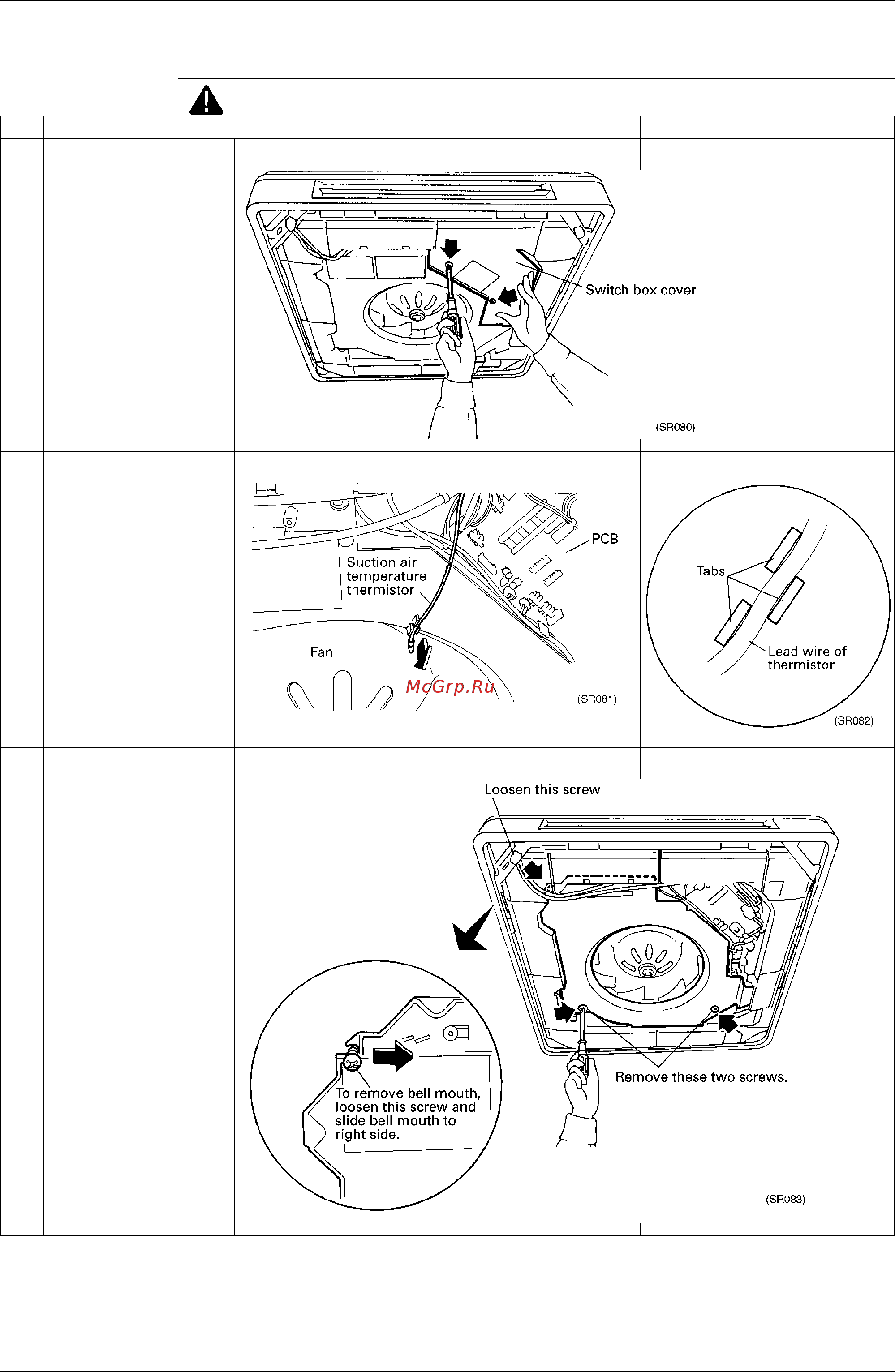

Step Procedure Points
1. Remove two mounting
screws to dismount switch
box cover.
2. Remove suction air
temperature thermistor
attached to bell mouth.
3. Bell mouth is mounted with
tree screws.
Loosen a screw located at
diagonal position to the
pipings and remove other
two screws.
