Si-71A For R(Y)71K
Removal Procedure 185

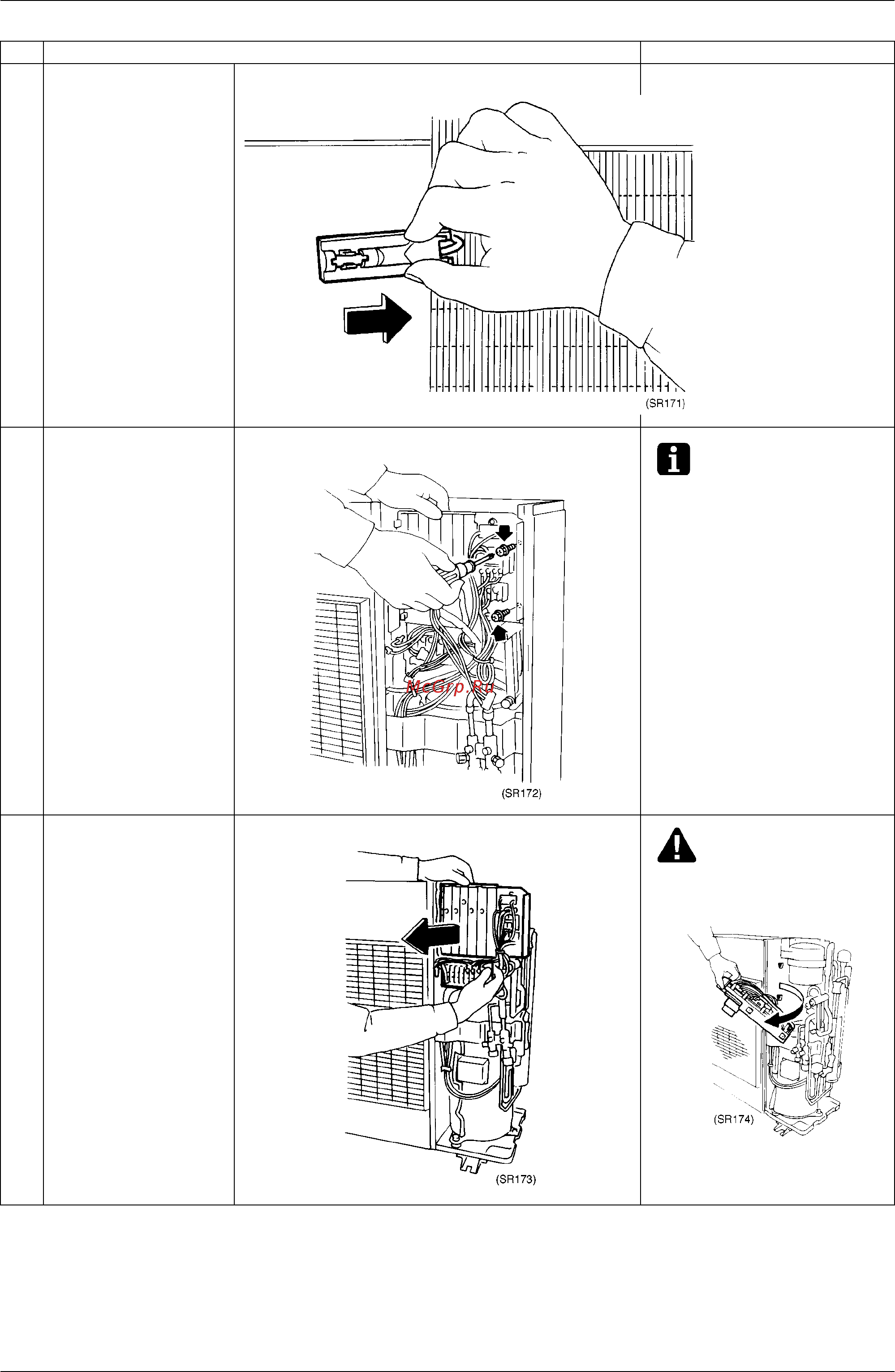

3) Remove the ambient air
thermistor.
2 Disconnect the motor
operated valve coil, and
crank case heater
connectors from the PC
board.
Note :
If not dismounting the rear/side casing,
remove the 2 screws of the electrical
parts box.
3 Remove the electrical parts
box installation screw.
4 Remove the electrical parts
box by pulling it toward
yourself and lifting.
Caution
Be careful of the lead wire protruding
from the rear surface of the electrical
parts box.
