Si-71A For FUY71/100/125FJ
Removal Procedure 153
3. For FUY71/100/125FJ

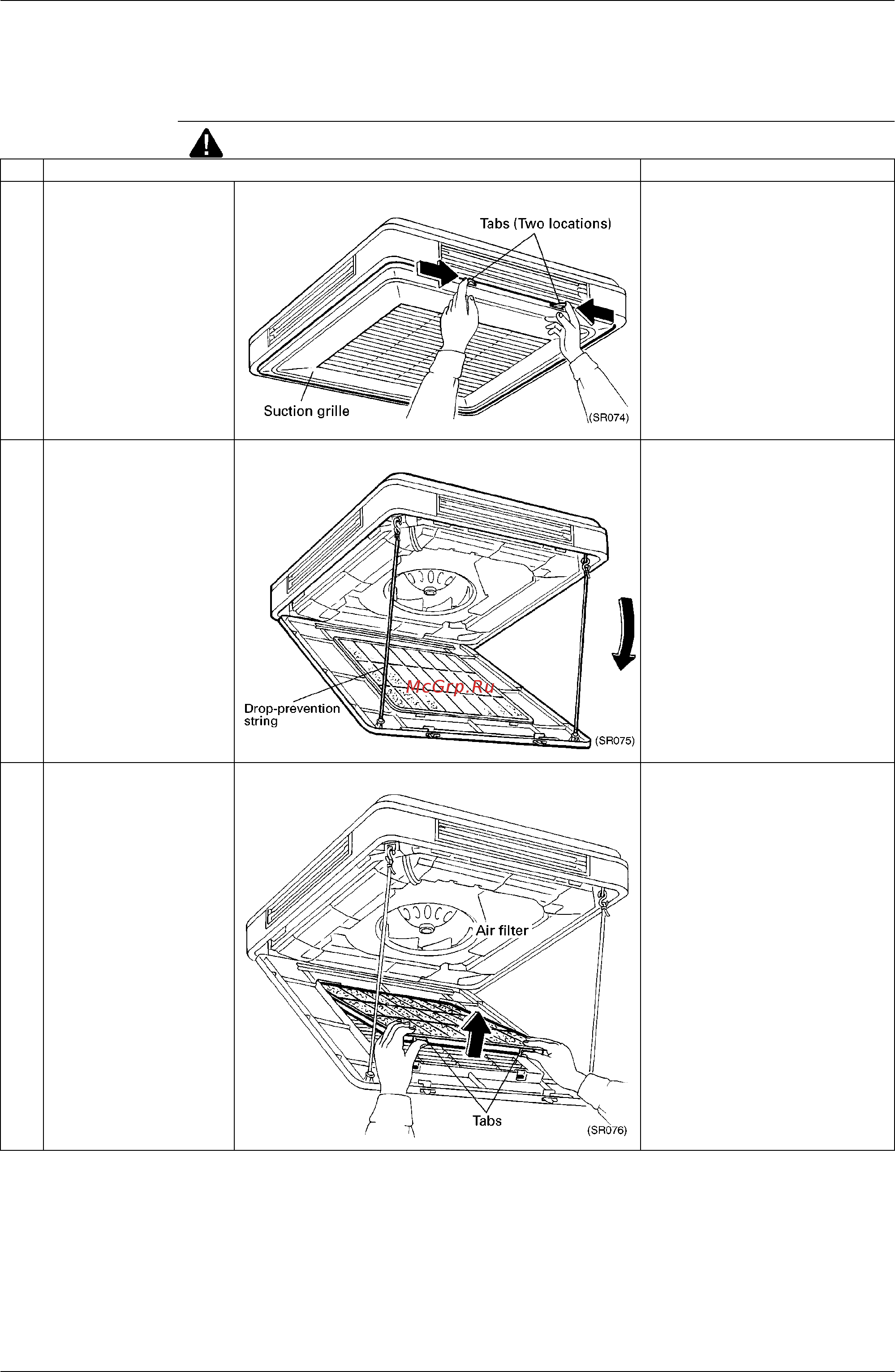

3.1 Removal of Air Filter
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
1 Opening suction grille
Push two tabs on suction
grille toward the center of
grille at the same time.
2 Pull down suction grille.
(Two strings are equipped to
prevent the grille from
dropping.)
3 To remove air filter, lift the
tabs up at the same time and
pull it forward.
