For FAY71F (A) Si-71A
172 Removal Procedure

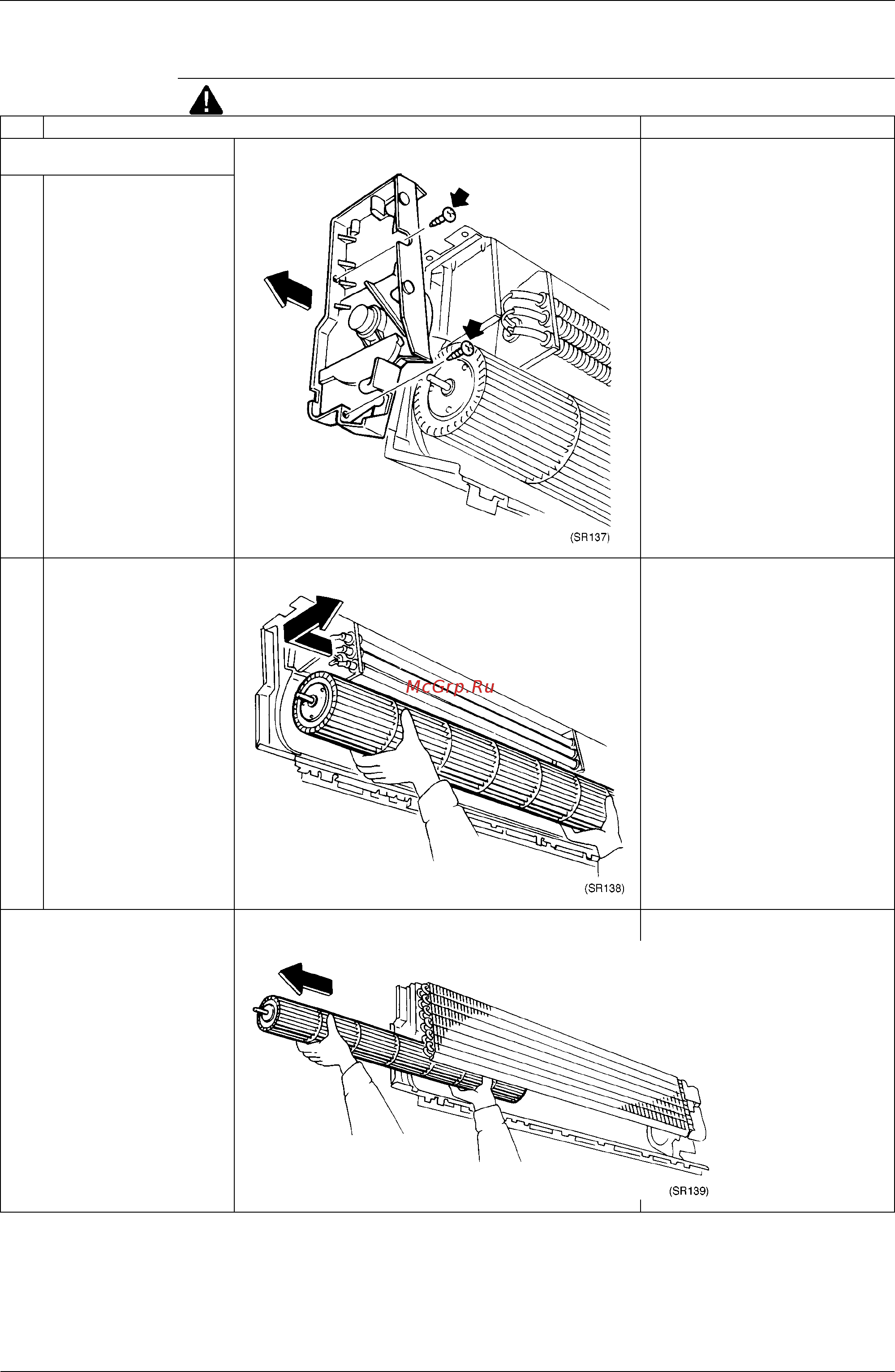

4.9 Removal of Fan Rotor
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
∗
Remove the heat exchanger
according to its removal procedure.
You can also remove the auxiliary
electric heater without removing the
heat exchanger.
1 Remove the 2 screws of the
left side panel.
2 Remove the fan rotor by
sliding to the left and pulling
out toward yourself.
Reference
If you have enough space to pull
the fan rotor out from the left side,
you can remove it without
dismounting the heat exchanger.
