Si-71A For FAY71F (A)
Removal Procedure 167
4.5 Removal of Swing Louvre Unit
Procedure
Warning Be sure to turn off all power supplies before disassembling work.

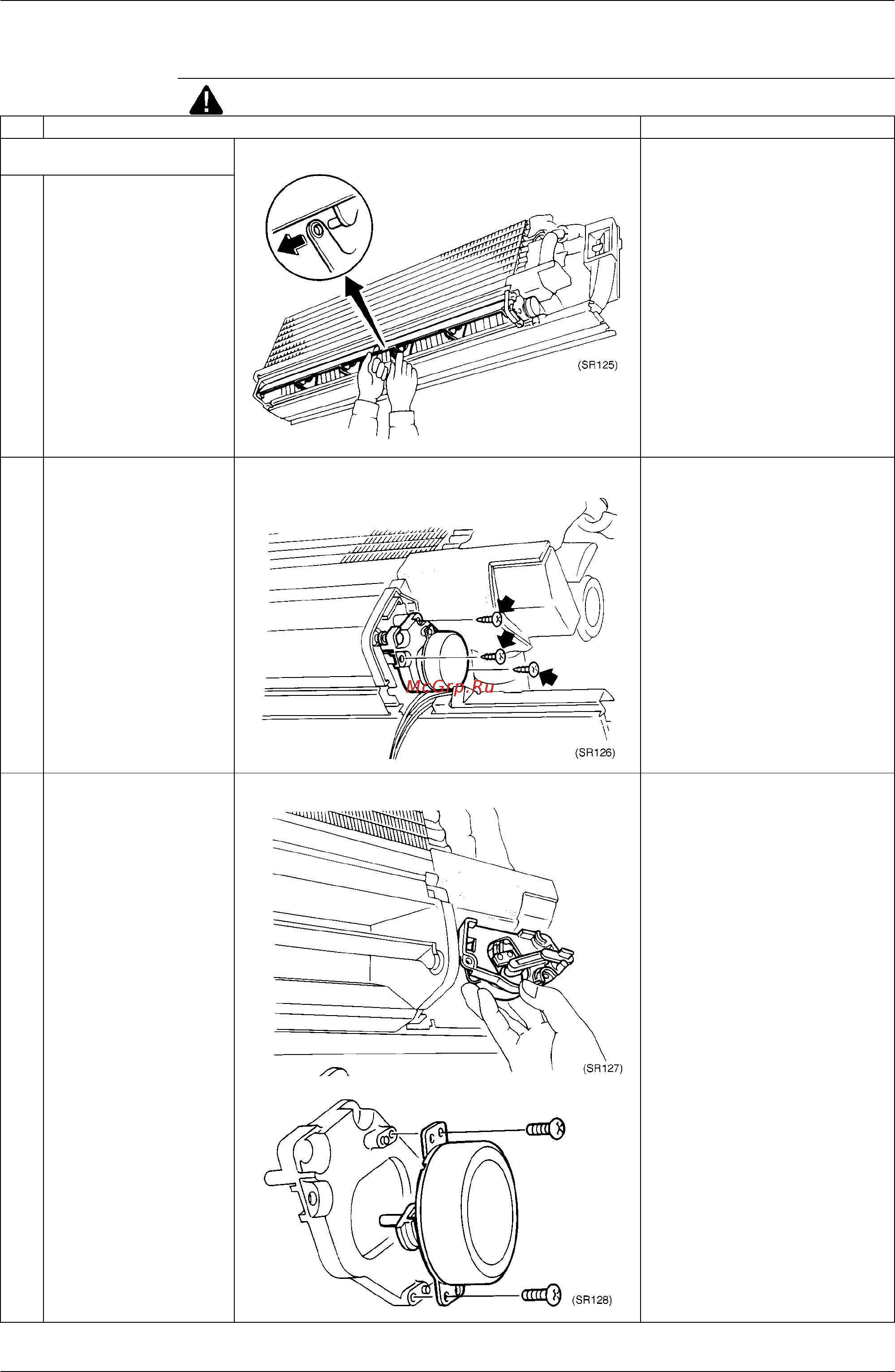

Step Procedure Points
∗
Remove the electrical parts box
according to its removal procedure.
1 Remove the horizontal
blade.
2 Remove the swing Louvre
unit. (3 screws)
3 Remove the swing motor
from the swing Louvre unit.
You can replace the swing motor
without removing the swing Louvre
unit.
