For FHYC71K Si-71A
130 Removal Procedure

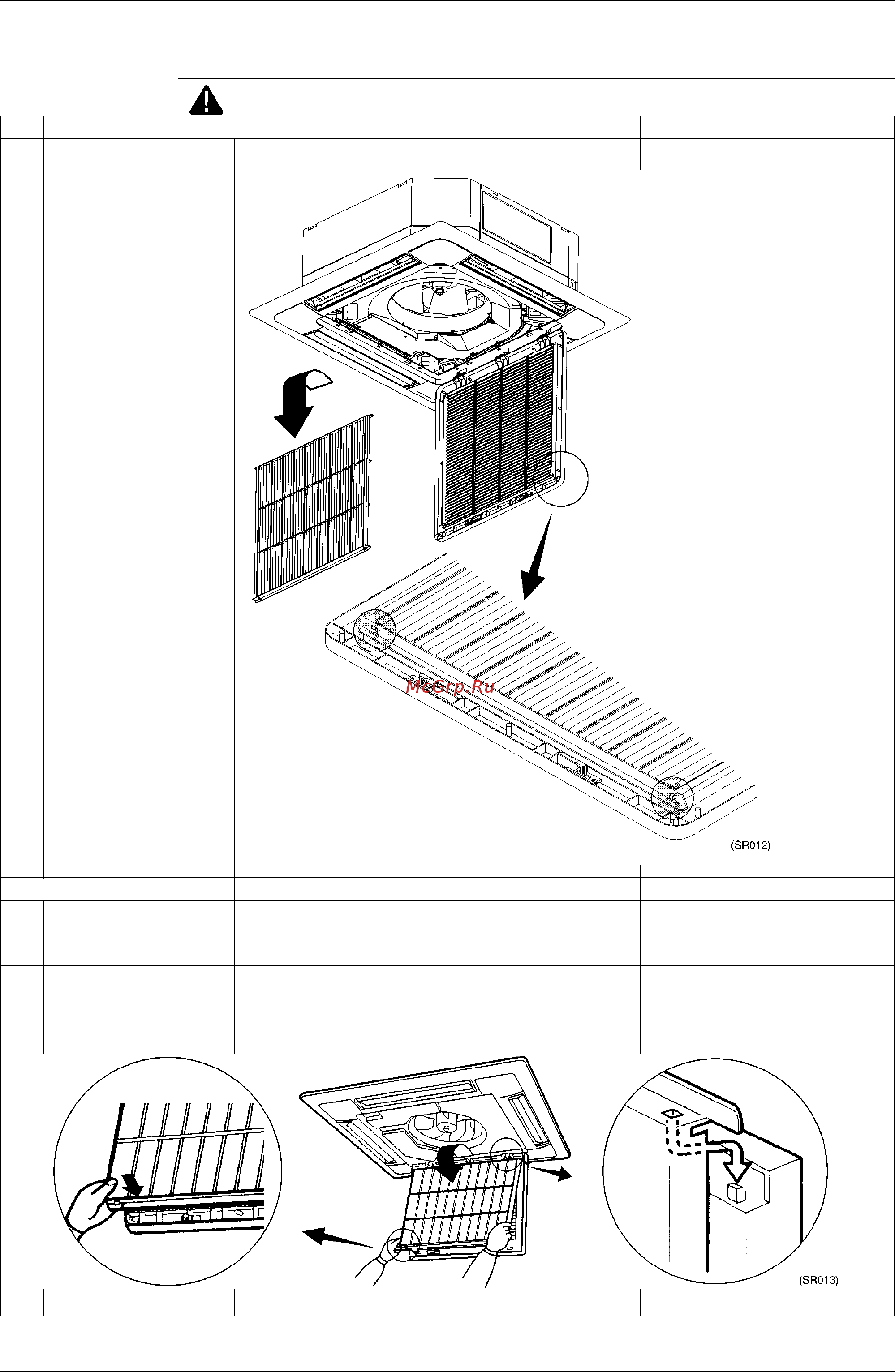

1.4 Removal of Air Filter
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
1 Open the suction grille. (See
the removal procedure of
suction grille.)
2 Disengage the hooks of the
air filter by pulling the filter
downward at an angle, and
remove the filter.
∗
Installation of the air filter (2)
1 Hook the air filter to the
protrusions located at the
top section of the suction
grille.
2 Push the lower section of the
air filter into the protrusions
located at the bottom section
of the suction grille to secure
the air filter in place.
