Method of Field Set (Reset after Maintenance Inspection/Repair) Si-71A
20 Explanation of Field Set
1.2.2 Wireless Remote Controller
Note:
If optional accessories are mounted on the indoor unit, the indoor unit setting may have to be changed.
Refer to the instruction manual (optional hand book) for each optional accessory.

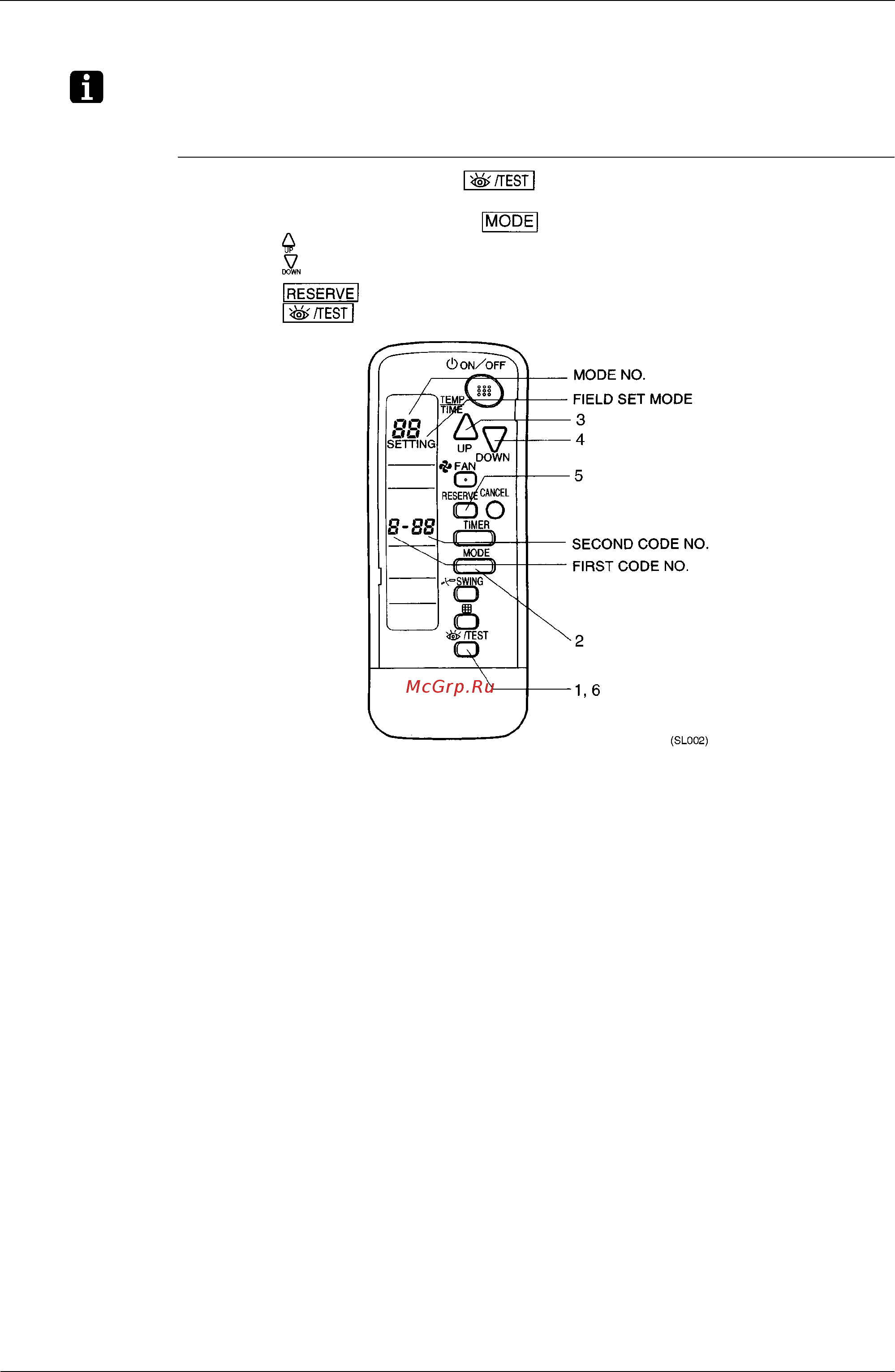

Procedure
1. When in the normal mode, push the “ “ button for a minimum of four seconds, and the
FIELD SET MODE is entered.
2. Select the desired MODE NO. with the “ “ button.
3. Push the “ “ button and select the FIRST CODE NO.
4. Push the “ “ button and select the SECOND CODE NO.
5. Push the “ “ button and the present settings are SET.
6. Push the “ “ button to return to the NORMAL MODE.
