Si-71A For FVY71L~125L
Removal Procedure 177

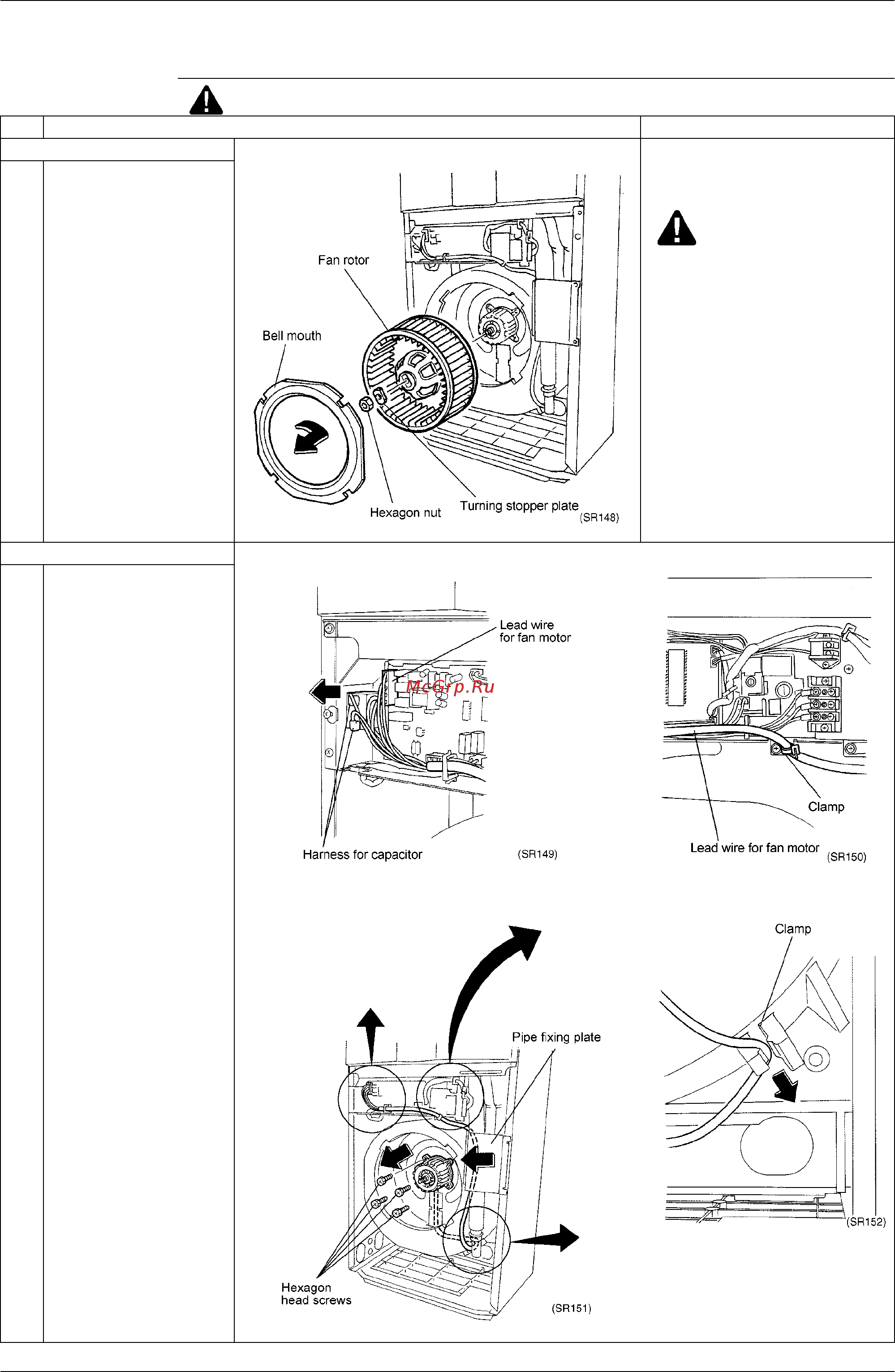

5.3 Removal of Fan Rotor and Fan Motor
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
Removing fan rotor
1 Turn bell mouth in CW to
remove it.
2 Remove hexagon nut and
turning stopper plate to
disassemble fan rotor.
Caution
When reassembling be sure to clamp
wires.
Removing fan motor
1 Disconnect lead wire for fan
motor and harness for
capacitor from switch box.
2 To dismount pipe-fixing
plate, remove a screw and
slide the plate to left side.
3 To remove wire-fixing plate,
remove two screws and slide
the plate upward.
4 Remove four hexagon head
screws to dismount fan
motor.
