Si-71A For R(Y)71K
Removal Procedure 189
4

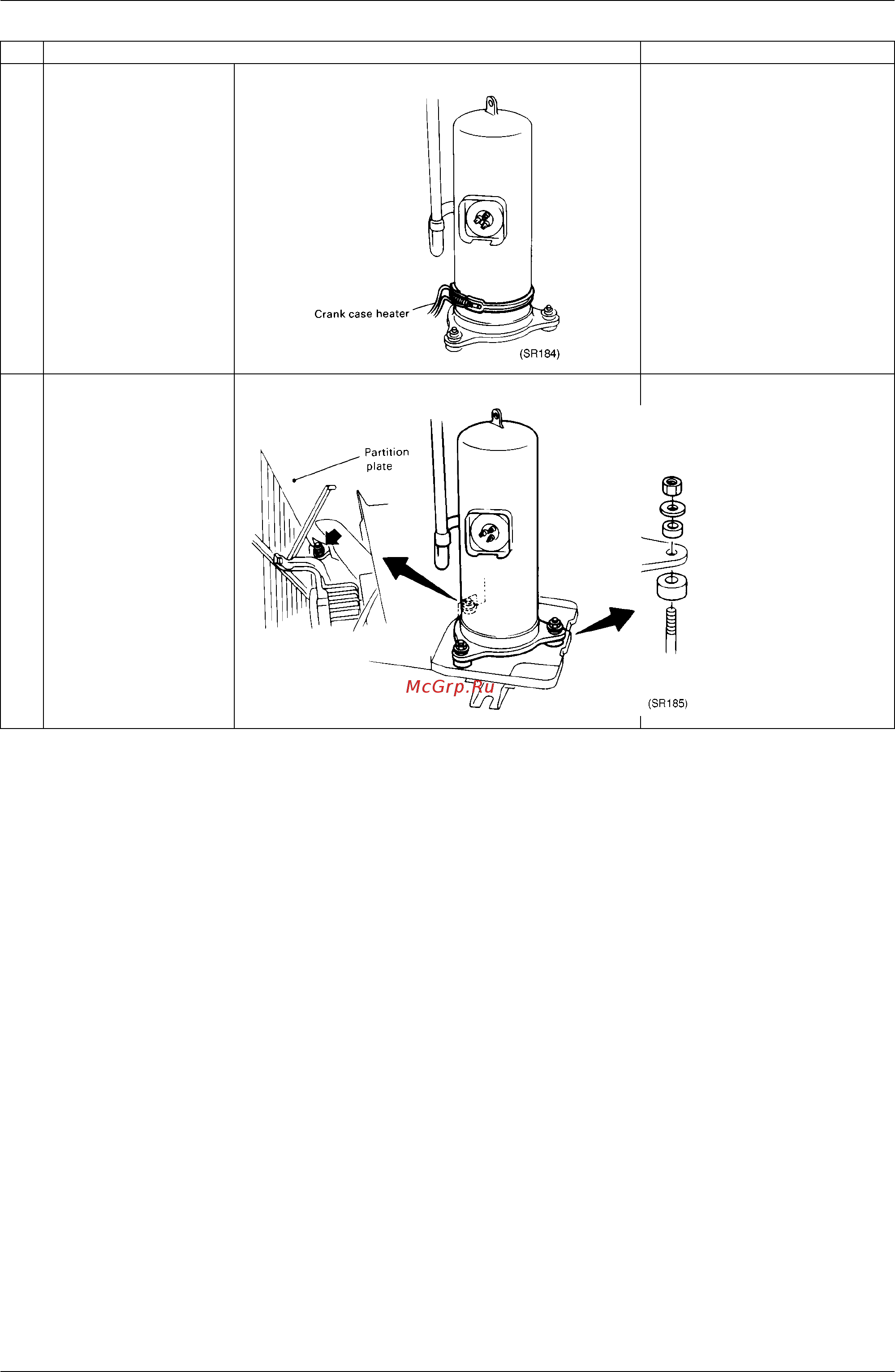

Disconnect the crank case
heater’s spring and remove
the heater.
5
Remove the compressor’s 3
washer based nuts.
Use a T-type box spanner.
6
Lift the compressor slightly
and draw out toward
yourself.
