For FVY71L~125L Si-71A
178 Removal Procedure
5.4 Removal of Swing Motor
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points

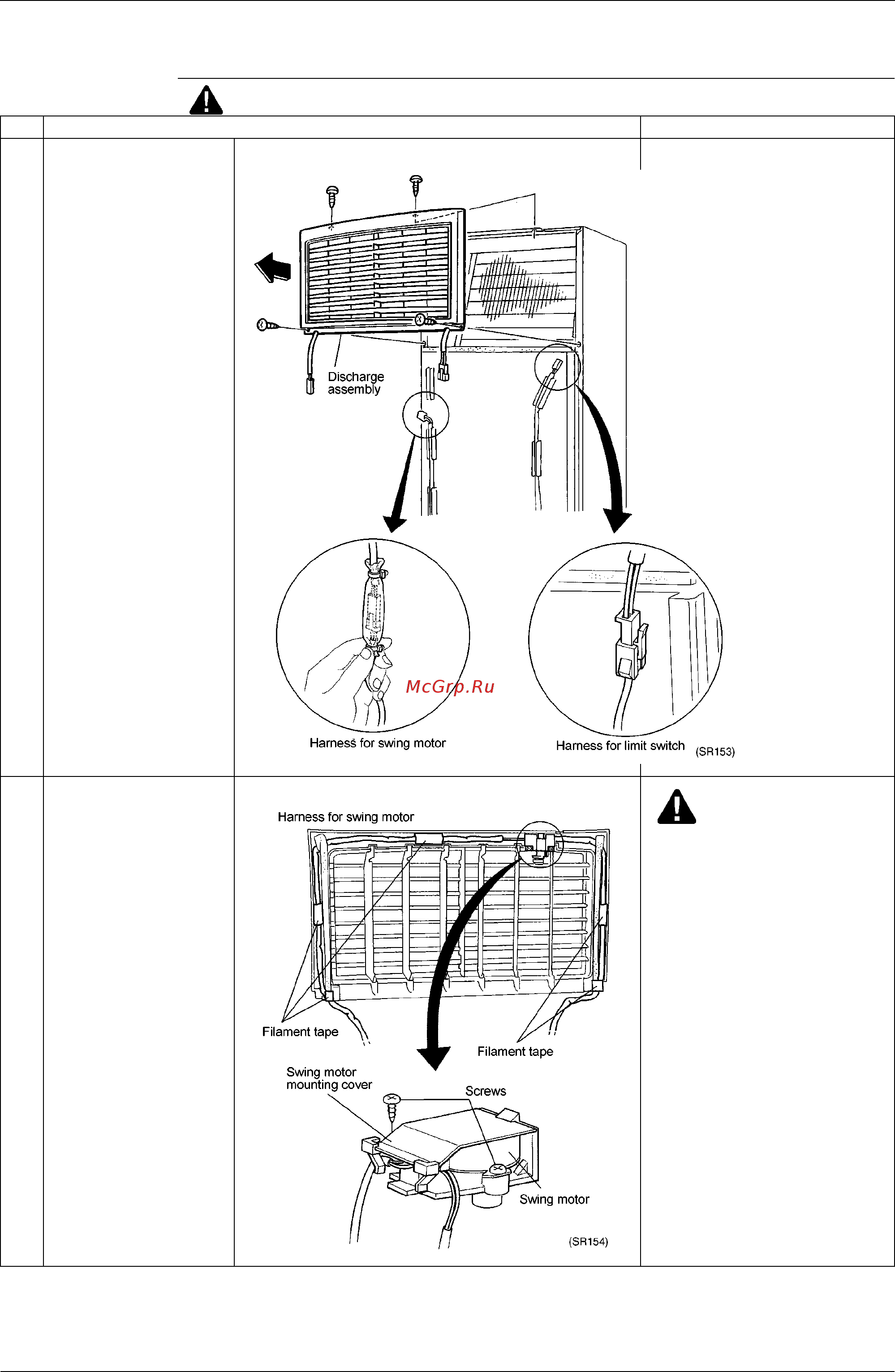

1 Disconnect harness for
swing motor and one for limit
switch at connector section.
2 Remove four screws to
dismount discharge
assembly.
3 Remove two screws to
dismount swing motor
assembly.
Caution
∗
Two of eight horizontal blades
located at top and bottom position can
be moved by hand
individually, while rest six blades are
linked to move by hand at the same
time.
4 Disengage hooks on swing
motor mounting plate cover
and remove two screws.
Then, remove swing motor.
