For FHYC71K Si-71A
136 Removal Procedure

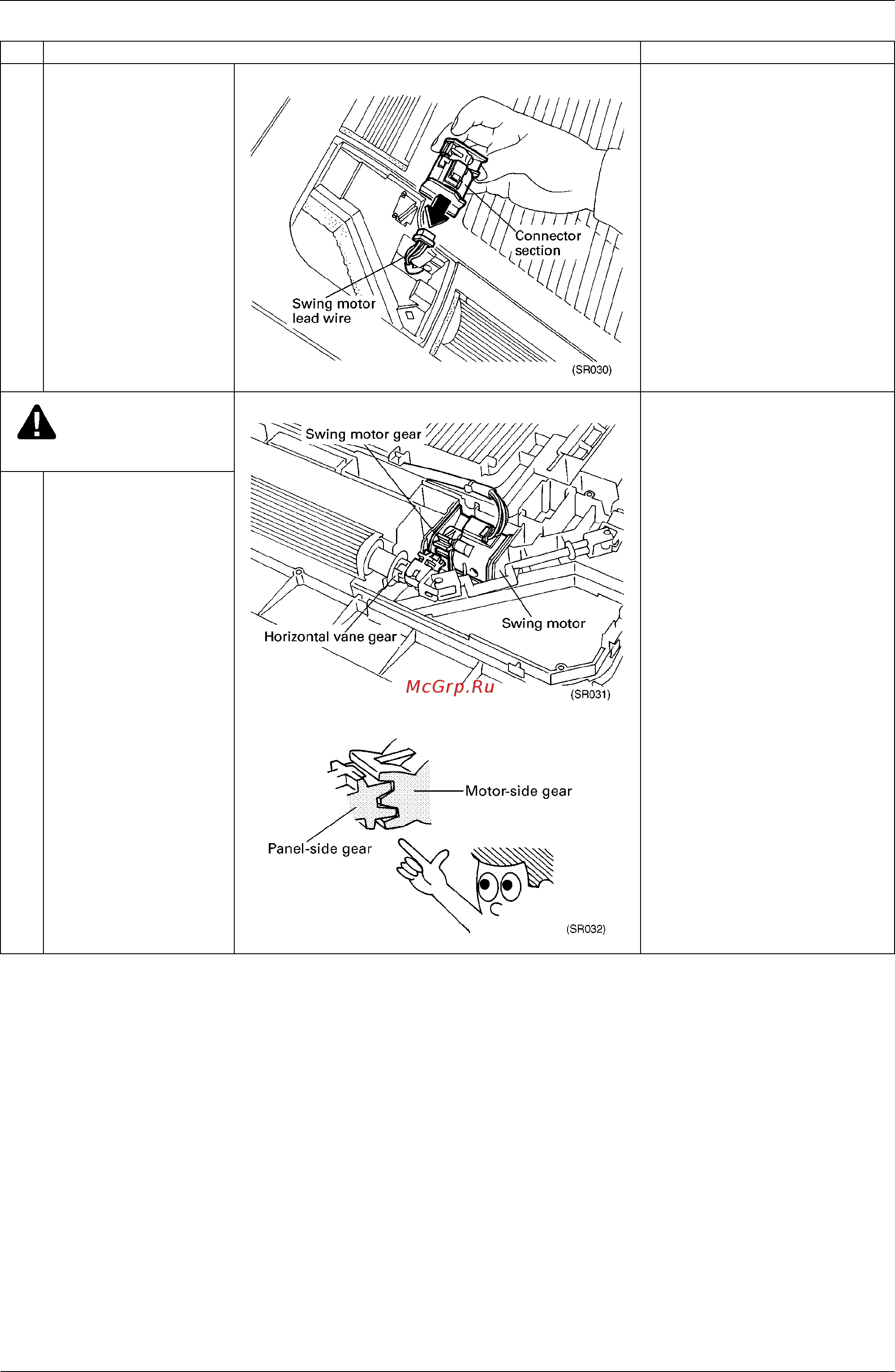

4 Disconnect the connector of
the swing motor.
Caution
∗
Caution during swing motor
installation
1 After installing the swing
motor, be sure to turn on the
power switch for reset (for
initializing the vane
positions).
2 Be sure to engage the gears
on the motor side and panel
sides. (Improper gear
engagement results in faulty
swing operation and
abnormal noise.)
Step Procedure Points
