For FAY71F (A) Si-71A
164 Removal Procedure
4.2 Removal of Slide Panel, Operation Display Cover, and Front Grille
Procedure
Warning Be sure to turn off all power supplies before disassembling work.

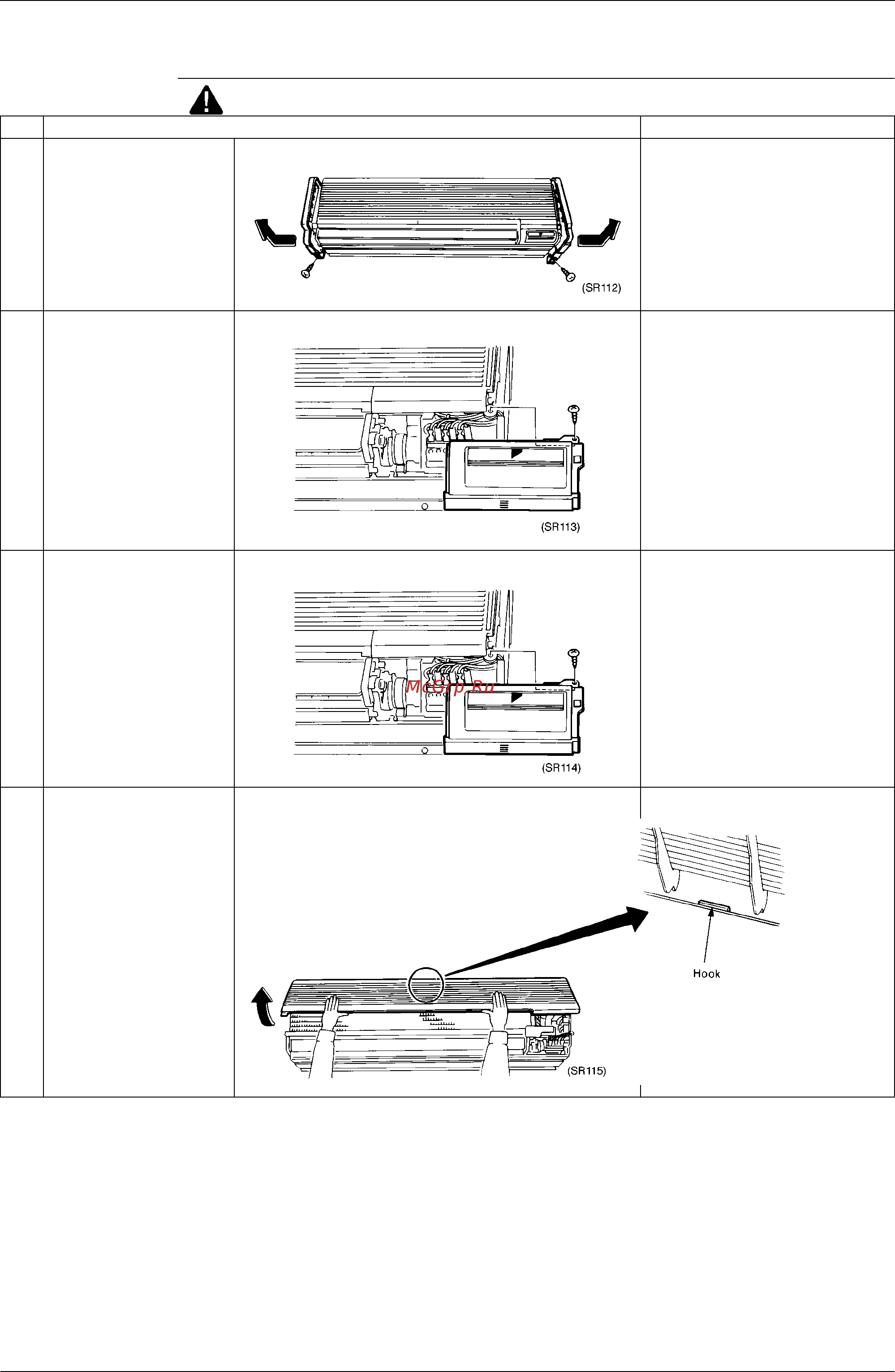

Step Procedure Points
1 Remove the left and right
side panels. (1 white screw
each on left and right)
The wiring diagram is applied to the
right side panel, and troubleshooting
list is applied to the left side panel.
2 Remove the operation
display cover installation
screw and remove the cover
by sliding to the right.
3 Remove the front grille
installation screws (3 M4X
l12 screws with spacers)
4 Disconnect the upper hook
of the front grille and
remove.
