Si-71A For FHYC71K
Removal Procedure 131
1.5 Removal of Decoration Cover
Procedure
Warning Be sure to turn off all power supplies before disassembling work.

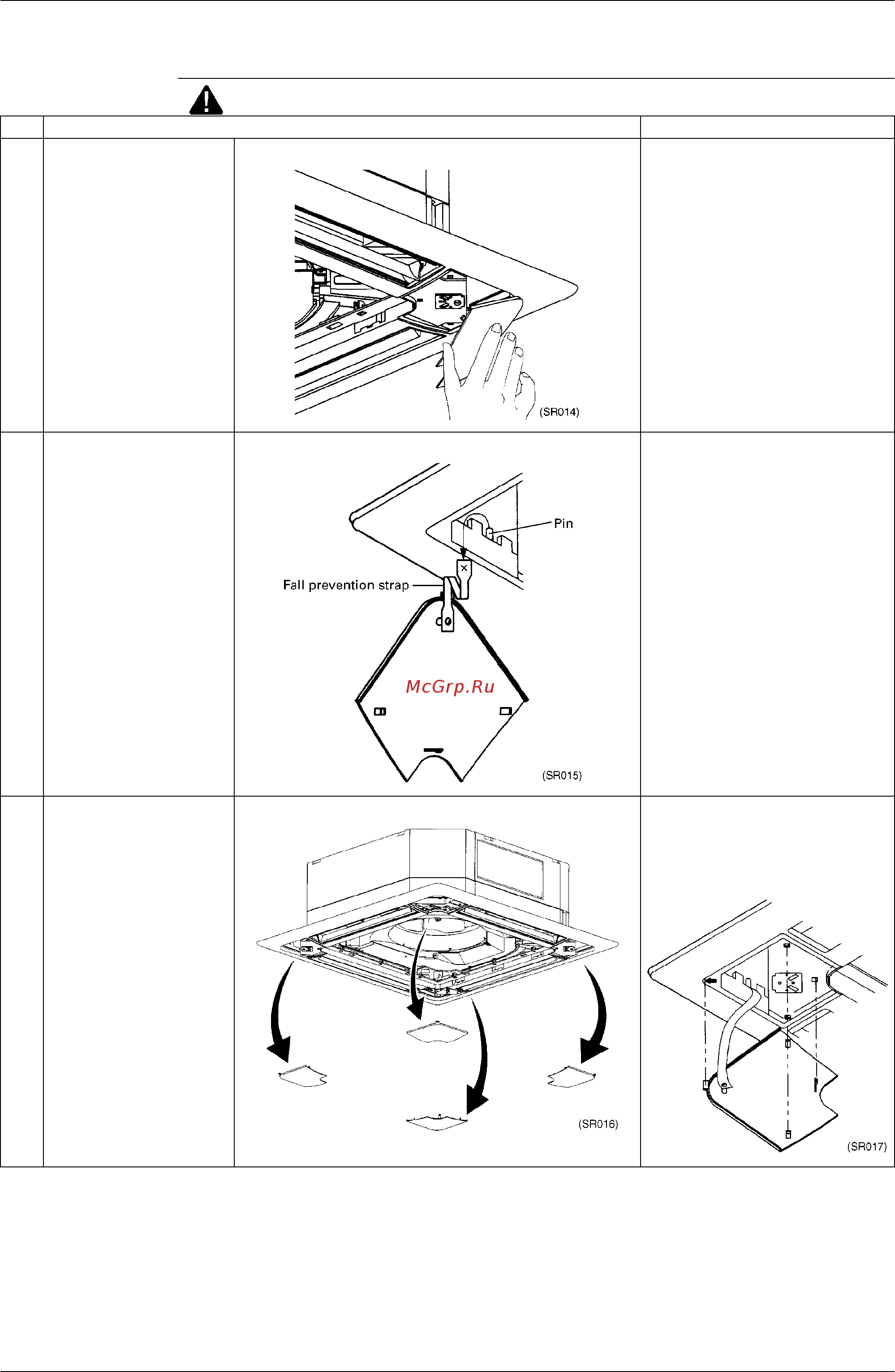

Step Procedure Points
1 To remove the decoration
cover, pull the inside part
(suction grille side) down.
2 Disengage the strap (fall
prevention strap) of the
corner decoration cover from
the pin.
3 There are four corner
decoration covers. They can
be removed by following the
same procedure.
∗
Installation of the corner decoration
cover
Install the corner decoration cover so
that the four protrusions on the cover
are securely inserted into the holes on
the decoration panel section.
