Daikin FHYB45FV1 [144/244] Removal of horizontal vane
![Daikin FVY125LVE [144/244] Removal of horizontal vane](/views2/1764299/page144/bg90.png)
Si-71A For FHYC71K
Removal Procedure 133

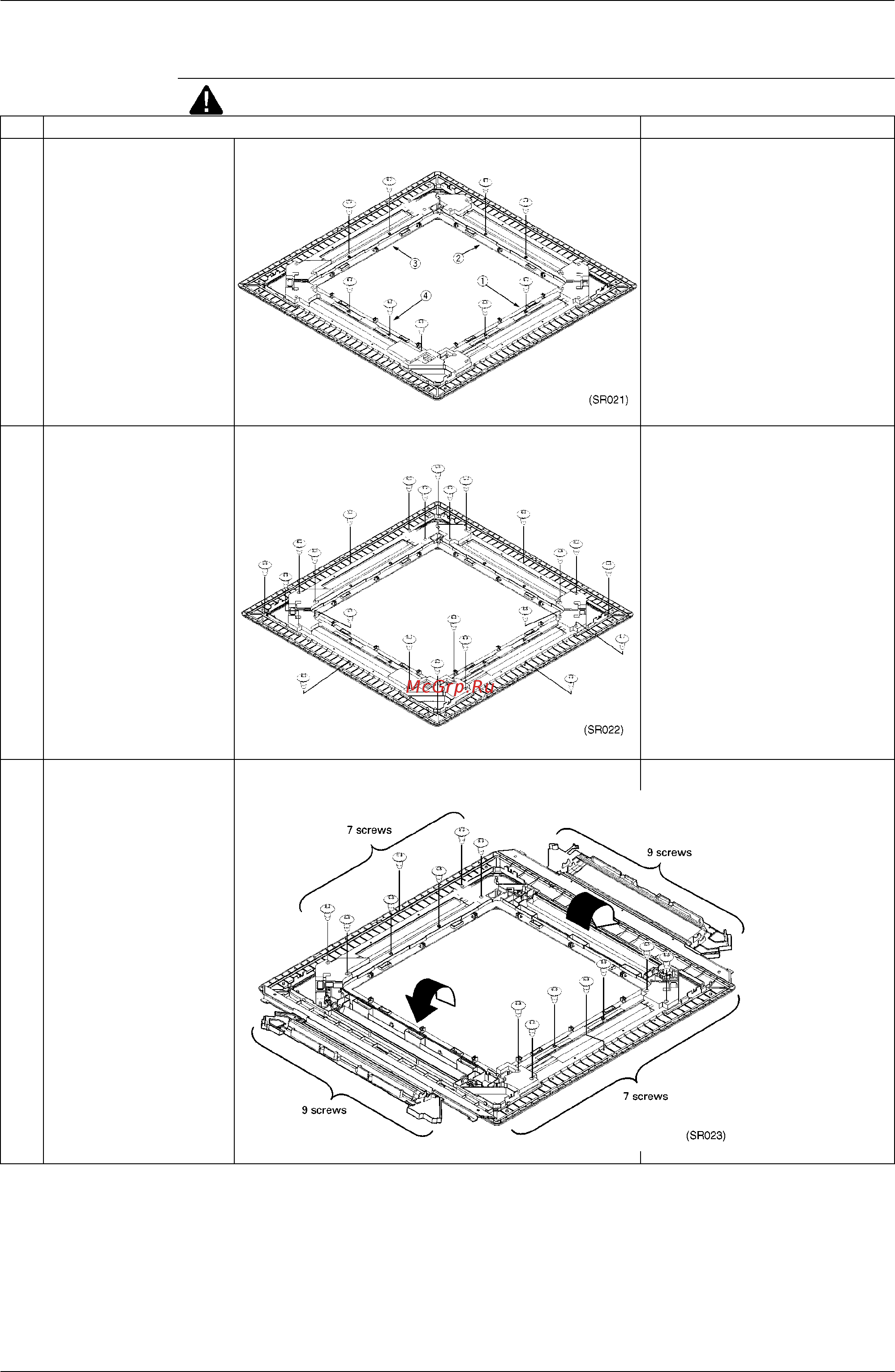

1.7 Removal of Horizontal Vane
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
1 Locate 9 screws on the
decoration panel under the
seal materials.
∗
Remove seal materials in the
following sequence.
d
→
f
,
c
→
e
∗
Number of screws
No. of screws
Seal material
c
: 7 pcs
Seal material
d
: 9 pcs
Seal material
e
: 7 pcs
Seal material
f
: 9 pcs
Total : 32 pcs
2 There are 23 other screws.
3 Remove the 18 screws on
the swing motor side and on
the opposite side to open the
covers.
