For FHY71F Si-71A

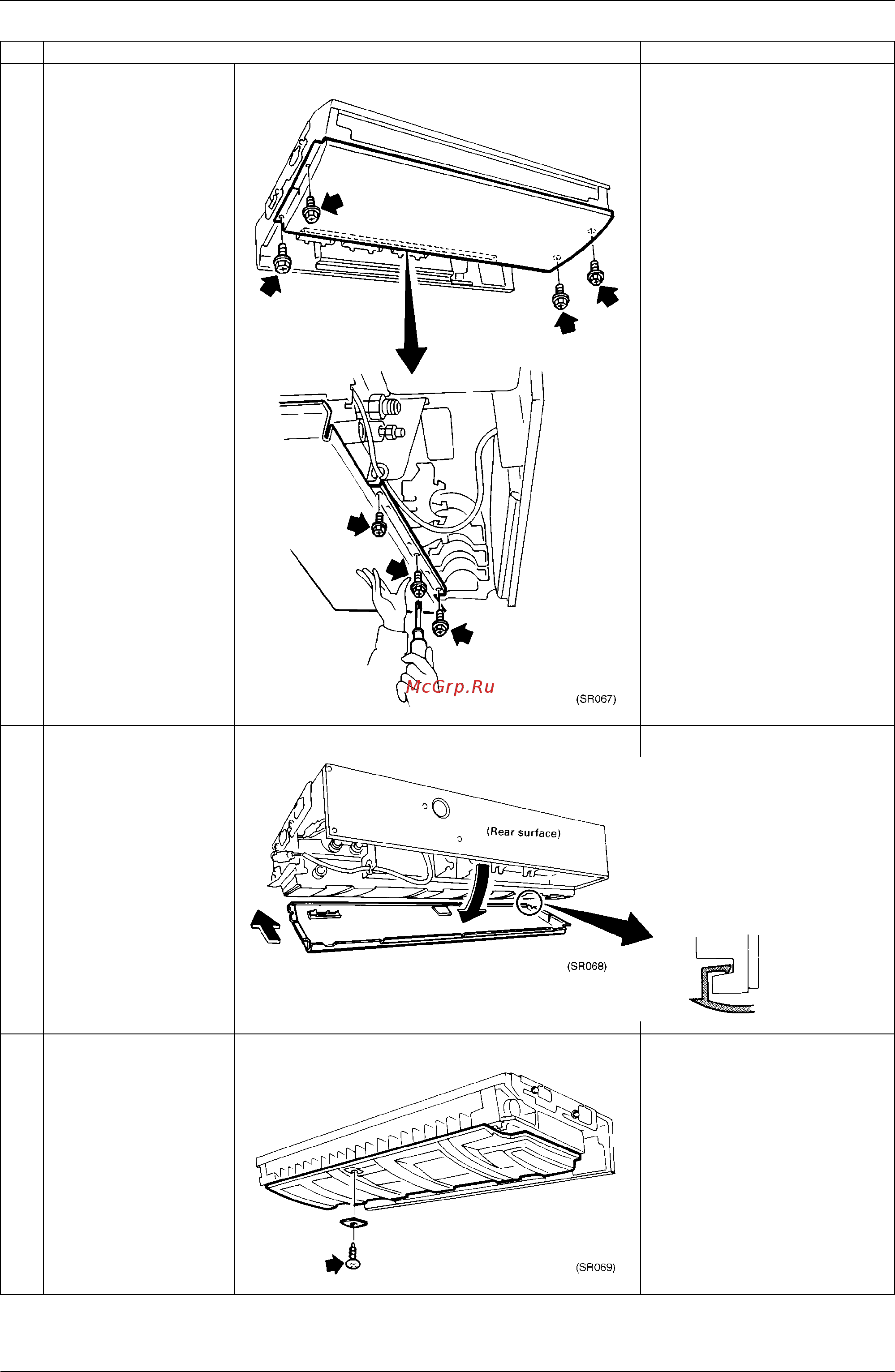

150 Removal Procedure
5 Remove the 5 bottom panel
installation screws (2 each
on the left and right, 3 in the
rear), and remove the
bottom panel.
Remove the rear surface screws (2
each on the left and right), and remove
the center screw while supporting the
bottom panel from underneath.
6 Let down the rear of the
bottom panel, push out
toward the front (removed
from the hooking part) and
remove.
7 Remove the drain pan
retainer (1 screw).
Step Procedure Points
