For R(Y)71K Si-71A
182 Removal Procedure

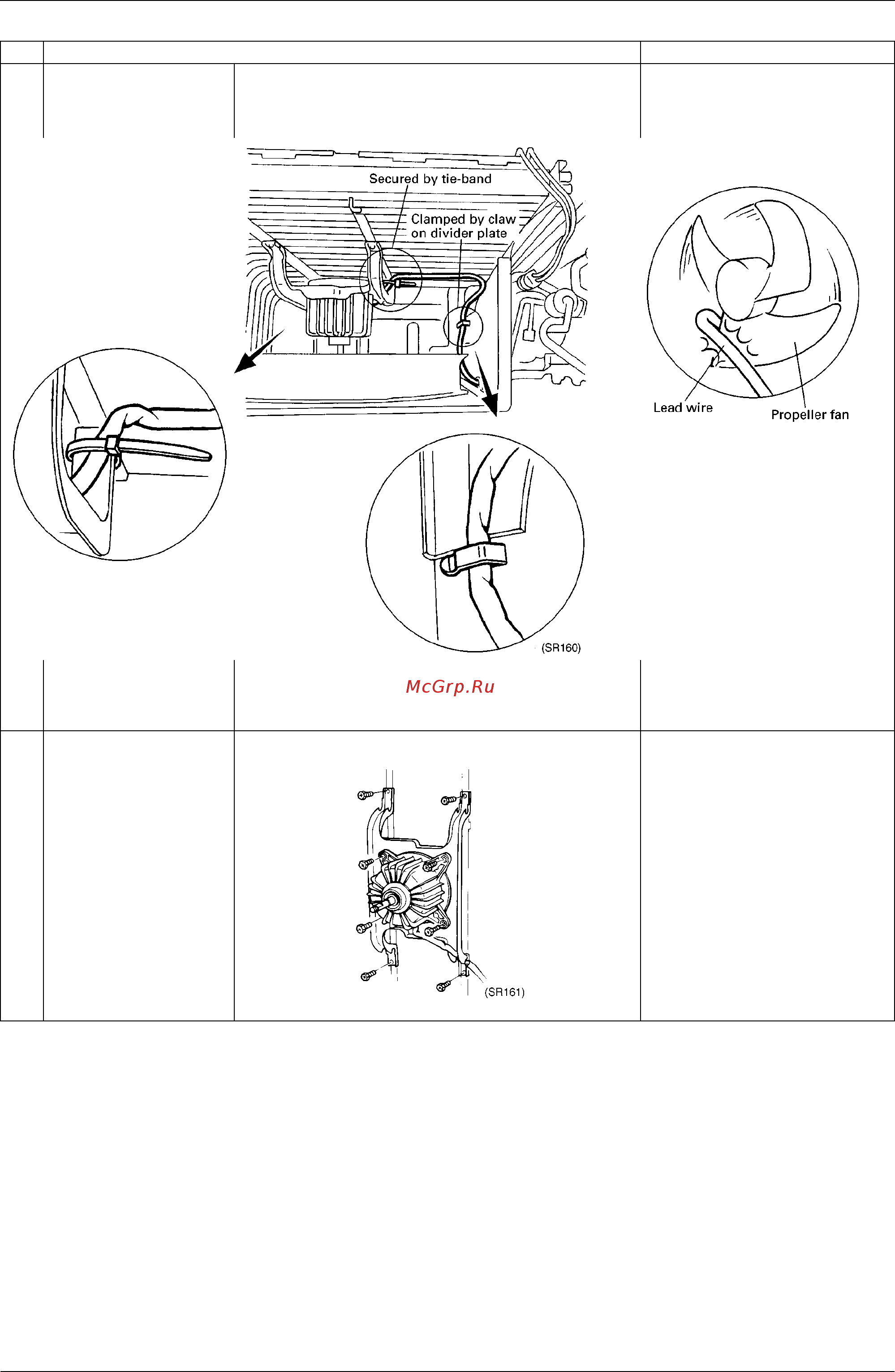

4 Locate the 2 clamps holding
the fan motor lead wire in
place.
∗
4 clamps in RY100 to 140K.
Caution during motor installation
Be sure to secure the motor lead wire
with the clamp. Loose lead wire can be
caught by fan and damaged.
5 Remove the 4 hexagon bolts
fastening the fan motor, and
remove the fan motor.
6 The motor base can be
dismounted by removing the
4 hexagon bolts.
Step Procedure Points
