Chapter 9 VLAN
MES-3728 User’s Guide
103
9.5.4 Configure VLAN Port Settings
Use the VLAN Port Setting screen to configure the static VLAN (IEEE 802.1Q)
settings on a port. See Section 9.1 on page 95 for more information on static
VLAN. Click the VLAN Port Setting link in the VLAN Status screen.

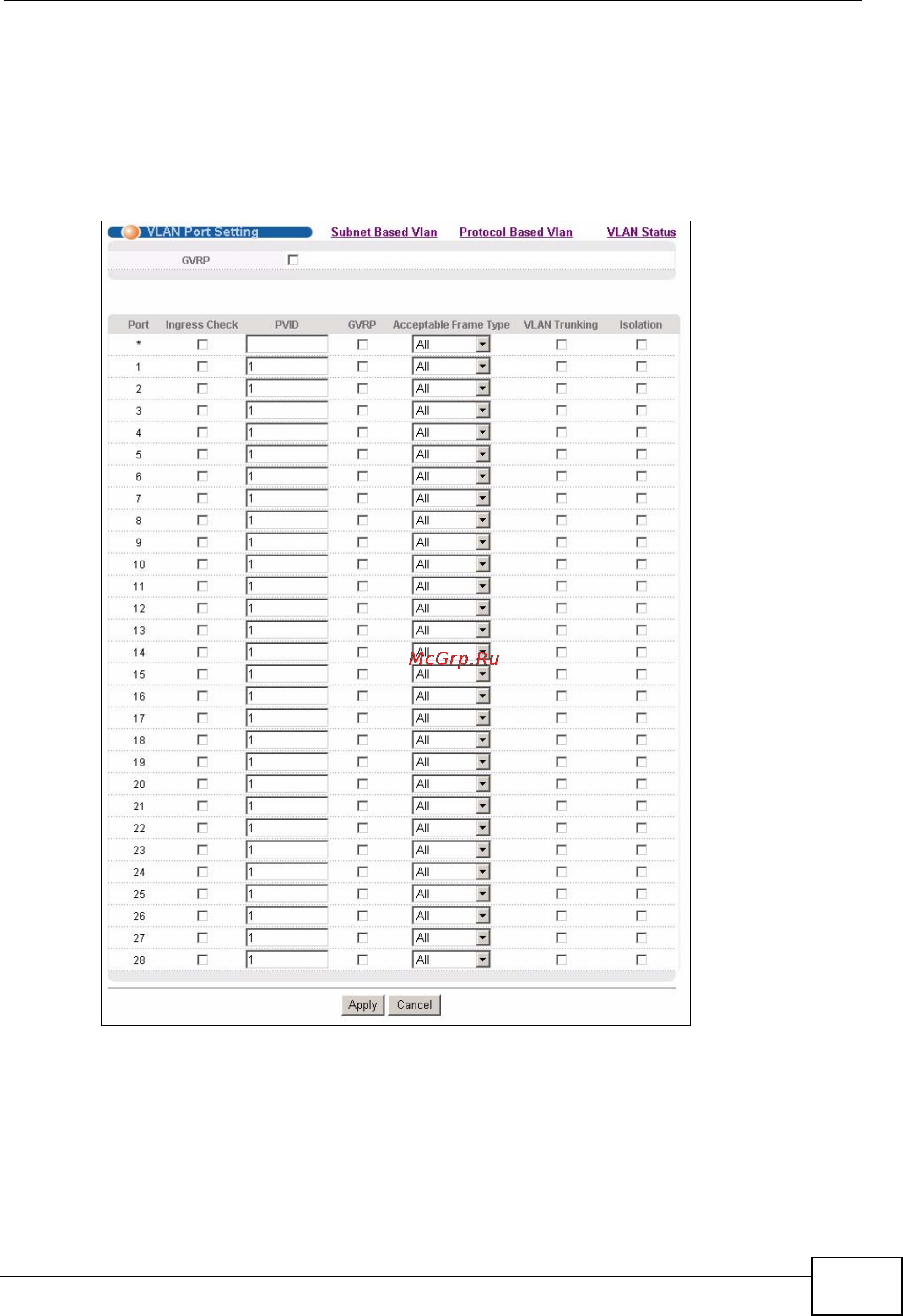

Figure 50 Advanced Application > VLAN > VLAN Port Setting
