Chapter 40 Configure Clone
MES-3728 User’s Guide
348
40.1 Configure Clone
Cloning allows you to copy the basic and advanced settings from a source port to
a destination port or ports. Click Management > Configure Clone to open the
following screen.

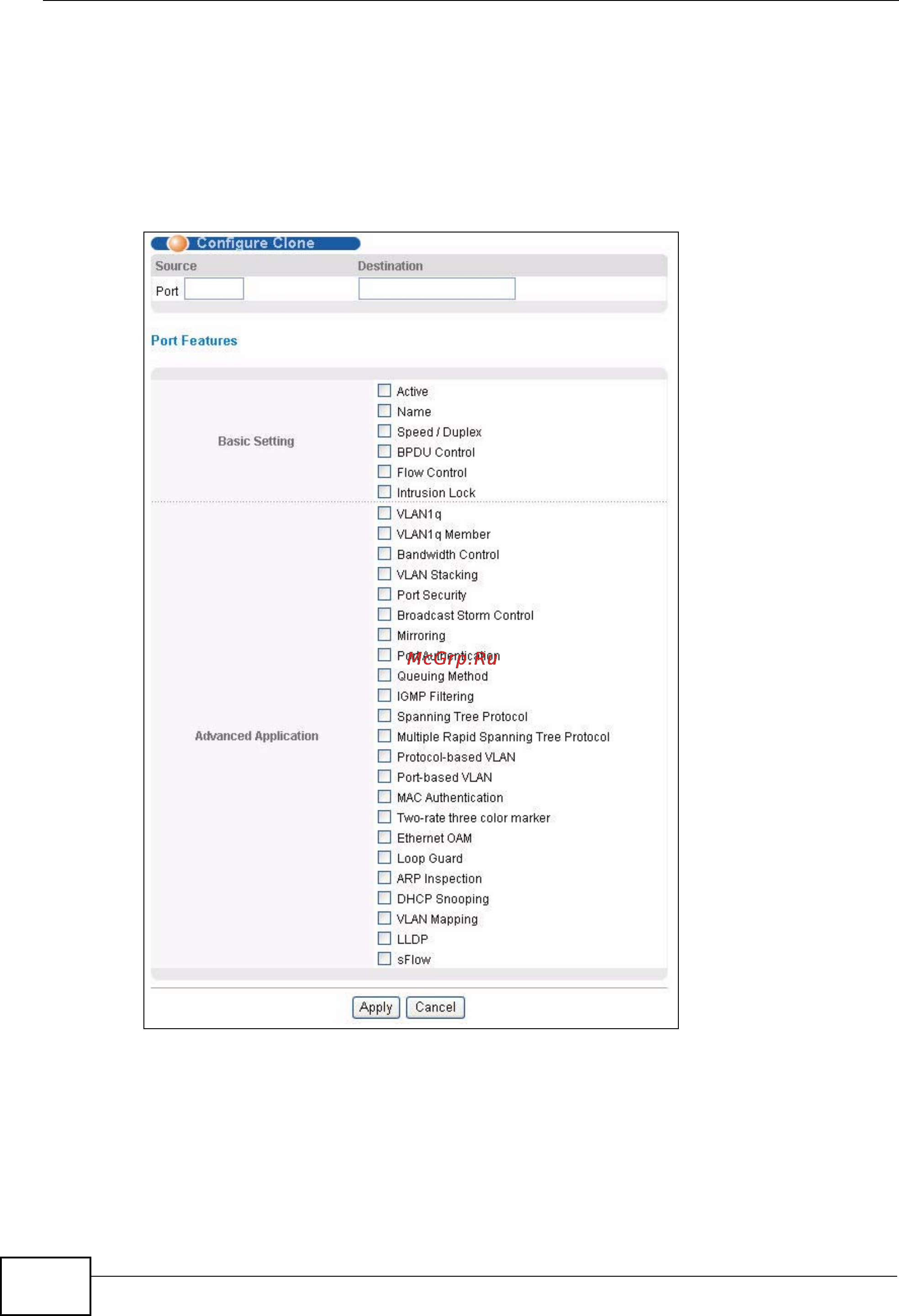

Figure 192 Management > Configure Clone
