MES-3728 User’s Guide
123
CHAPTER 12
Filtering
This chapter discusses MAC address port filtering.
12.1 Configure a Filtering Rule
Filtering means sifting traffic going through the Switch based on the source and/or
destination MAC addresses and VLAN group (ID).
Click Advanced Application > Filtering in the navigation panel to display the
screen as shown next.

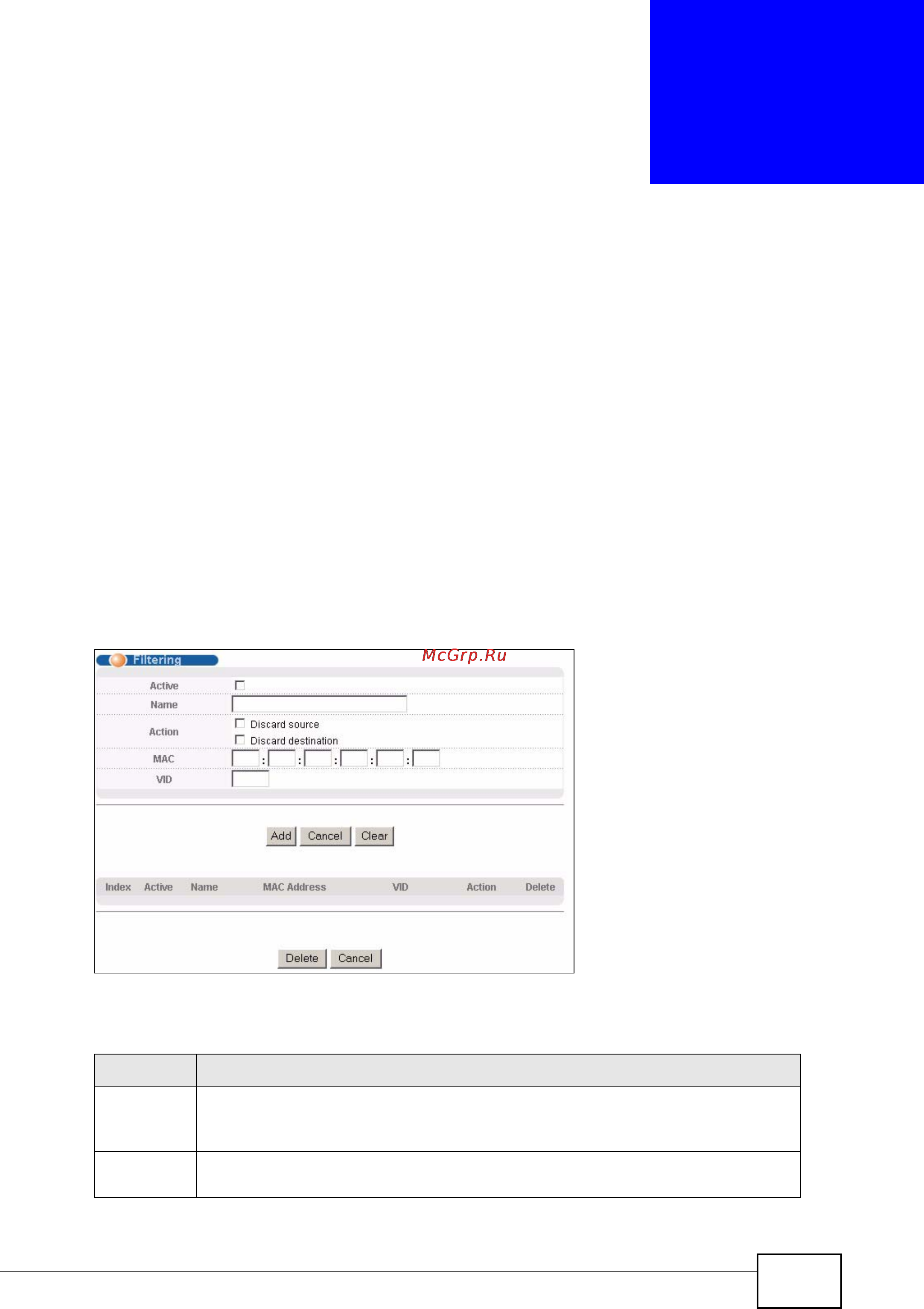

Figure 63 Advanced Application > Filtering
The following table describes the related labels in this screen.
Table 23 Advanced Application > Filtering
LABEL DESCRIPTION
Active Make sure to select this check box to activate your rule. You may
temporarily deactivate a rule without deleting it by deselecting this check
box.
Name Type a descriptive name (up to 32 printable ASCII characters) for this rule.
This is for identification only.
